MLG05W-0400E12501 | Automation light grids

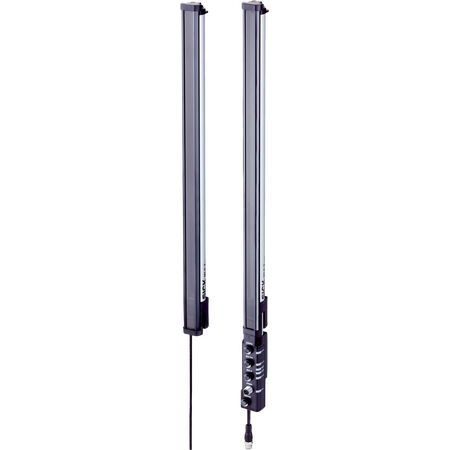

The SICK MLG05W-0400E12501 Automation Light Grid is a high-precision web guiding sensor featuring 120 beams, fast cycle time, and robust IP65/IP67 protection, ideal for industrial automation and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05W-0400E12501 | Automation light grids
Brand: SICK
SKU: 1119814
Alternatively Known As: Automation light grid, web guiding sensor, industrial light curtain, SICK light grid sensor
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Number of beams: 120
- Measuring field width (connection side): 595 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 61 mA
- Power consumption receiver: 144 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 24.9 ms
- Digital output: 1 (Q1)
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- Ambient light immunity: 100,000 lx
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 679mm x 31mm x 34mm
- Weight: 1.46 kg
Key Features
- Web guiding device version with sender/receiver sensor principle
- 120 beams with 5 mm beam separation and 0.1 mm resolution
- Cycle time of 32 µs per beam for fast response
- Repeatability of 6 µm and accuracy of ±0.3 mm
- LED infrared light source with 850 nm wavelength
- Operating range of 2.5 m with maximum range of 3.5 m
- IP65 and IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial automation sensors and electrical safety standards.
Applications
- Web guiding in industrial automation
- Object detection and measurement in manufacturing processes
- Quality control and positioning in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MLG05W-0400E12501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and web guiding applications.
