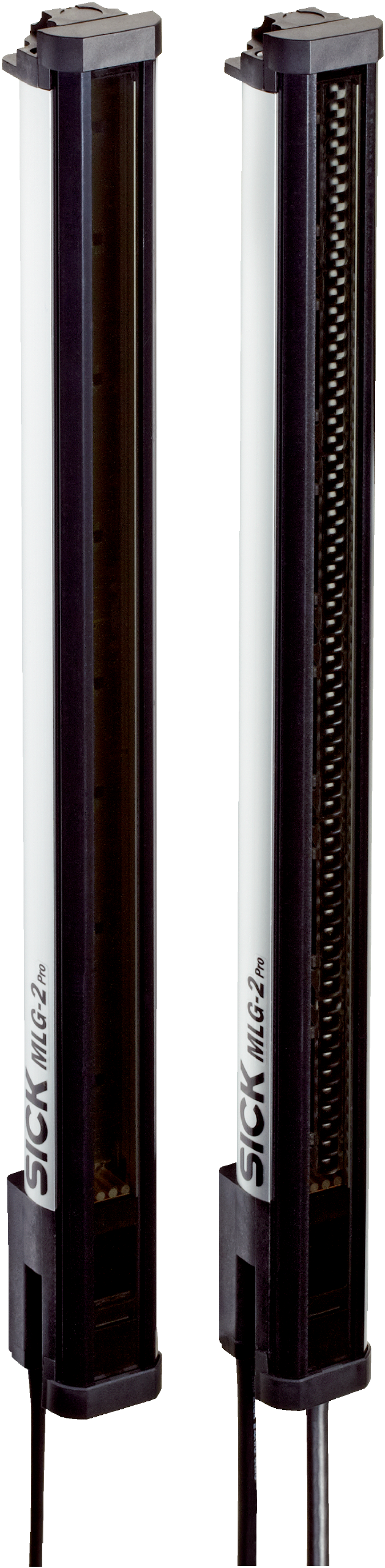

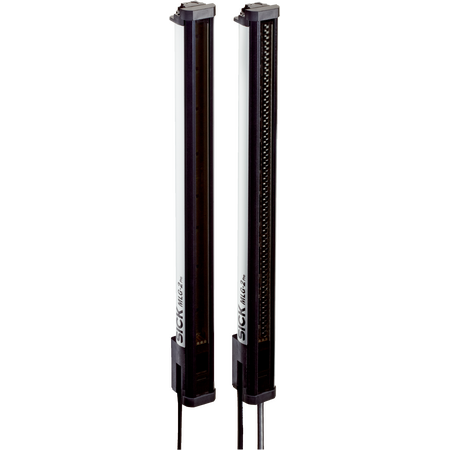

MLG10A-0590R10501 | Automation light grids
The SICK MLG10A-0590R10501 Automation Light Grid offers advanced object detection and measurement capabilities with extended functionality, robust design, and high accuracy for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG10A-0590R10501 | Automation light grids
Brand: SICK
SKU: 1216430
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Industrial Light Barrier
Technical Specifications
- Dimensions (H x L x W): 590mm x 100mm x 50mm
- Weight: 1.45 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 60 beams
- Minimum detectable object size of 10 mm
- Beam separation of 10 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67 for robust protection
- Aluminum housing with PMMA front screen
- IO-Link V1.1 interface with 230.4 kbit/s data transmission rate
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition in automation processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing and robust IP65/IP67 protection reduce waste and extend product life
- Energy-efficient LED infrared light source minimizes power consumption
- High measurement accuracy reduces errors and material waste in automation processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG10A-0590R10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
