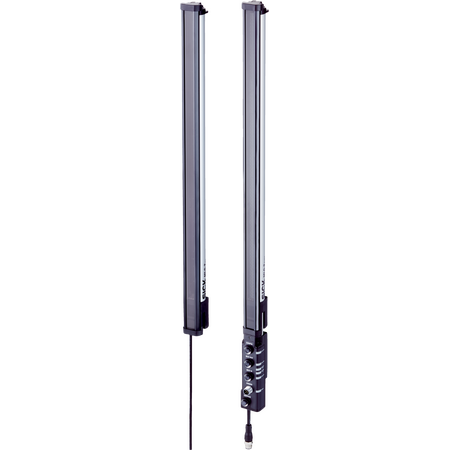

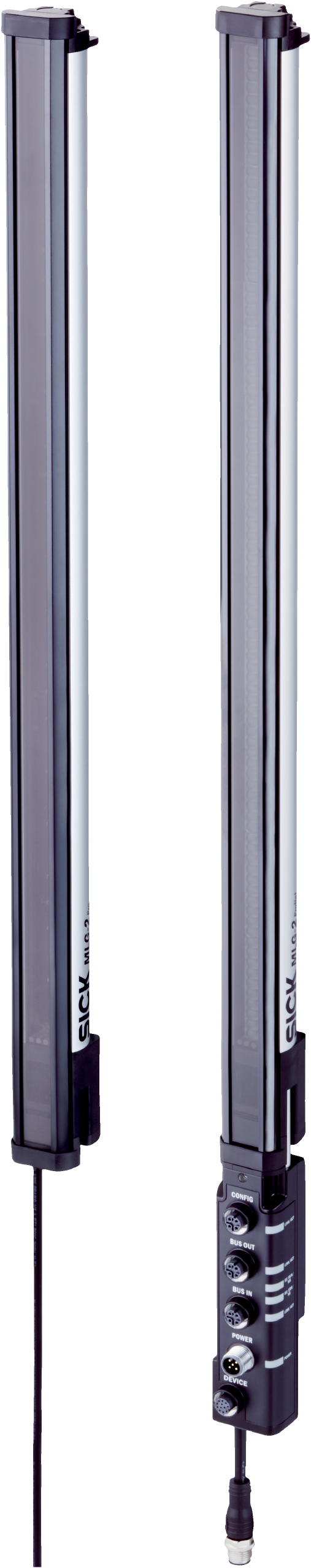

MLG10N-0740N10501 | Automation light grids
The SICK MLG10N-0740N10501 Automation Light Grid features ProNet extended functionality with 75 beams for precise object detection, recognition, and measurement in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG10N-0740N10501 | Automation light grids
Brand: SICK
SKU: 1217070
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light grid sensor, Object detection light grid, SICK light grid sensor
Technical Specifications
- Dimensions (H x L x W): 740mm x 50mm x 1000mm
- Weight: 1.75 kg
Key Features
- ProNet extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size of 10 mm
- 75 beams with 10 mm beam separation
- Cable synchronization
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Housing made of aluminum with PMMA front screen
- Enclosure rating IP65 and IP67
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Operating temperature range from -30°C to +55°C
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and width measurement
- Object recognition
- Height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing and robust design reduce waste and replacement frequency
- Energy-efficient LED infrared light source minimizes power consumption
- Dust- and sunlight-resistant operation enhances longevity and reduces maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG10N-0740N10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection and measurement.
