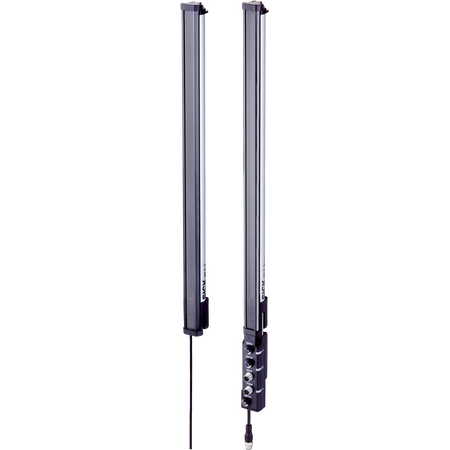

MLG10N-1340C10501 Automation light grids

BRAND: SICK
SKU: 1128004
$12,385.70 List price: $15,567.60
+ −
30 Days Return Electricians Unlock Trade Access
The SICK MLG10N-1340C10501 Automation Light Grid is a high-precision sensor system designed for object detection, recognition

Product Name/Title: MLG10N-1340C10501 | Automation light grids

Brand: SICK

SKU: 1128004

Alternatively Known As: Automation Light Grid, Safety Light Curtain, Industrial Light Grid Sensor, Object Detection Light Grid

Technical Specifications
  • Dimensions (H x L x W): 150mm x 100mm x 1000mm
  • Weight: 3 kg
Key Features
  • ProNet device version with extended functionality including fieldbus
  • Sender/receiver sensor principle
  • 135 beams with 10 mm beam separation
  • Detection height of 1,340 mm
  • Operating modes: Standard, Transparent, Dust- and sunlight-resistant
  • Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
  • LED infrared light source with 850 nm wavelength
  • Push-pull PNP/NPN switching output
  • Housing made of aluminum with IP65 and IP67 enclosure rating
  • LED display
  • Cable synchronization type
  • Fieldbus module included
  • Connection via M12 plugs (5-pin and 12-pin)
  • Circuit protection with reverse polarity, short-circuit protection, and interference pulse suppression
  • Shock resistance up to 15 g and vibration resistance up to 5 g
  • Ambient operating temperature from -30°C to +55°C
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
  • Switching output
  • Object detection/object width
  • Object recognition
  • Height classification
  • Hole detection/hole size
  • Outside/inside dimension
  • Object position
  • Hole position
  • Zone definition
  • Object height measurement
  • Measurement of the outside dimension
  • Measurement of the inside dimension
  • Measurement of the object position
  • Measurement of the hole position
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Dust- and sunlight-resistant design enhances durability and reduces waste
  • Energy-efficient LED infrared light source
  • Long operating life reduces replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK MLG10N-1340C10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
