MLG25A-0575R10501 Automation light grids

BRAND: SICK
SKU: 1213537
$3,945.10 List price: $4,958.60
+ −
30 Days Return Electricians Unlock Trade Access

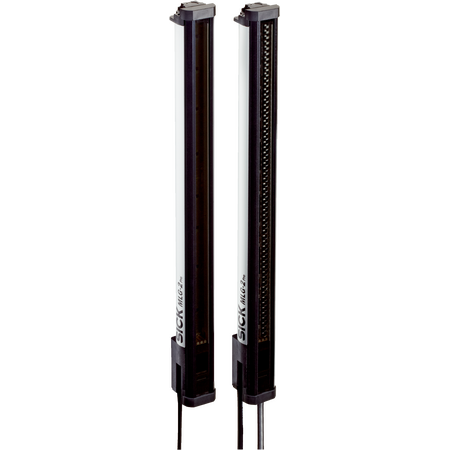

The SICK MLG25A-0575R10501 Automation Light Grid offers advanced object detection and measurement capabilities with extended functionality, robust design

Product Name/Title: MLG25A-0575R10501 | Automation light grids

Brand: SICK

SKU: 1213537

Alternatively Known As: Automation light grid, Safety light curtain, Object detection sensor, Industrial light grid sensor

Technical Specifications
  • Dimensions (H x L x W): 600mm x 100mm x 600mm
  • Weight: 1.45 kg
Key Features
  • Pro - Extended functionality device version
  • Sender/receiver sensor principle with 24 beams
  • Minimum detectable object size of 25 mm
  • Beam separation of 25 mm and detection height of 575 mm
  • Cable synchronization type
  • Operating modes include standard, transparent, dust- and sunlight-resistant
  • Functions include cross beam, beam blanking, and high measurement accuracy
  • LED infrared light source with 850 nm wavelength
  • Push-pull PNP/NPN switching output
  • IP65 and IP67 rated enclosure for robust protection
  • Aluminum housing with PMMA front screen
  • IO-Link V1.1 interface with 230.4 kbit/s data transmission rate
  • Short initialization time under 1 second
  • Shock resistance up to 15 g and vibration resistance up to 5 g
  • Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
  • Object detection and object width measurement
  • Object recognition and height classification
  • Hole detection and hole size measurement
  • Outside and inside dimension measurement
  • Object and hole position measurement
  • Zone definition in automation processes
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable aluminum housing and robust IP65/IP67 protection reduce replacement frequency and waste
  • Energy-efficient LED infrared light source minimizes power consumption
  • Supports precise object detection reducing material waste in automation
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK MLG25A-0575R10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
