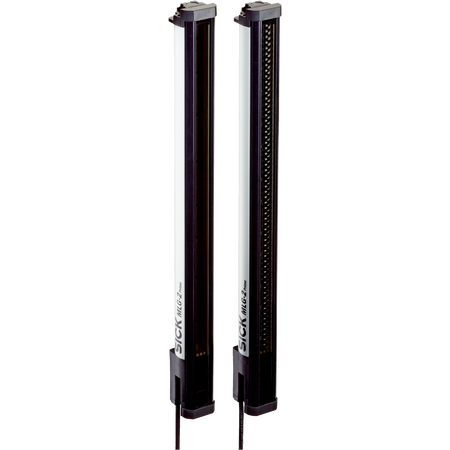

MLG25S-0875A10501 | Automation light grids

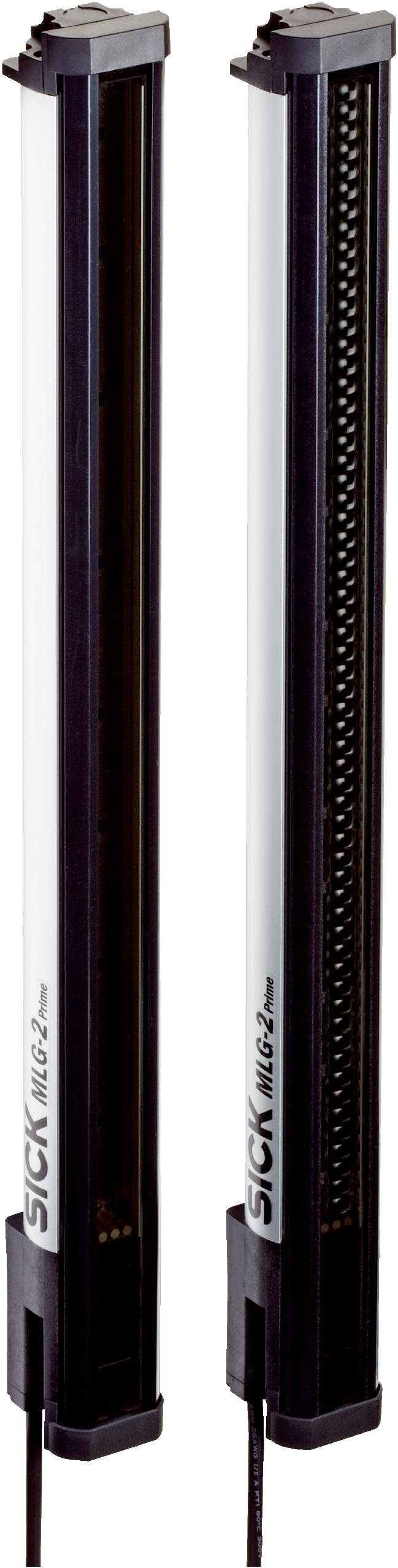

The SICK MLG25S-0875A10501 Automation Light Grid is a high-performance sensor system designed for precise object detection, recognition, and height classification with robust IP65/IP67 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG25S-0875A10501 | Automation light grids
Brand: SICK
SKU: 1215502
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Height Measurement Sensor
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 29 mm
- Number of beams: 36
- Beam separation: 25 mm
- Detection height: 875 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption: Sender 56.8 mA, Receiver 127.2 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Enclosure rating: IP65, IP67
- Response time: 6.1 ms
- Operating range: 5 m
- Maximum range: 7 m
- Operating temperature: -30°C to +55°C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- Data interfaces: IO-Link V1.1, Analog current output 4-20 mA
- Dimensions (H x L x W): 900mm x 50mm x 50mm
- Weight: 2.05 kg
Key Features
- Prime - Standard functionality device version
- Sender/receiver sensor principle
- Minimum detectable object size of 29 mm
- 36 beams with 25 mm beam separation
- Optical synchronization
- Height detection of 875 mm
- Cross beam and beam blanking functions
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- Reverse polarity and short-circuit protected
- LED display for status indication
- IO-Link V1.1 and analog current outputs
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Professional installation by a qualified technician or engineer is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection
- Object recognition
- Height classification
- Object height measurement
- Switching output
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption.
- Durable aluminum housing extends product lifespan, reducing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG25S-0875A10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
