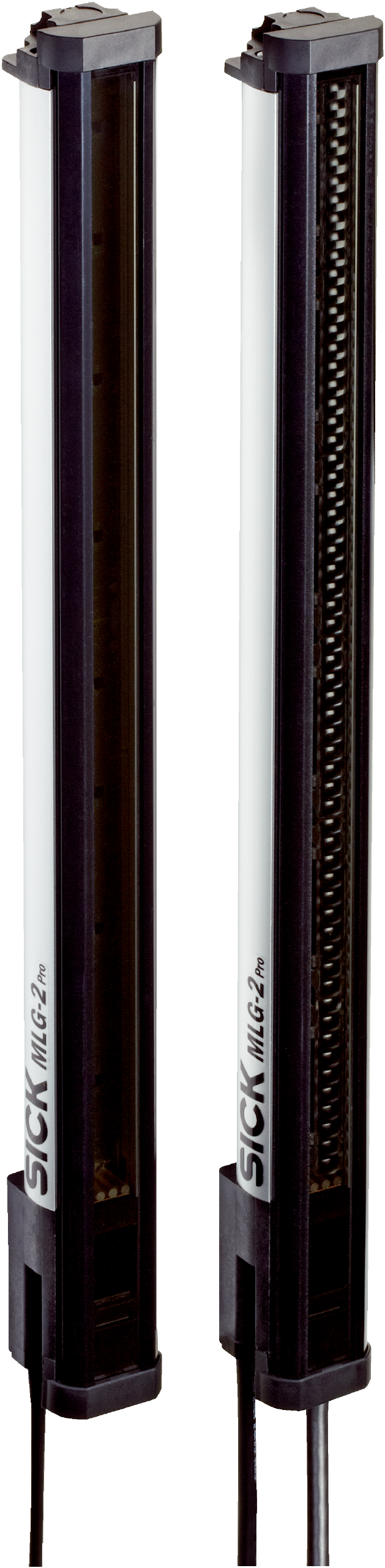

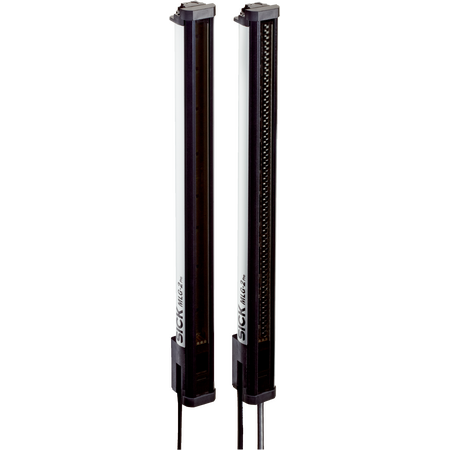

MLG50A-1450R11401 | Automation light grids
The SICK MLG50A-1450R11401 Automation Light Grid offers advanced object detection and measurement capabilities with high accuracy and robust design, suitable for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG50A-1450R11401 | Automation light grids
Brand: SICK
SKU: 1153486
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Industrial Light Grid Sensor
Technical Specifications
- Dimensions (H x L x W): 1450mm x 50mm x 50mm
- Weight: 3.25 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle
- Minimum detectable object size of 50 mm
- 30 beams with 50 mm beam separation
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- LED display
- Circuit protection with reverse polarity and short-circuit protection
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Ambient operating temperature from -30°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition
- Height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Energy-efficient LED infrared light source
- Long operating life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MLG50A-1450R11401 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
