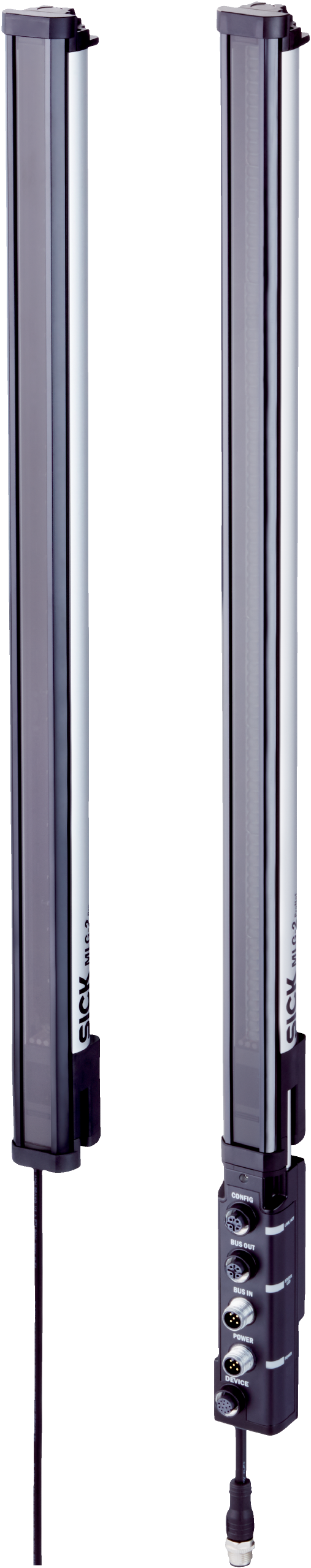

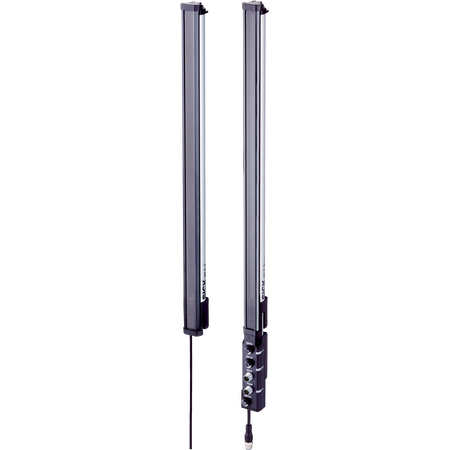

MLG50N-3100P10801 | Automation light grids
The SICK MLG50N-3100P10801 Automation Light Grid offers high-precision object detection and measurement with 63 beams, robust IP65/IP67 protection, and advanced fieldbus communication for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG50N-3100P10801 | Automation light grids
Brand: SICK
SKU: 1220431
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Industrial Light Grid Sensor
Technical Specifications
- Dimensions (H x L x W): 100mm x 400mm x 300mm
- Weight: 6.5 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle with 63 beams
- Minimum detectable object size of 50 mm
- Detection height of 3,100 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Enclosure rating IP65 and IP67 for robust protection
- Push-pull PNP/NPN switching output
- Aluminum housing with PMMA front screen
- Fast initialization time under 1 second
- Fieldbus module included with quick fix brackets
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Switching output for object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Measurement of outside and inside dimensions
- Object position and hole position detection
- Zone definition for safety and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Dust- and sunlight-resistant design reduces maintenance and extends product life
- Energy-efficient LED infrared light source minimizes power consumption
- Robust IP65/IP67 enclosure protects against environmental damage, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK MLG50N-3100P10801 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
