MLG50S-0700A10501 | Automation light grids

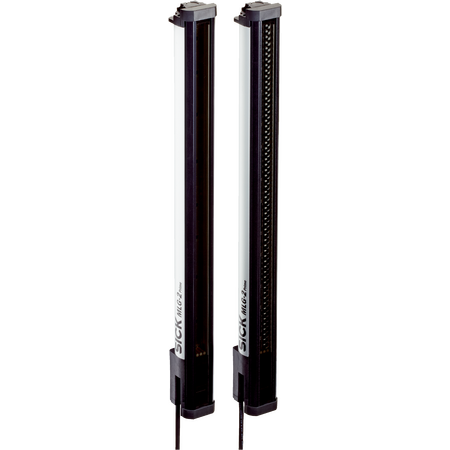

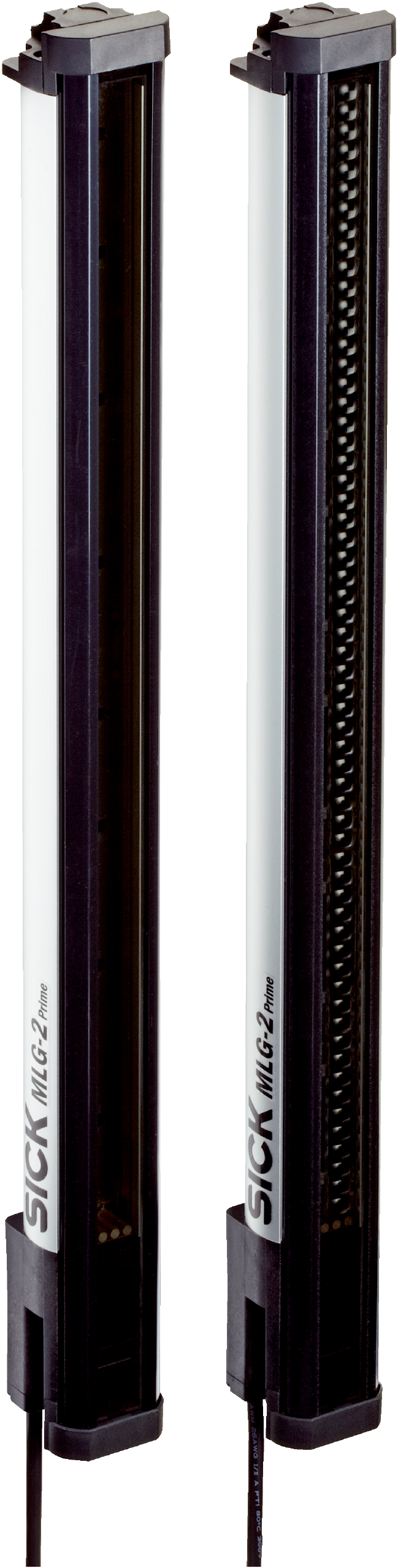

The SICK MLG50S-0700A10501 Automation Light Grid is a high-performance sensor system designed for object detection, recognition, and height classification with robust features and industrial-grade protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG50S-0700A10501 | Automation light grids
Brand: SICK
SKU: 1215351
Alternatively Known As: Automation Light Grid, Light Curtain Sensor, Object Detection Grid, Height Measurement Light Grid
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 54 mm
- Number of beams: 15
- Beam separation: 50 mm
- Detection height: 700 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 55.75 mA
- Power consumption receiver: 123 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Housing material: Aluminum
- Enclosure rating: IP65, IP67
- Protection class: III
- Maximum range: 7 m
- Minimum range: ≥ 0.2 m
- Operating range: 5 m
- Response time: 6 ms
- IO-Link V1.1 communication with 38.4 kbit/s data rate
- Analog output current: 4 mA to 20 mA
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Dimensions (H x L x W): 700mm x 40mm x 50mm
- Weight: 1.75 kg
Key Features
- Prime - Standard functionality device version
- Sender/receiver sensor principle
- Minimum detectable object size of 54 mm
- 15 beams with 50 mm beam separation
- Optical synchronization
- Detection height of 700 mm
- Cross beam and beam blanking functions
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- LED display
- Circuit protection including reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +55°C
- Shock resistance up to 15 g and vibration resistance up to 5 g
- IO-Link V1.1 and analog current outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection
- Object recognition
- Height classification
- Object height measurement
- Switching output
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption.
- Durable aluminum housing extends product life and reduces waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG50S-0700A10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
