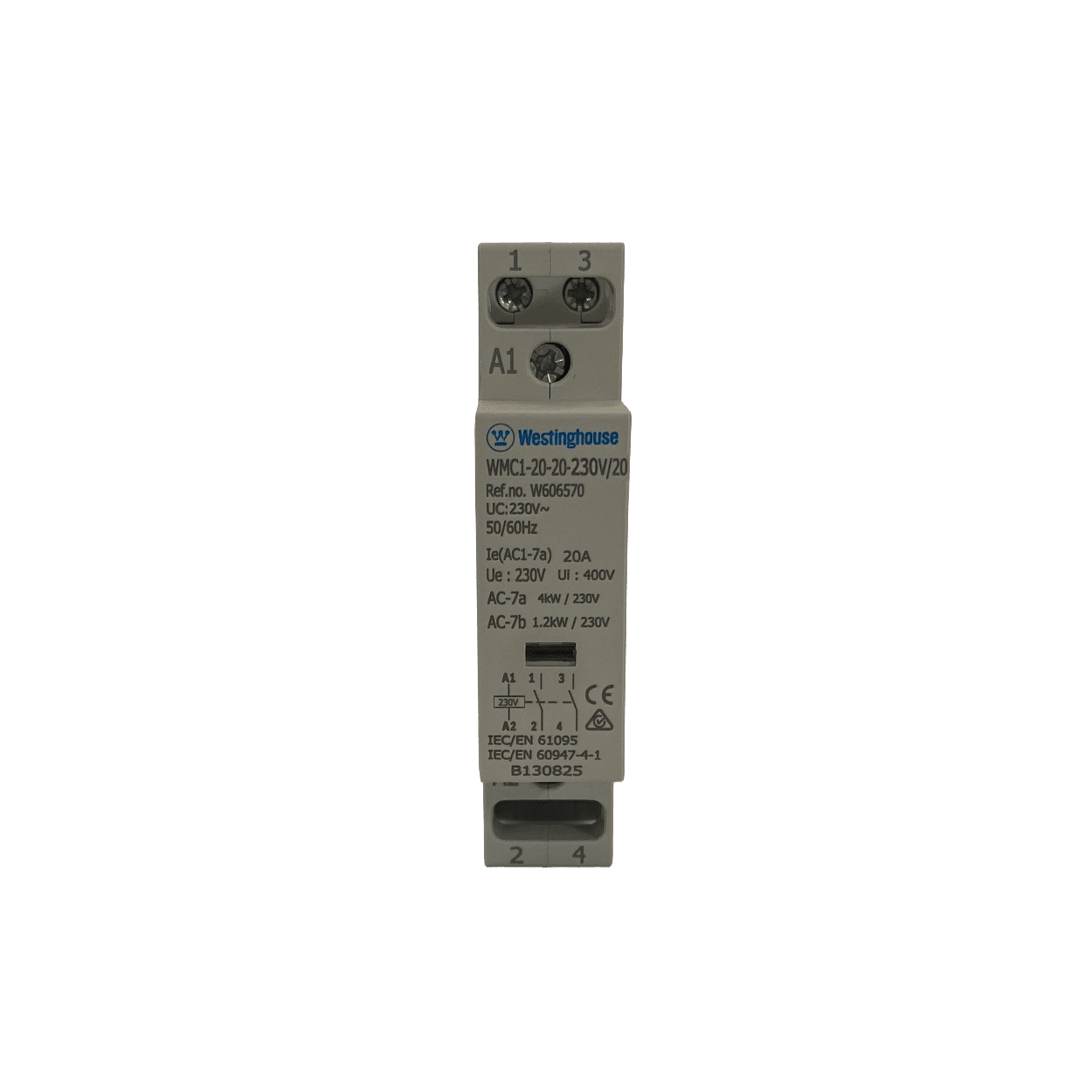

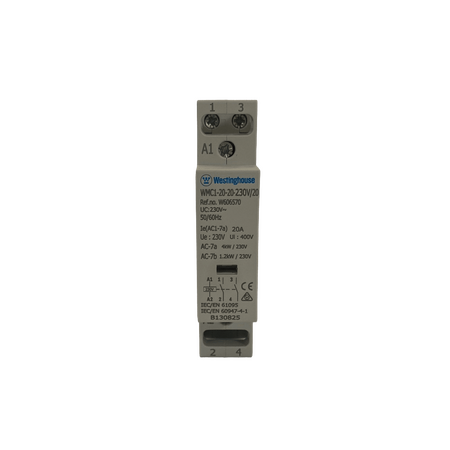

Modular Contactor 18mm 20A 230VAC 2NO Eltech

BRAND: Eltech
SKU: WMC120230V20
$54.80 List price: $73.10
+ −
30 Days Return Electricians Unlock Trade Access
Eltech modular contactor features 20A rating, 230VAC coil and 2NO contacts in 18mm module. Ideal for switchboard load switching.

Alternatively Known As: Eltech WMC1P‑20‑230‑20 Modular Contactor

Technical Specifications
  • Rated Current: 20 A
  • Coil Voltage: 230 VAC
  • Contacts: 2 × Normally Open (NO)
  • Module Width: 18 mm
  • Standards: IEC 61095, IEC 60947‑4‑1
  • Dimensions (H x L x W): 80mm x 60mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Compact 18 mm DIN‑mount modular profile
  • Low heat dissipation for enhanced endurance
  • Ideal for switching lighting, heating and inductive loads
  • DIN‑rail mounting optimised for switchboard applications
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with AS/NZS 3000 electrical wiring standards.
Applications
  • Switchboard load switching
  • Lighting, heating and general control circuits
  • Small motor and inductive load control
Standards & Compliance
  • IEC 61095
  • IEC 60947‑4‑1
Environmental Benefits
  • Compact DIN modular design saves enclosure space and material
  • Low heat dissipation improves energy efficiency and extends service life
Warranty Information

Subject to Eltech’s general 7‑Year Warranty for applicable products when purchased and installed by a licensed electrician and installed per manufacturer instructions. See Eltech Terms & Conditions clause 7.1. ([eltech.com.au](https://eltech.com.au/terms-conditions/?utm_source=openai))

Available Now

Available through authorised Australian wholesalers and distributors.
