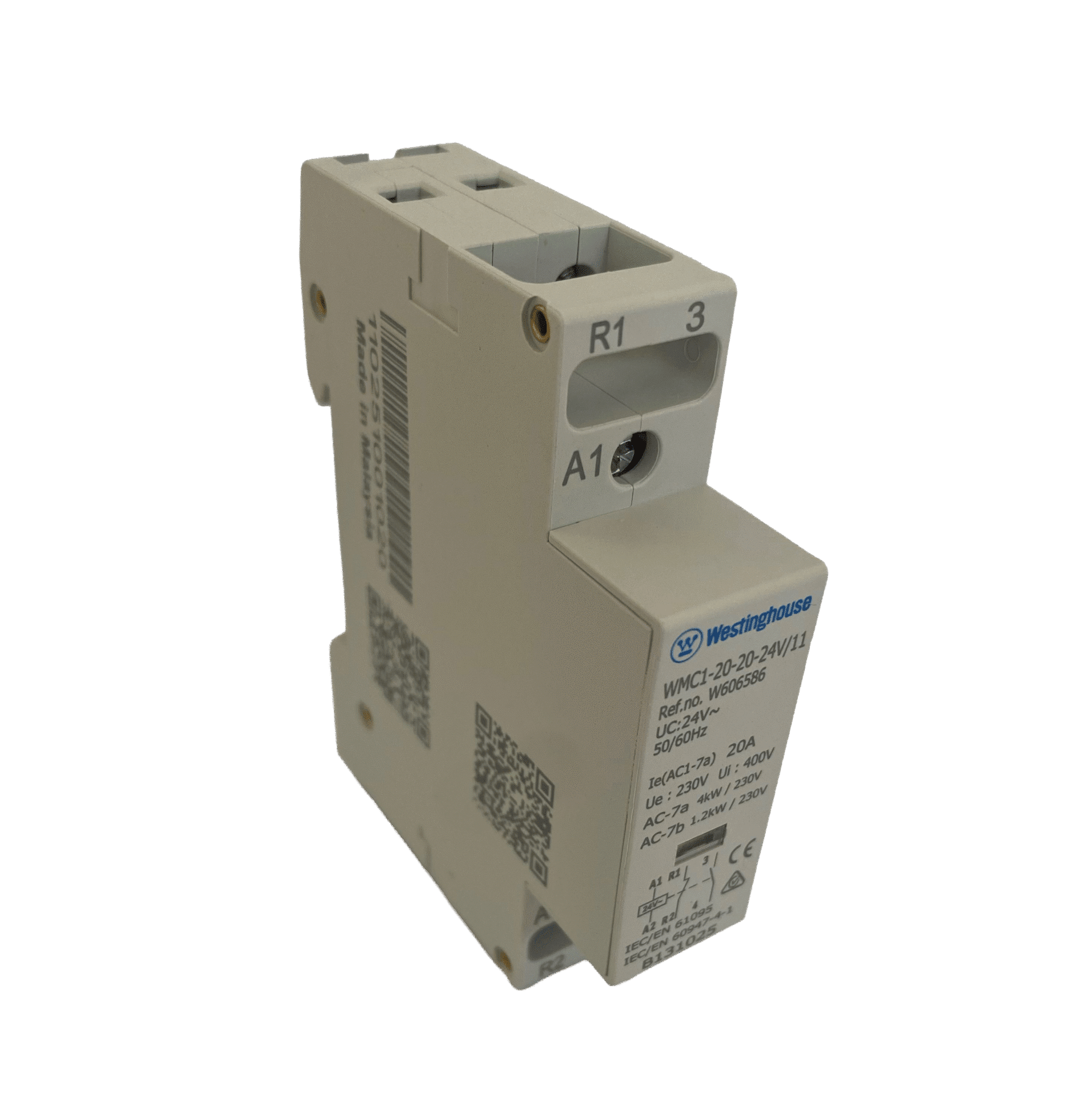

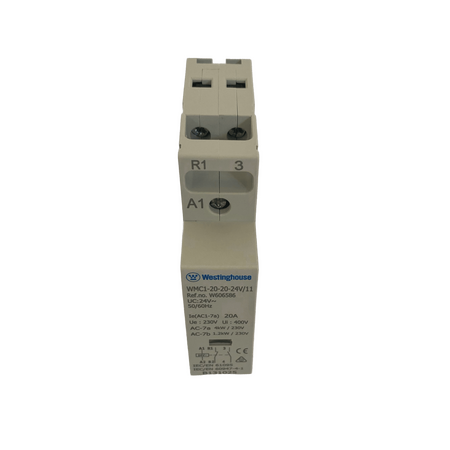

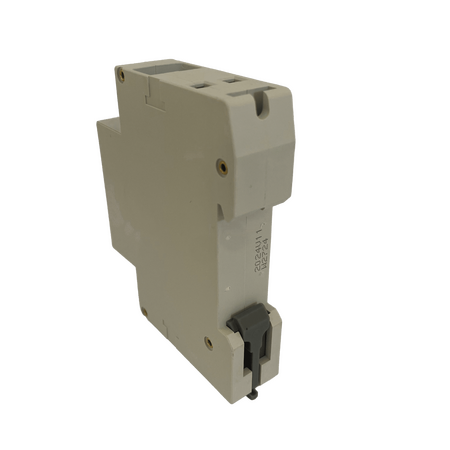

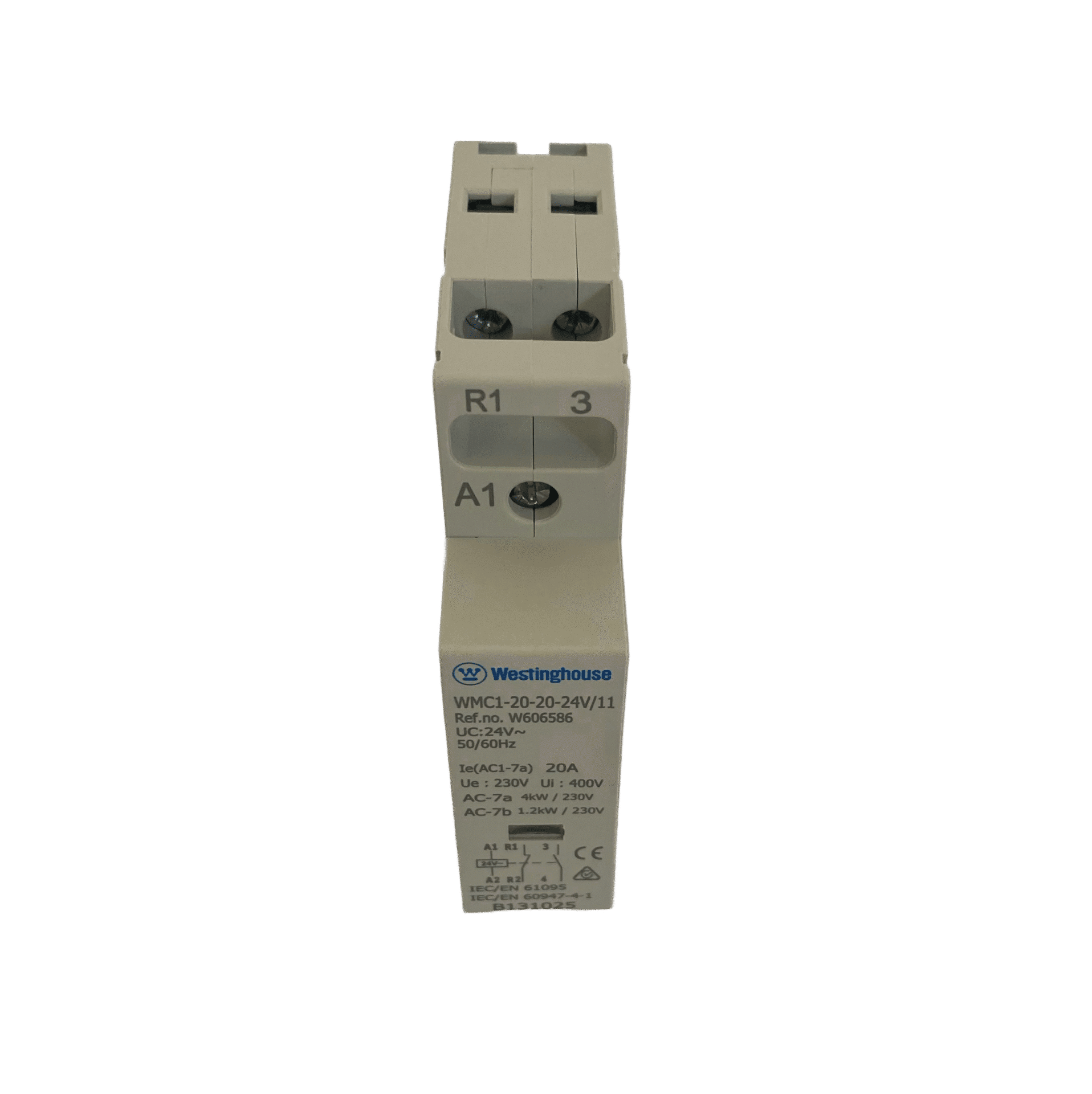

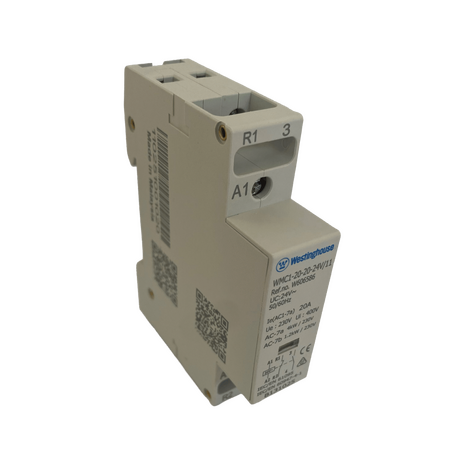

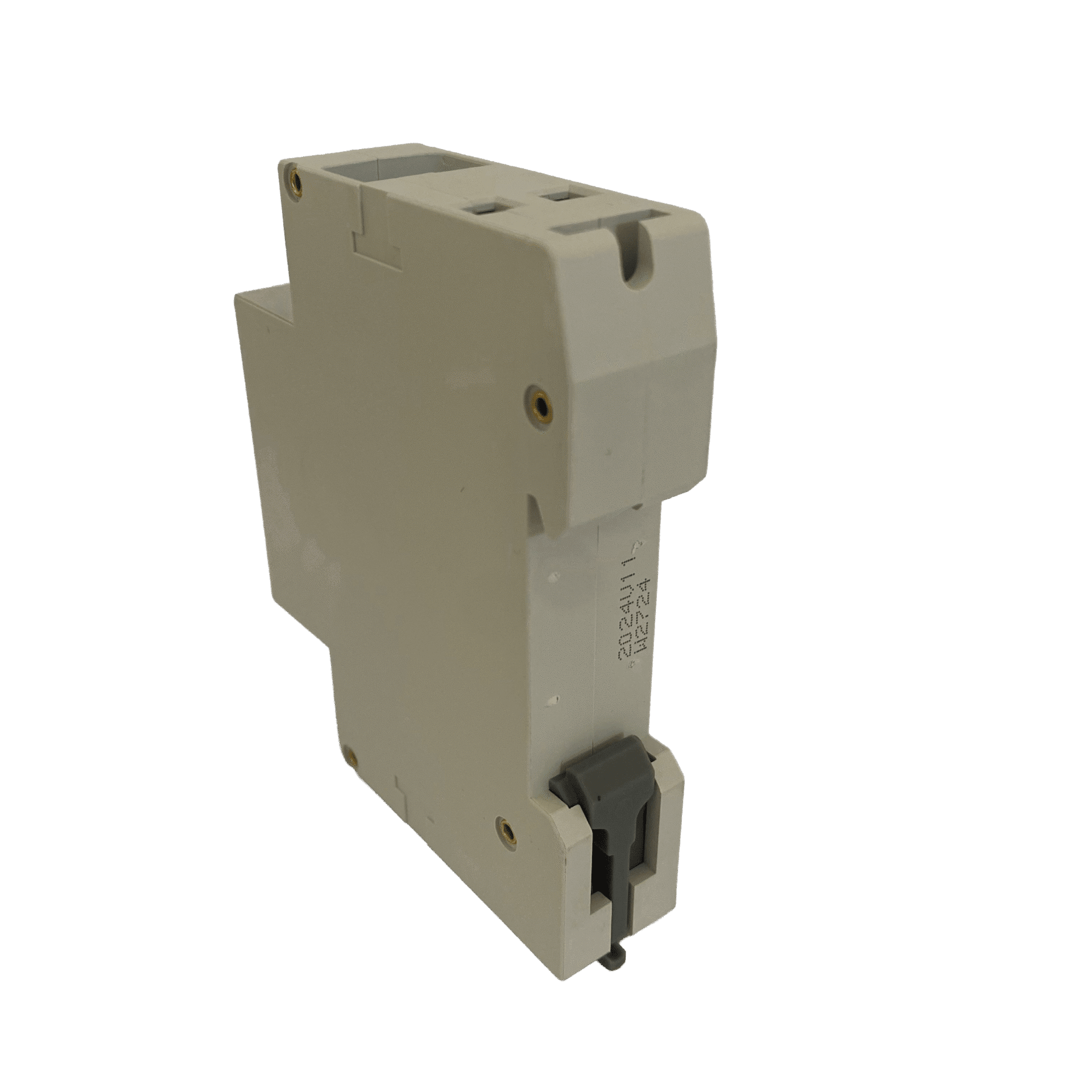

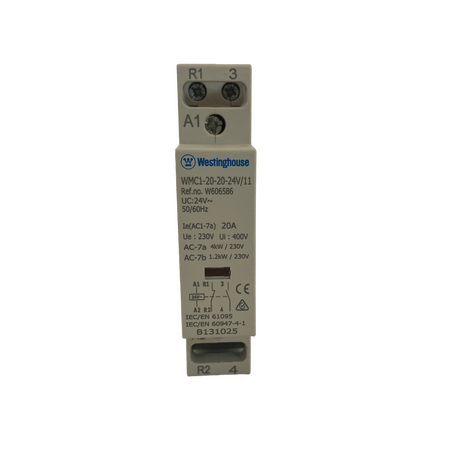

Modular Contactor 18mm 20A 24VAC 1NO+1NC Eltech

BRAND: Eltech
SKU: WMC12024V11
$54.80 List price: $73.10
+ −
30 Days Return Electricians Unlock Trade Access
Eltech modular contactor features 20A rating, 24VAC coil and 1NO+1NC contacts in 18mm module. Ideal for switchboard load switching.

Alternatively Known As: WMC12024V11 Modular Contactor

Technical Specifications
  • Current Rating: 20 A
  • Coil Voltage: 24 VAC
  • Contact Configuration: 1 NO + 1 NC
  • Number of Modules: 1
  • Width: 18 mm
  • Frame Size Features: Inrush VA 15 VA; Holding VA 3.1 VA
  • Operating Ambient Temperature: –5 °C to +55 °C
  • Protection Class: IP20
  • Rated Insulation Voltage (Ui): 500 V
  • Rated Impulse Withstand Voltage (Uimp): 4 kV
  • Mechanical Endurance: 3 000 000 cycles
  • Electrical Endurance: 250 000 cycles
  • Dimensions (H x L x W): 45mm x 18mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Compact DIN‑rail modular 18 mm body
  • Dual contact arrangement (1 NO + 1 NC) for versatile load control
  • Low coil power draw (inrush 15 VA, holding 3.1 VA)
  • High endurance: 3 million mechanical and 250 000 electrical cycles
  • IP20 protection suitable for enclosures
Applications
  • Lighting control in switchboards/load centres
  • Switching small EC motors
  • General load switching in DIN‑rail systems
Standards & Compliance
  • Complies with IEC 61095
  • Complies with IEC 60947‑4‑1
Environmental Benefits
  • Low coil power consumption reduces control circuit energy demand
  • Compact modular design minimises material use and waste
Warranty Information

Please refer to Eltech or authorised distributor for warranty terms; general warranty terms apply per Eltech’s site.

Available Now

Available through authorised Australian distributors such as Eltech; check local stockists.
