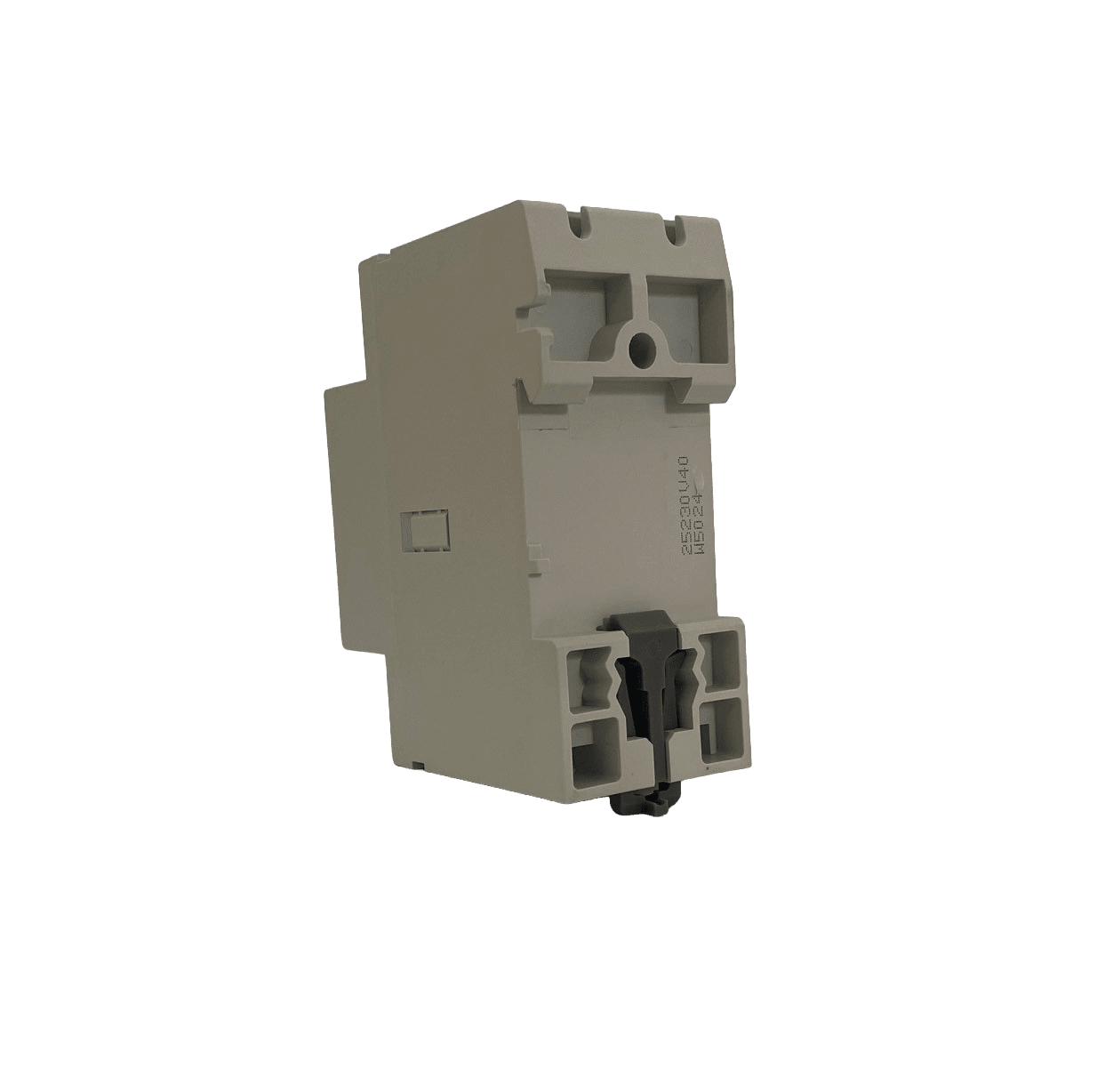

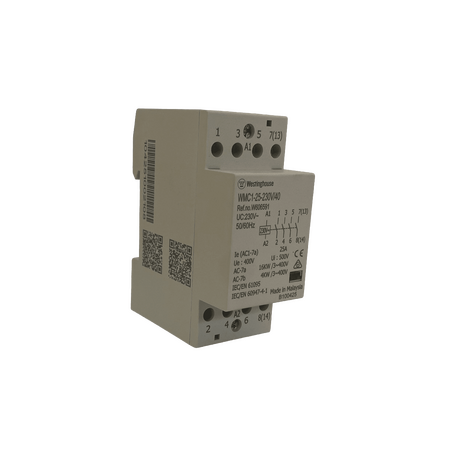

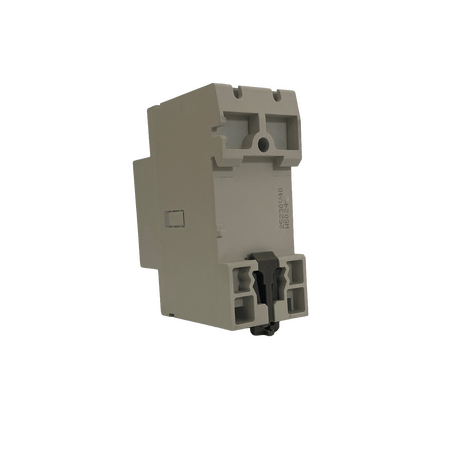

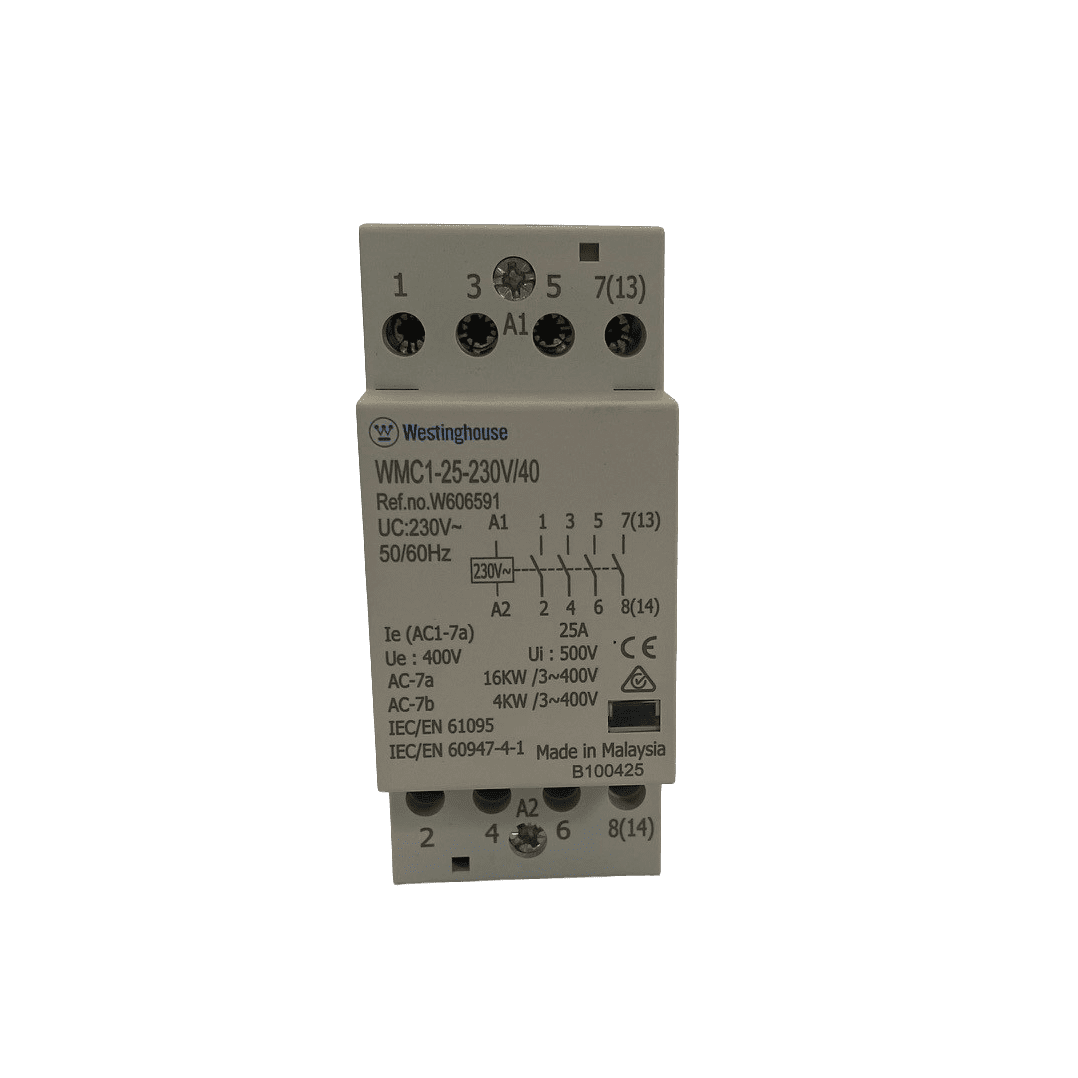

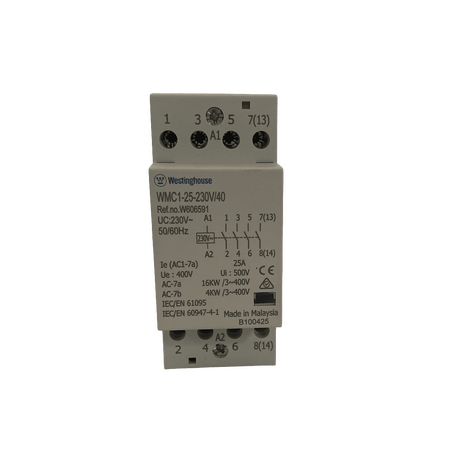

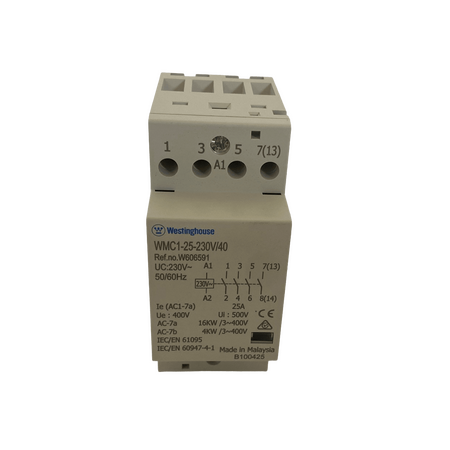

Modular Contactor 36mm 25A 230VAC 4NO Eltech
Eltech modular contactor features 25A rating, 230VAC coil and 4NO contacts in 36mm module. Ideal for switchboard load switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Modular Contactor 25 A 230 VAC 4 NO 36 mm WMC125230V40
Technical Specifications
- Rated Thermal Current (Ith): 25 A
- Coil Voltage: 230 VAC
- Contact Configuration: 4 × Normally‑Open (NO)
- Module Width: 36 mm (2 modules)
- Rated Insulation Voltage (Ui): 500 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Protection Class: IP20
- Ambient Operating Temperature: –5 °C to +55 °C
- Mechanical Endurance: 3 000 000 cycles
- Electrical Endurance: 250 000 operations
- Rated Frequency: 50/60 Hz
- Dimensions (H x L x W): 90mm x 36mm x 60mm
- Weight: 0.23 kg
Key Features
- Compact 36 mm DIN‑modular width saves panel space
- 25 A thermal current suitable for lighting, heating and small EC motor switching
- IEC‑rated robustness (Ui 500 V, Uimp 4 kV) for reliable load control
- High endurance: 3 million mechanical cycles, 250 000 electrical operations
Professional Installation Requirements
- No special professional licensing required; suitable for installation by licensed electricians in switchboard or DIN‑rail setups.
Applications
- Lighting control in commercial and residential distribution boards
- Heating and general load switching
- Control of small EC motors
- Switchboard modular load control applications
Standards & Compliance
- IEC 60947‑4‑1
- IEC 61095
Environmental Benefits
- Compact modular profile reduces material usage and waste
- High mechanical and electrical durability extends service life
Warranty Information
Standard Eltech product warranty applies—refer to Eltech Australia warranty policy for contactors.
Available Now
Available through Eltech’s authorised Australian distributors.
