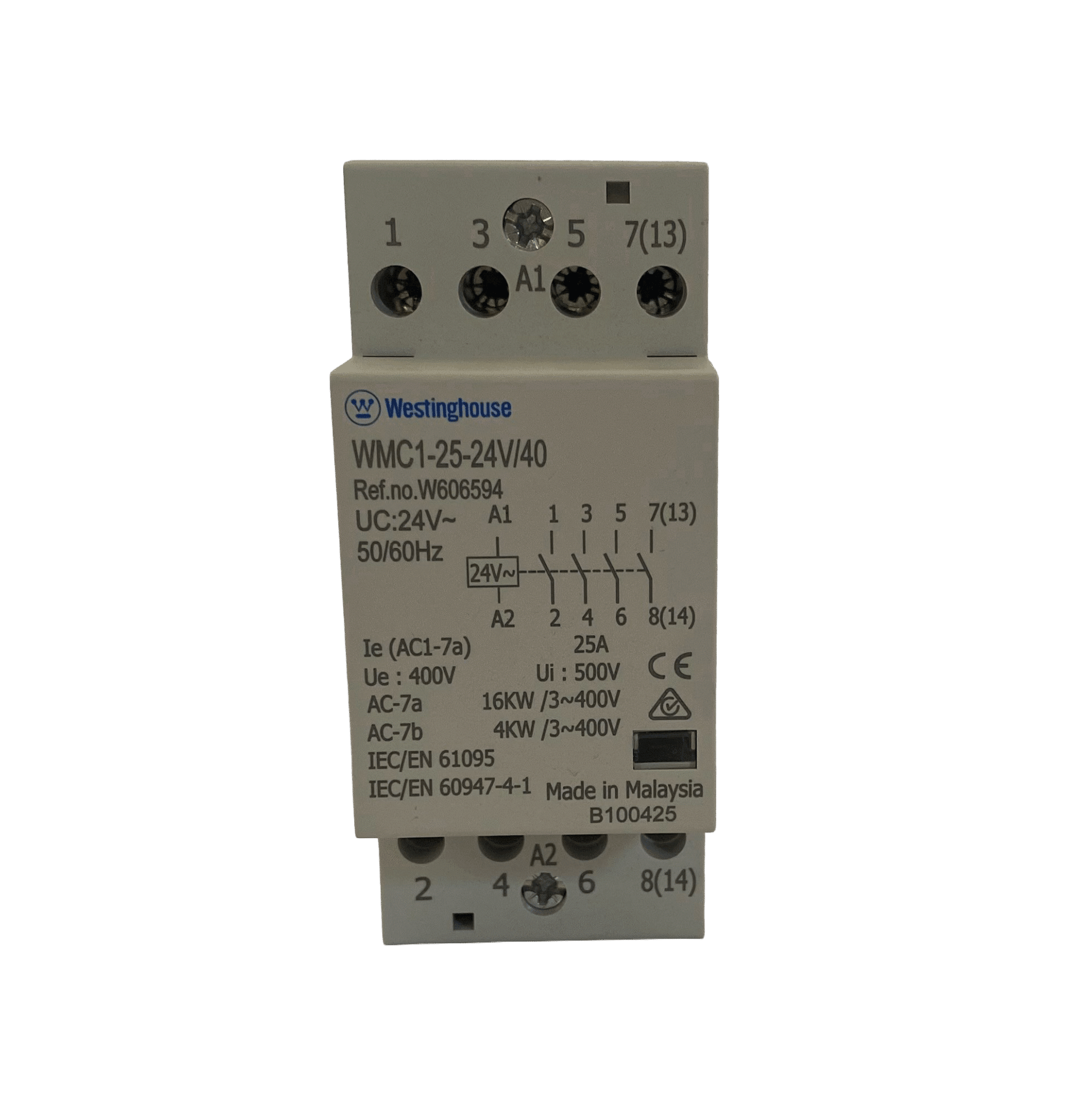

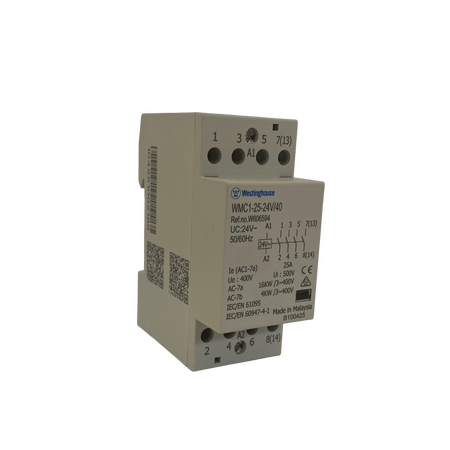

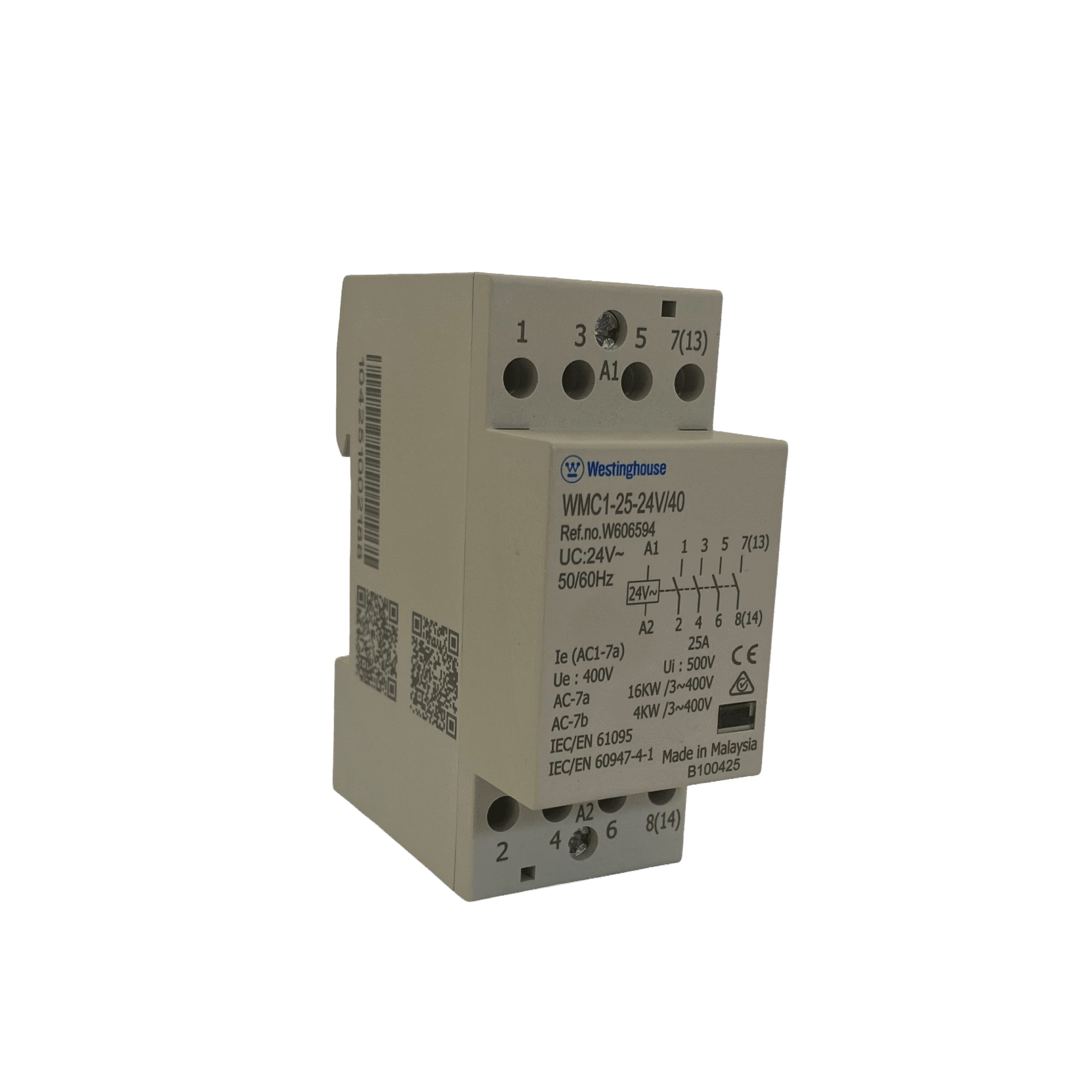

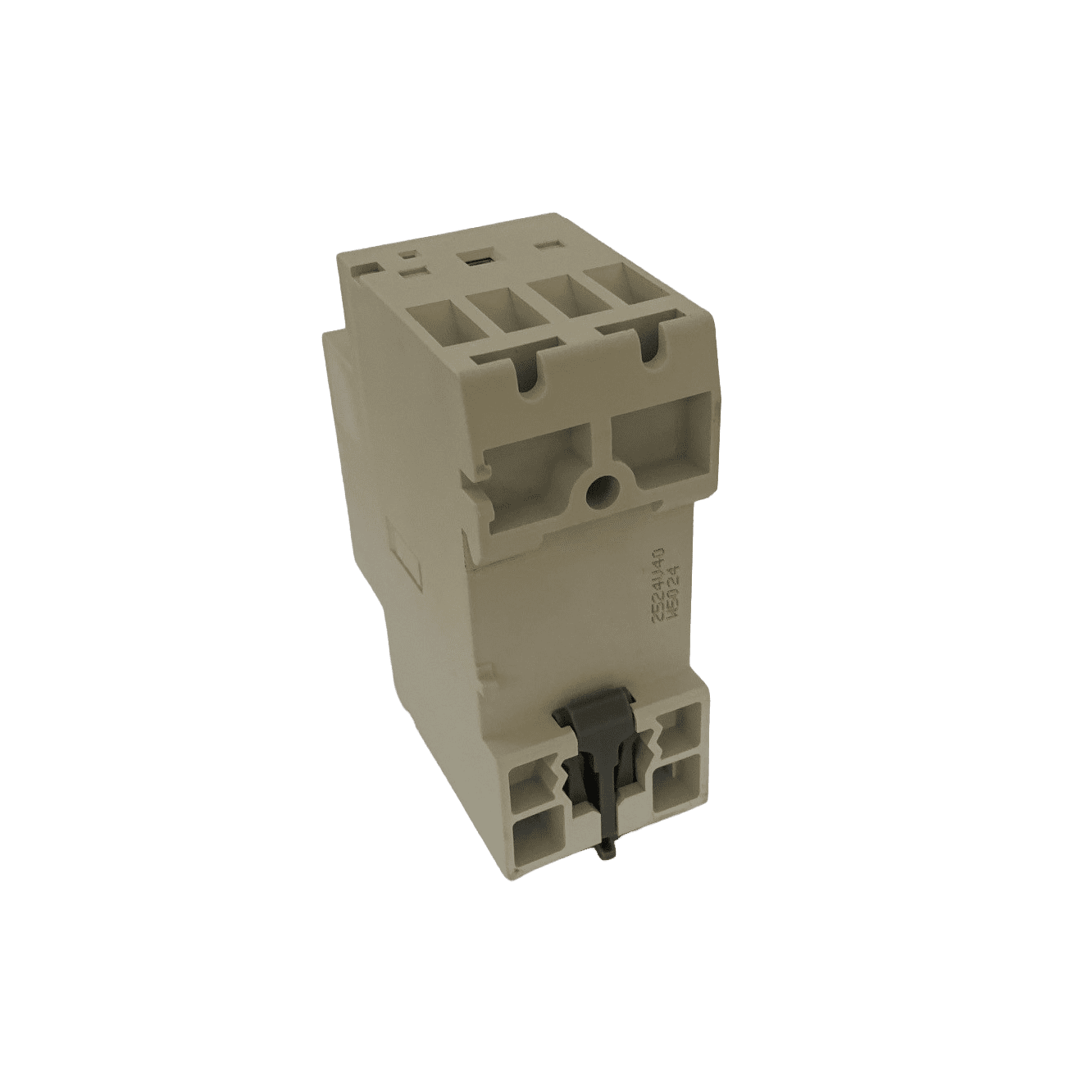

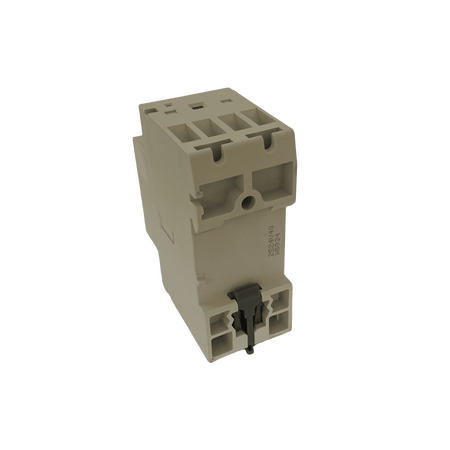

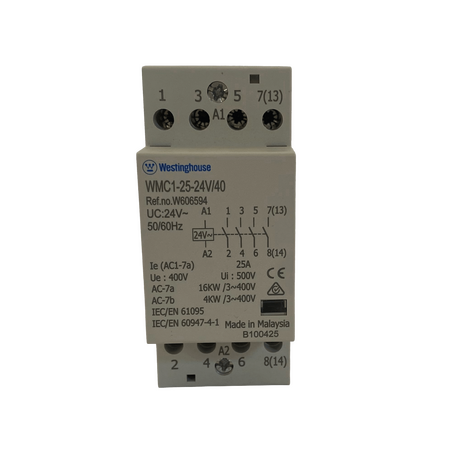

Modular Contactor 36mm 25A 24VAC 4NO Eltech

BRAND: Eltech
SKU: WMC12524V40
$68.60 List price: $91.40
+ −
30 Days Return Electricians Unlock Trade Access
Eltech modular contactor features 25A rating, 24VAC coil and 4NO contacts in 36mm module. Ideal for switchboard load switching.

Alternatively Known As: Eltech WMC125‑24V40 Modular Contactor

Technical Specifications
  • Rated Current: 25 A
  • Coil Voltage: 24 VAC
  • Contact Configuration: 4 × Normally Open (NO)
  • Module Width: 36 mm
  • Inrush Coil Power: 15 VA
  • Holding Coil Power: 3.1 VA
  • Rated Thermal Current Ith: 25 A
  • AC‑1 Power Rating: 5 kW
  • AC‑3 Power Rating: 1.5 kW
  • Contact Terminal Capacity (Stranded Wire): 1–6 mm²
  • Contact Terminal Capacity (Solid Wire): 1–10 mm²
  • Rated Insulation Voltage Ui: 500 V
  • Impulse Withstand Voltage Uimp: 4 kV
  • Ambient Temperature: −5 °C to +55 °C
  • Mechanical Endurance: 3 000 000 cycles
  • Electrical Endurance: 250 000 cycles
  • Dimensions (H x L x W): 80mm x 65mm x 36mm
  • Weight: 0.2 kg
Key Features
  • Compact 36 mm DIN‑rail width suitable for tight control panel configurations
  • Robust 25 A current rating for reliable moderate load switching
  • Four normally‑open contacts for versatile control circuits
  • Low coil holding power (3.1 VA) enhances energy efficiency
  • High endurance – up to 3 million mechanical and 250 k electrical cycles
Professional Installation Requirements
  • Installation by a licensed electrician is recommended in accordance with AS/NZS 3000 and manufacturer instructions.
Applications
  • Switchboard and lighting load switching
  • Industrial and commercial control panels
  • Automation and motor control circuits
  • Residential or commercial power distribution systems requiring compact modular contactors
Standards & Compliance
  • Complies with AS/NZS 60947 for low‑voltage switchgear and controlgear
Environmental Benefits
  • Energy‑efficient coil holding draws minimal power
  • Durable design reduces replacement frequency and waste
Warranty Information

Eltech standard warranty applies; installation by a qualified electrician may be required to validate a 7‑year warranty as per Eltech terms. Limited warranty coverage applies as per manufacturer’s policy.

Available Now

Available through authorised Australian distributors and electrical wholesalers.
