Trade Discount 33%

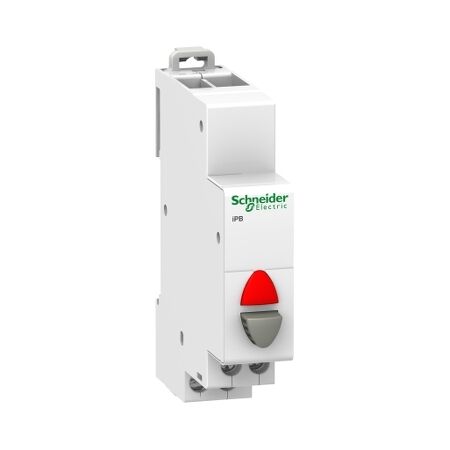

Modular Push Button 1NC | Red LED Indicator | 110-230Vac | Grey by Clipsal
Modular push button with 1NC contact and red LED indicator—ideal for residential and small commercial spaces. Built for durability with 30,000 cycles and easy installation with staggered terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Single push-button, 1NC grey, indicator light red 110-230Vac
Brand: Clipsal
SKU: A9E18037
Alternatively Known As: Acti9 Push Button, Clipsal Push Button, Modular Push Button
Technical Specifications
- Rated operational voltage: 250VAC
- Rated operational current: 20A
- Control type: 1 push-button grey
- Local signalling: LED indicator red
- Electrical durability: AC-22: 30,000 cycles
- Wire stripping length: 9 mm
- Relative humidity: 95% at 55°C
- Ambient air temperature for operation: -35...70°C
- Ambient air temperature for storage: -40...80°C
- Dimensions (H x L x W): 82mm x 71.5mm x 18mm
- Weight: 0.045 kg
Key Features
- Modular push-button with a normally closed contact.
- 0.3W red LED indicator light with a service life of 100,000 hours.
- Staggered terminals for simplified connection.
- Tightening torque of connection is 1N.m.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments
- Commercial: Small commercial spaces
Standards & Compliance
- Complies with IEC 60947-5-1 and IEC 60669-1 standards.
Environmental Benefits
- Packaging without single-use plastic.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Single Push-Button with Indicator Light is available now for immediate purchase. Ideal for residential and small commercial applications.
