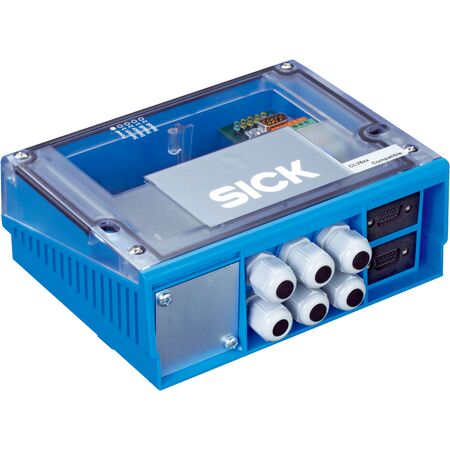

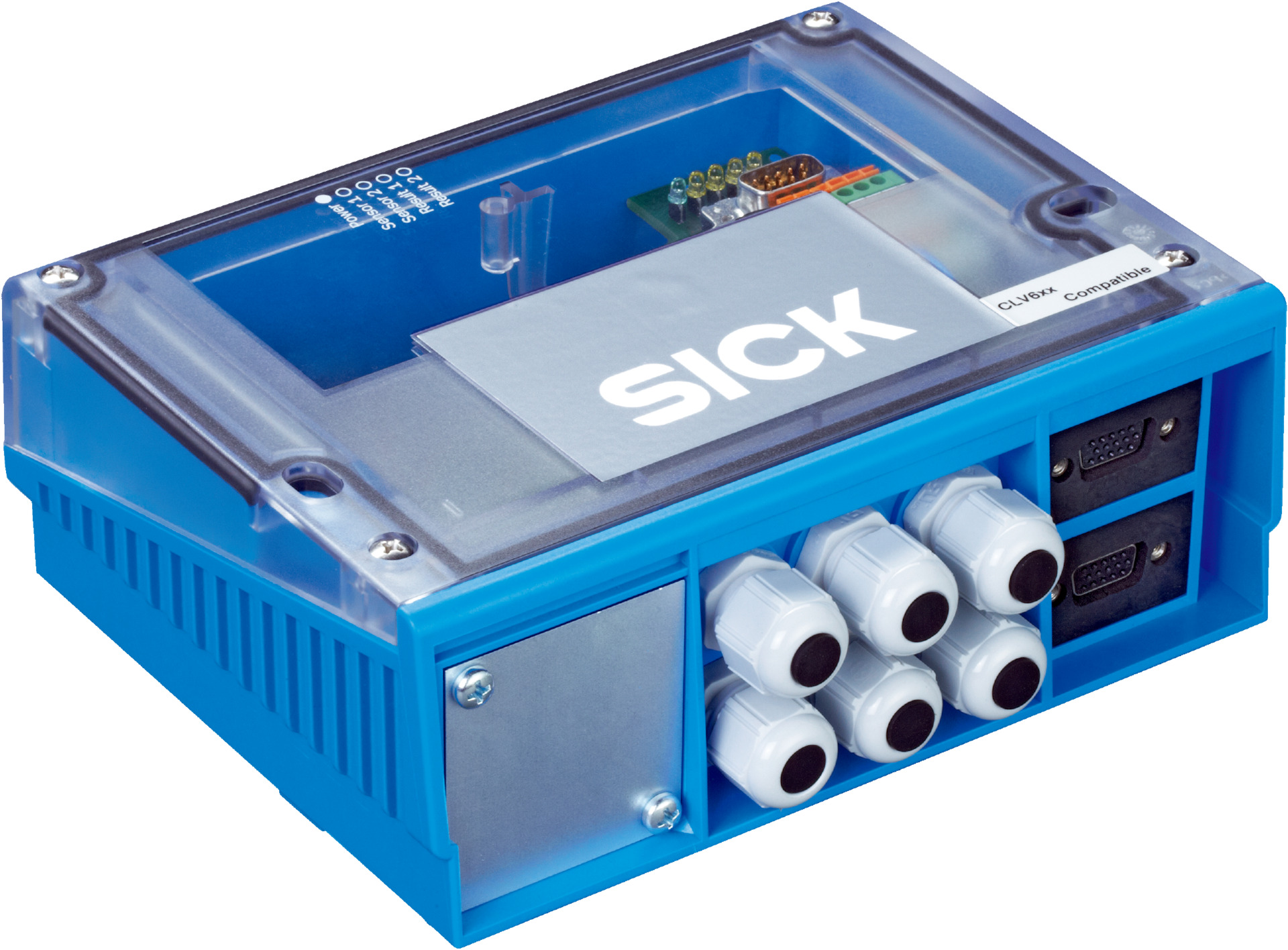

Modular Sensor Connection Module IP65 Rated Supports Multiple Interfaces SICK

BRAND: SICK
SKU: 1028487
$1,114.90 List price: $1,401.30
+ −
30 Days Return Electricians Unlock Trade Access
<p>The Modular Sensor Connection Module is designed for seamless integration of two sensors in industrial automation.</p>

Alternatively Known As: Modular Sensor Connection Module, Sensor Interface Module, Industrial Sensor Connector

Technical Specifications
  • Power consumption: Sensor power consumption + 0.5 W
  • Housing: Polycarbonate
  • Enclosure rating: IP65
  • Protection class: III
  • Scanner connection: 15-pin D-Sub HD female connector
  • Service plug: 9-pin D-Sub plug (internal)
  • Interfaces: Ethernet, RS-232, RS-422, RS-485, CAN, PROFIBUS DP, DeviceNet™ (fieldbus gateway required for some)
  • Optical indicators: 5 LEDs
  • Configuration software: SOPAS ET
  • Operating temperature: -35 °C to +40 °C
  • Storage temperature: -35 °C to +70 °C
  • Relative humidity: < 90%, non-condensing
  • Dimensions (H x L x W): 70mm x 192mm x 167mm
  • Weight: 0.8 kg
Key Features
  • Modular connection module supporting two sensors
  • Compatible with Lector62x, CLV61x - CLV65x, RFH6xx, RFU62x handheld scanners
  • Supports cloning module (CMC), display module (CMD), power supply module (CMP), and fieldbus gateway (CMF)
  • Multiple interface support including Ethernet, RS-232, RS-422, RS-485, CAN, PROFIBUS DP, and DeviceNet™
  • 5 LED optical indicators for status monitoring
  • Configuration via SOPAS ET software
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper integration and compliance with electrical standards.
Applications
  • Industrial automation sensor integration
  • Modular connection for handheld scanners and sensors
  • Factory and process automation requiring sensor networking
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables efficient sensor integration reducing wiring complexity and material waste
  • Supports energy-efficient sensor operation with low power consumption
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK CDM420-0004 Modular Connection Device is available for immediate purchase, ideal for industrial automation and sensor networking applications.
