Modular Single Phase Power Meter 230V 40A | DIN Rail | IP40 by Clipsal
Modular single phase power meter with 230V and 40A capacity—ideal for residential and commercial energy management. Built for cost management and billing, with DIN rail mounting and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

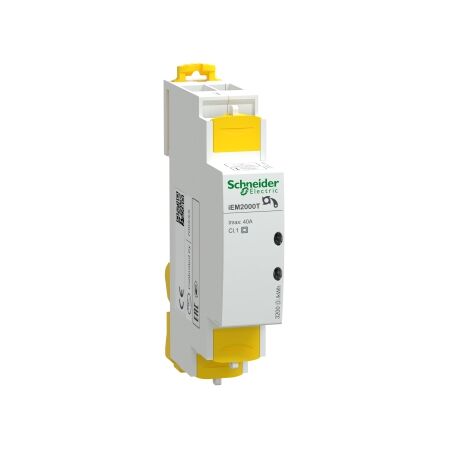

Product Name/Title: Acti9, Modular single phase power meter, iEM2000T, 230V, 40A without display
Brand: Clipsal
SKU: A9MEM2000T
Alternatively Known As: iEM2000T Power Meter, Acti9 Energy Meter
Technical Specifications
- Communication port protocol: None
- Accuracy class: Class 1 active energy conforming to IEC 62053-21
- Max current: 40 A
- Network frequency: 50/60 Hz
- Impulse duration: 120 ms
- Maximum power consumption: 10 VA at 240 V AC
- Operating altitude: < 2000 m
- Dimensions (H x L x W): 96.5mm x 69mm x 18mm
- Weight: 0.073 kg
Key Features
- Rated current: 40 A
- Rated voltage: 230 V +/- 20 %
- Local signalling with green and yellow indicator lights
- DIN rail mounting support
- IP40 front panel protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Small buildings, cost management, billing
- Commercial: Small commercial, cost management, billing
- General: Panelboard applications in various market segments
Standards & Compliance
- Complies with IEC 61557-12 and IEC 62053-21
Environmental Benefits
- Green Premium product status
- Packaging without single use plastic
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Modular Single Phase Power Meter iEM2000T is available now for immediate purchase. Ideal for residential and commercial energy management.
