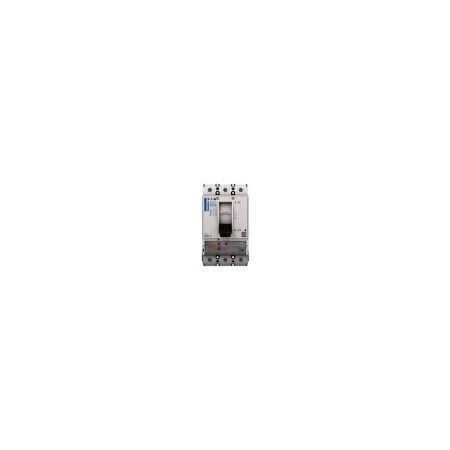

Product Name/Title: Molded Case Circuit Breaker 250A | 690V AC | IP66 Protection | Electronic Release by Eaton
Brand: Eaton
SKU: Y7-191630
Alternatively Known As: Molded Case Circuit Breaker, MCCB 250A, NZM2 Circuit Breaker, Eaton NZM2 PXR20, Industrial Circuit Breaker
Technical Specifications
- Amperage Rating: 250 A
- Voltage Rating: 690 V AC
- Number of Poles: Three-pole
- Mounting Method: Built-in device fixed with DIN rail or fixed mounting
- Degree of Protection: IP20 basic, IP40 front side with insulating surround, IP66 with door coupling rotary handle
- Electrical Connection Type: Screw connection standard, optional box and tunnel terminals
- Rated Short-Circuit Breaking Capacity Ics: 85 kA at 230 V, 50/60 Hz; 50 kA at 400/415 V, 50/60 Hz
- Rated Short-Circuit Making Capacity Icm: 110 kA at 400/415 V, 50/60 Hz
- Overload Current Setting (Ir): 100 A to 250 A
- Short Delay Current Setting (Isd): 2 A to 10 A
- Instantaneous Current Setting (Ii): 2 A to 12 A
- Power Loss: 51.56 W
- Ambient Operating Temperature: -25 °C to 70 °C
- Mechanical Lifespan: 20000 operations
- Electrical Lifespan: 10000 operations at 400 V AC-1
- Release System: Electronic release
- Pollution Degree: 3
- Shock Resistance: 20 g (half-sinusoidal shock 20 ms)
- Dimensions (H x L x W): 160mm x 190mm x 115mm
- Weight: 2.3 kg
Key Features
- Electronic release system
- LSI overload protection and delayed and non-delayed short-circuit protective device
- R.m.s. value measurement and thermal memory
- USB interface for configuration and test function with Power Xpert Protection Manager software
- Optionally communication-capable with interface module and internal Modbus RTU module or CAM
- Rated current 250 A with rated uninterrupted current
- Short-circuit total breaktime less than 10 ms
- Rated short-circuit breaking capacity Ics up to 85 kA depending on voltage
- Screw terminal standard with optional box and tunnel terminals
- Finger and back-of-hand proof protection to DIN EN 50274/VDE 0106 part 110
- IP20 basic degree of protection with higher IP ratings available with accessories
- Mechanical lifespan of 20000 operations and electrical lifespan of up to 10000 operations at 400 V AC-1
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into the electrical system.
Applications
- Use in unearthed supply systems at 690 V
- Industrial electrical protection
- Motor drive protection
- Systems, cable, selectivity and generator protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- High efficiency in electrical protection reduces energy waste and equipment damage
- Durable design extends product lifecycle reducing waste
Warranty Information
Warranty terms as per Eaton standard product warranty policy; typically covers manufacturing defects for a specified period.
Available Now
The Eaton Moeller NZM2 PXR20 Molded Case Circuit Breaker 250A 3P is available now for immediate purchase. Ideal for industrial and commercial electrical protection applications.
