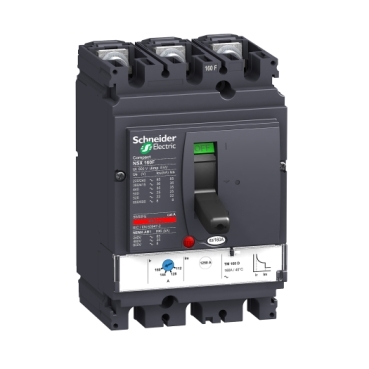

Molded Case Circuit Breaker NSX160F | 125A Rated Current | 3P/4P Configuration | 36kA Breaking Capacity | @Pack of 1 | by Clipsal
The Molded Case Circuit Breaker NSX160F is designed for reliable protection in commercial and industrial electrical distribution systems. With a rated current of 125A and a breaking capacity of 36kA at 415V AC, this circuit breaker features a thermal-magnetic trip unit for enhanced safety. Ideal for main and sub-main switchboards, it ensures robust performance against overloads and short circuits, making it a perfect choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker NSX160F | 125A Rated Current | 3P/4P Configuration | 36kA Breaking Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBLV430631/30641
Alternatively Known As: NSX160F Circuit Breaker, Compact NSX160F, Schneider NSX160F, 125A MCCB, 3 Pole MCCB, 4 Pole MCCB, SCHBLV430631, SCHBLV430641
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Rated current: 125A
- Number of poles: 3P/4P
- Breaking capacity: 36kA at 415V AC
- Trip unit: TMD (Thermal Magnetic)
- Rated operational voltage: 240/415V AC
- Frequency: 50/60Hz
- Standards: IEC 60947-2
- Mounting: Fixed
- Terminal type: Front connection
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 3.5 kg
Key Features
- Compact NSX160F circuit breaker with TMD (thermal-magnetic) trip unit
- Rated current: 125A
- 3 poles (3P) or 4 poles (4P) configuration
- Breaking capacity: 36kA at 415V AC
- High-performance protection against overloads and short circuits
- Adjustable thermal and magnetic settings
- Robust and reliable design for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Panel boards and control panels
- Protection of electrical circuits in buildings and infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy efficiency by minimizing downtime and electrical faults
- Long operational life reduces replacement frequency and waste
- Compliant with RoHS for reduced hazardous substances
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now

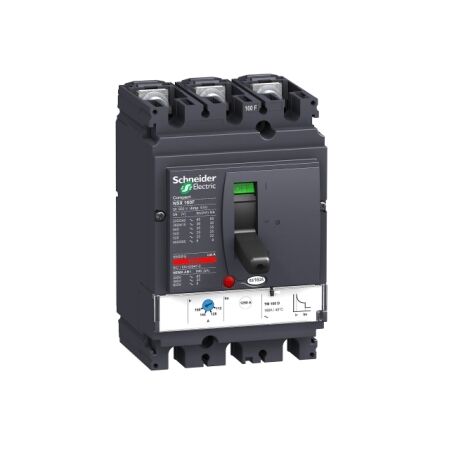

The Clipsal BTS NSX160F TM125D 3P/4P 240VA Circuit Breaker is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
