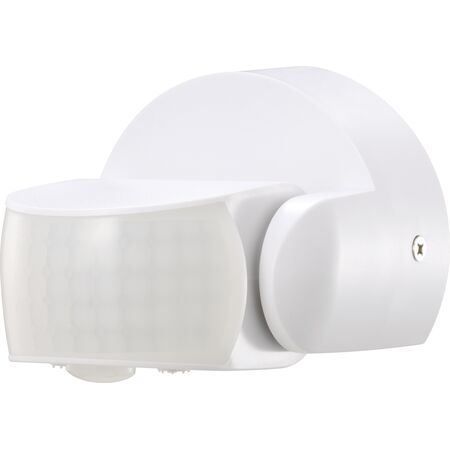

Motion Sensor 1200W | Surface/Corner Mount | IP65 Rated
Lanx motion sensor with 1200W capacity and IP65 rating—ideal for controlling lighting in various applications. Built for surface or corner mounting, with adjustable ambient light settings and a wide detection range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motion Sensor 1200W | Surface/Corner Mount | IP65 Rated
SKU: LXUS1200W
Alternatively Known As: Outdoor Motion Sensor, IP65 Motion Detector, Corner Mount Motion Sensor, 1200W Motion Sensor
Technical Specifications
- Voltage: 220-240V AC
- Power Frequency: 50/60Hz
- Ambient Light Sensitivity: <3-2000 LUX (adjustable)
- Time Delay: Min 10 sec ± 3 sec, Max 15 min ± 2 min
- Rated Load: Max 1200W
- IP Class: IP65
- Detection Range: 180°/360°
- Detection Distance: 12m max (<24°C)
- Working Temperature: -20 to +40°C
- Working Humidity: <93% RH
- Power Consumption: approx 0.5W
- Installation Height: 1.8-2.5m
- Detection Moving Speed: 0.6-1.5 m/s
- Dimensions (H x L x W): 60mm x 100mm x 90mm
- Weight: 0.3 kg
Key Features
- IP65 rated for weather resistance and outdoor use
- Includes corner mount bracket for 90 degree corner installation
- Adjustable ambient light sensitivity from <3 to 2000 LUX
- Time delay adjustable from minimum 10 seconds to maximum 15 minutes
- Detection range options of 180° or 360°
- Maximum detection distance of 12 meters
- Low power consumption approximately 0.5W
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal sensor performance.
Applications
- Outdoor lighting control for residential and commercial properties
- Security lighting activation
- Pathway and garden lighting automation
- Warehouse and industrial area lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by activating lighting only when movement is detected
- Helps lower carbon footprint through efficient lighting control
Warranty Information
1 year warranty covering manufacturing defects and workmanship.
Available Now
The Lanx Motion Sensor 1200W is available now for immediate purchase. Ideal for outdoor lighting control in residential, commercial, and industrial settings.
