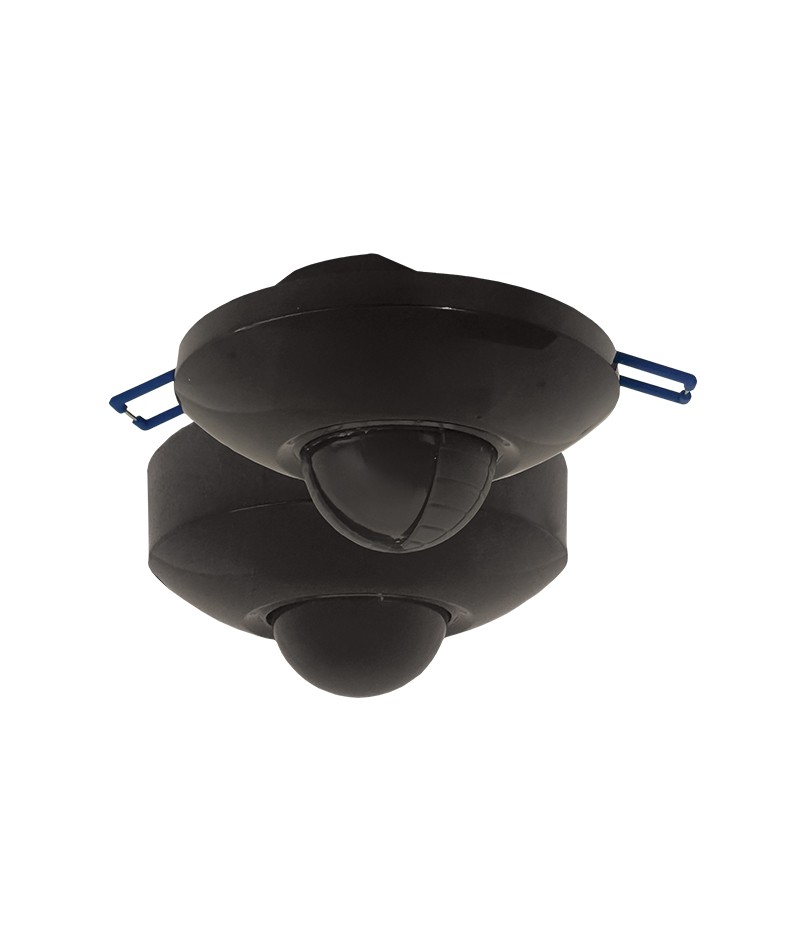

Motion Sensor PIR IP44 360 Degree 8m Arctic Owl Black Trader
Trader motion sensor features passive infrared detection, IP44 360 degree coverage and 8m range. Ideal for outdoor entries with recess or surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Arctic Owl Outdoor PIR Sensor, Outdoor Motion Sensor Light

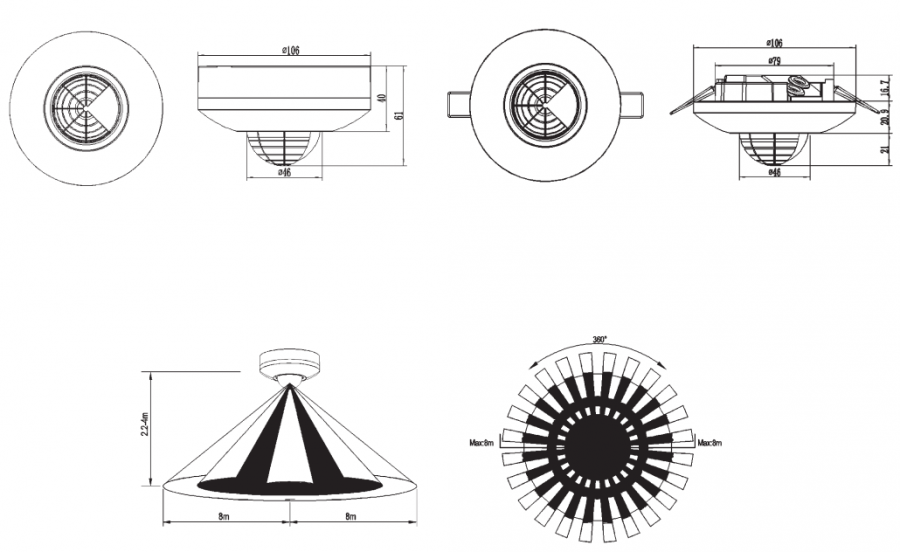

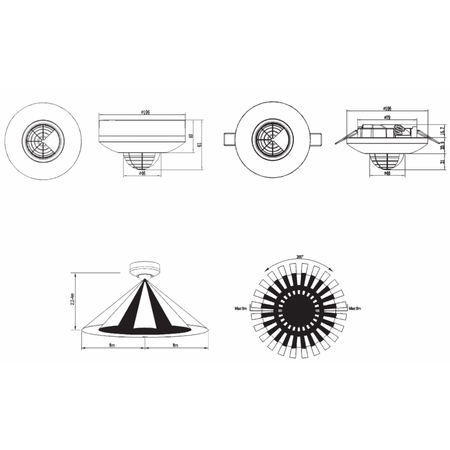

Technical Specifications
- Detection Angle: 360°
- Detection Distance: 8 m radius at 2.2–4 m height
- Time Delay: 10 s to 30 min
- Ambient Light Adjustment: <3–2000 LUX
- Rated Load: 2000 W incandescent, 1000 W fluorescent/energy‑saving lamps
- Power Source: 220–240 V AC, 50/60 Hz
- Power Consumption: approx 0.5 W
- Working Temperature: –20 °C to +40 °C
- Working Humidity: <93 % RH
- Cut-out Diameter: 85 mm
- Mounting Depth: 20 mm
- IP Rating: IP44
- Dimensions (H x L x W): 100mm x 120mm x 120mm
- Weight: 0.6 kg
Key Features
- Passive infrared detection with full 360° coverage
- Recessed or surface mounting with included accessories
- Manual override function
- Parallel connection capability for multi‑unit installations
- Wide detection range and adjustable ‘ON’ time
- High maximum load capacity
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Outdoor entries, porches and ceilings for residential and commercial use
- Security‑linked flood lighting control
- Energy‑saving automation of lighting systems
Standards & Compliance
- Installation to comply with AS/NZS 3000 (Australian Wiring Rules)
Environmental Benefits
- Reduces energy use through automatic detection and switching
- Low standby power consumption (~0.5 W)
Warranty Information
Refer to Trader’s current product warranty information on their website or packaging (varies by product — see Trader Electrical Accessories warranty details).
Available Now
Available through authorised Australian distributors and electrical supply outlets; check with SCHNAP for availability and pricing.
