Motor Circuit Protector 4A | 690V | 100kA Breaking Capacity | IP2X by NHP
Motor circuit protector with 4A current and 690V voltage—ideal for industrial and commercial motor protection. Built for safety, with 100kA breaking capacity and IP2X protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

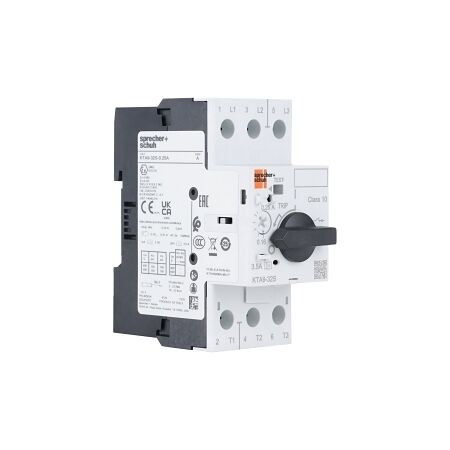

Product Name/Title: S+S KT9 Motor Circuit Protector KTB9 40H Frame D 4A
Brand: NHP
SKU: KTB940H4P0A
Alternatively Known As: Motor Circuit Breaker, Motor Protection Circuit Breaker, Circuit Protector
Technical Specifications
- Rated Permanent Current: 4 A
- Max Rated Operation Voltage: 690 V
- Rated Operation Power at AC 3 400 V: 1.5 kW
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
- Weight: 0.39 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Rated short-circuit breaking capacity of 100 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of fire and equipment damage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT9 Motor Circuit Protector KTB9 40H Frame D 4A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
