Motor Protection Circuit Breaker 10-16A | Thermomagnetic | IP2X by NHP
Motor protection circuit breaker with thermomagnetic switch-off and adjustable overload protection from 10 to 16A—ideal for industrial and commercial motor safety. Built for reliability, with IP2X safety and screw connection for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

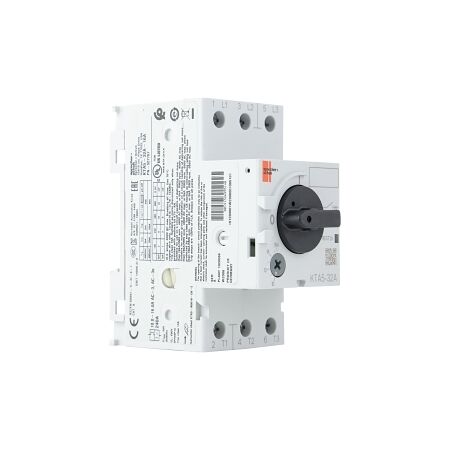

Product Name/Title: S+S KT5 Motor Protection Circuit Breaker 10 to 16A
Brand: NHP
SKU: KTA532AC16
Alternatively Known As: Motor Protection Breaker, Circuit Breaker for Motors, KT5 Motor Breaker
Technical Specifications
- Rated Permanent Current: 16 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 15 kA at 400 V AC
- Rated Operation Power at AC 3: 7.5 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 90mm x 85.5mm x 45mm
- Weight: 0.28 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 10 to 16 A.
- IP2X degree of protection ensuring safety from accidental contact.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial buildings
- General: Any application requiring motor protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances energy efficiency by protecting motors from overloads and faults.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The S+S KT5 Motor Protection Circuit Breaker 10 to 16A is available now for immediate purchase. Ideal for industrial and commercial applications requiring motor protection.
