Motor Protection Circuit Breaker 25-32A | Thermomagnetic | IP2X Safety by NHP
Motor protection circuit breaker with thermomagnetic switch-off and adjustable overload protection from 25 to 32A—ideal for industrial and commercial applications. Built for safety with IP2X protection and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

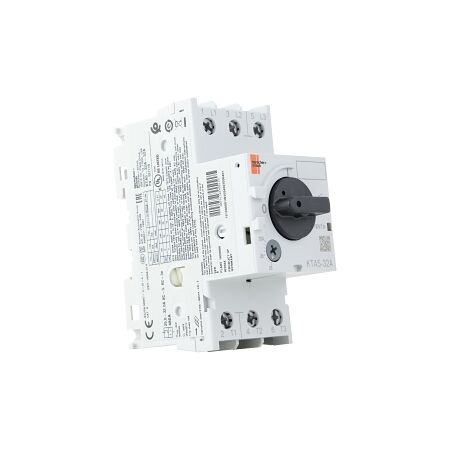

Product Name/Title: S+S KT5 Motor Protection Circuit Breaker 25 to 32A
Brand: NHP
SKU: KTA532AC32
Alternatively Known As: Motor Protection Circuit Breaker, KT5 Circuit Breaker
Technical Specifications
- Rated Permanent Current: 32 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 25-32 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 15 kA at 400 V AC
- Rated Operation Power at AC 3: 15 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.8mm x 85.5mm x 45mm
- Weight: 0.33 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 25 to 32 A.
- IP2X degree of protection ensuring safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Use in commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances energy efficiency by protecting motors from overloads and faults.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The S+S KT5 Motor Protection Circuit Breaker 25 to 32A is available now for immediate purchase. Ideal for industrial and commercial applications.
