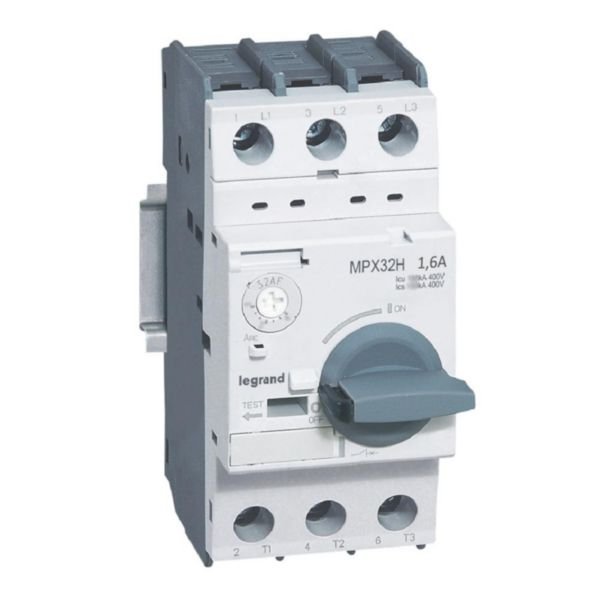

Motor Protection Circuit Breaker MPX3 32H | 1.0-1.6A | 100kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
The Motor Protection Circuit Breaker MPX3 32H is designed for reliable protection of 3-phase motors, featuring a 1.0-1.6A overload release current setting and a robust 100kA short-circuit breaking capacity. Ideal for industrial and tertiary electrical installations, this breaker ensures safety and compliance with local electrical codes, making it a perfect choice for switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Protection Circuit Breaker MPX3 32H | 1.0-1.6A | 100kA Short-Circuit Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417325
Alternatively Known As: Motor Protection Circuit Breaker, MPX3 Circuit Breaker, Thermal Magnetic Motor Protector, Legrand MPX3 32H
Technical Specifications
- Rated operating voltage: 220-690 V
- Rated permanent current: 1.6 A
- Rated short-circuit breaking capacity (Icu) at 400 V AC: 100 kA
- Overload release current setting: 1-1.6 A
- Short-circuit release adjustment: 20.8 A
- Thermal overload protection included
- Number of poles: 3
- Degree of protection: IP20
- Type of electrical connection: Frame clamp
- Rated operation power at AC-3, 230 V: 0.18 kW
- Rated operation power at AC-3, 400 V: 0.37 kW
- Type of control element: Turn button
- Device construction: Built-in fixed built-in technique
- Integrated auxiliary switch and under voltage release
- Dimensions (H x L x W): 94mm x 100mm x 45mm
- Weight: 0.3 kg
Key Features
- Thermomagnetic switch off technique
- Overload release current setting adjustable from 1 to 1.6 A
- Short-circuit release adjustment fixed at 20.8 A
- Integrated auxiliary switch and under voltage release
- Screw terminals capacity from 1mm² to 10mm²
- Compatible with MPX3 auxiliaries
- Compact size for optimized cabinet space
- Easy operation with rotary handle
Professional Installation Requirements
- Installation must be performed by a qualified electrician following local electrical codes and Legrand installation instructions.
Applications
- Protection of 3-phase motors up to 0.55kW / 415V
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with environmentally conscious processes
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.
Available Now
The Legrand Motor Protection Circuit Breaker MPX3 32H 1.0-1.6A 100KA is available for immediate purchase, ideal for industrial and tertiary motor protection applications.
