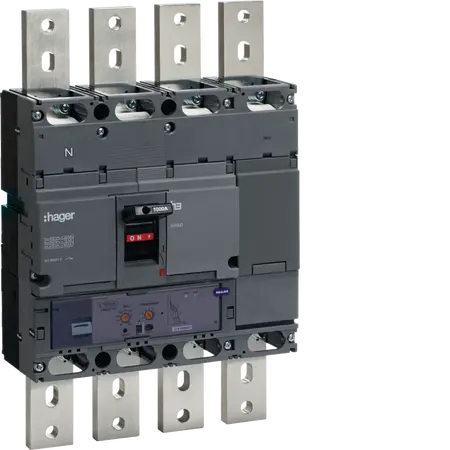

Moulded Case Circuit Breaker 1000A | 4P 50kA | LSI by Hager

BRAND: :hager
SKU: HNE971H
$8,287.20 List price: $10,596.80
+ −
30 Days Return Delivery Options
Moulded case circuit breaker with 1000A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced safety with fast tripping response and fixed construction.

Product Name/Title: Moulded Case Circuit Breaker h1000 4P 50kA 1000A LSI

Brand: Hager

SKU: HNE971H

Alternatively Known As: MCCB, Moulded Case Circuit Breaker, Circuit Breaker 1000A

Technical Specifications
  • Rated ultimate short-circuit breaking capacity Icu under 230 V AC: 85 kA
  • Rated ultimate short-circuit breaking capacity Icu under 240 V AC: 75 kA
  • Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 50 kA
  • Rated ultimate short-circuit breaking capacity Icu under 415 V AC: 50 kA
  • Number of poles: 4
  • Frequency: 50 - 60 Hz
  • Rated insulation voltage: 800 V
  • Rated operational voltage: 220 - 690 V
  • Ingress Protection (IP) class: IP4X
  • Operating temperature: -25 - 70 °C
  • Dimensions (H x L x W): 300mm x 150mm x 200mm
  • Weight: 10 kg
Key Features
  • Rated current of 1000 A with a breaking capacity of 50 kA under 400 V AC.
  • Fast tripping response time of 10 ms for enhanced safety.
  • Fixed built-in construction type for reliable performance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in large buildings
  • General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
  • Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
  • Designed to improve environmental performance by reducing carbon footprint.
Warranty Information

3 years warranty against manufacturing defects.

Available Now

The Moulded Case Circuit Breaker H1000 4P 50kA 1000A LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

HNE971H (HNE971H, 173 Kb) [Download]

reach_declaration_HNE971H1.pdf (reach_declaration_HNE971H1.pdf, 103 Kb) [Download]

rohs_declaration_HNE971H1.pdf (rohs_declaration_HNE971H1.pdf, 104 Kb) [Download]

(ID1_H1000_6H5560F_WEB.pdf, 8,079 Kb) [Download]

(DECLARATION_22_3189_06_22.pdf, 285 Kb) [Download]
