Moulded Case Circuit Breaker 800A | 3P 50KA | Smart Electronic by NHP
Moulded case circuit breaker with 800A rated current and 3 poles—ideal for industrial and commercial power distribution. Built for high breaking capacity of 70 kA at 415 V, with smart electronic features for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

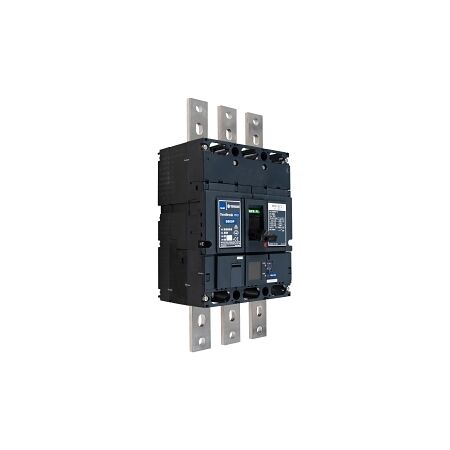

Product Name/Title: Terasaki TemBreak PRO Moulded Case Circuit Breaker 800 Frame 50KA 3P 800A Smart Electronic
Brand: NHP
SKU: B800N3800SE
Alternatively Known As: MCCB, Circuit Breaker, Power Switching Circuit Breaker
Technical Specifications
- Rated current: 800 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 70 kA
- Frame size rating: 800 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 800 V
- Suitable for isolation: Yes
- Rated short circuit breaking capacity: 25 kA at 690 V AC
- Rated short circuit breaking capacity: 20 kA at 690 V AC
- Electrical life: 4000 cycles
- Mechanical life: 10000 cycles
- Max vibration acceleration: 19 m/s²
- Max vibration frequency: 16.7 Hz
- Max vibration duration: 12 min
- Cable cross section range: 35-300 mm²
- Pollution degree: 3
- Rated surrounding temperature: 50 °C
- Rated temperature: -5 to 70 °C
- Maximum operating temperature: 70 °C
- Storage temperature: -10 to 70 °C
- Allowable relative humidity: 0-85 %
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 273mm x 145mm x 210mm
- Weight: 9.1 kg
Key Features
- Rated current: 800 A
- Three poles for three-phase systems
- High breaking capacity of 70 kA at 415 V
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss in electrical systems.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Terasaki TemBreak PRO Moulded Case Circuit Breaker is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
