Moulded Case Circuit Breaker Micrologic 0.3 4P 400A 50kA Clipsal
Clipsal Moulded Case Circuit Breaker 4P 400A features 50kA breaking capacity. Suited to main switchboards and sub-mains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

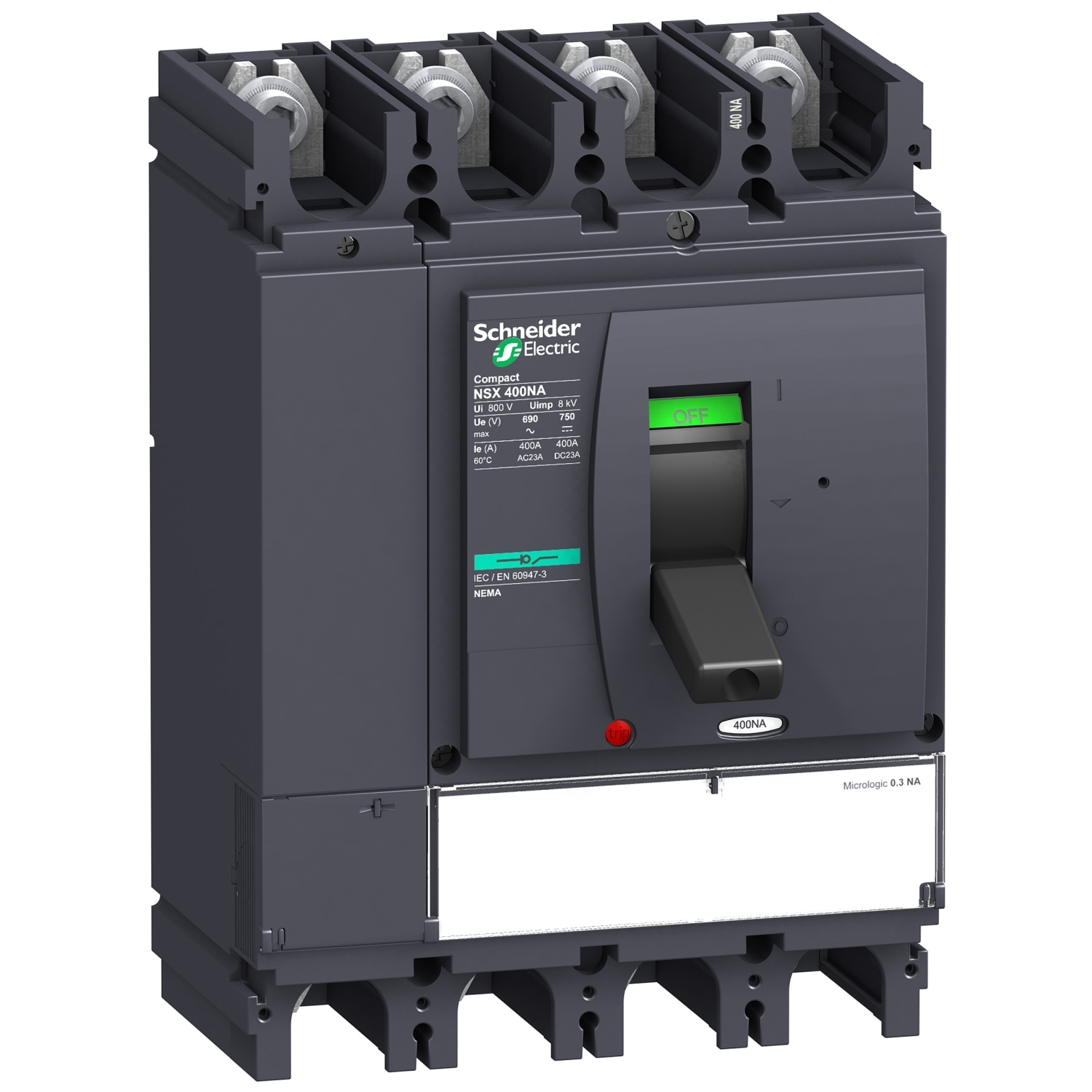

Product Name/Title: 4P Micrologic 0.3 NA Circuit Breaker | 400A Rated | Up to 50kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHLV432757
Alternatively Known As: NSX400NA Circuit Breaker, Micrologic 0.3 NA 4 Pole, Schneider NSX400NA, SCHLV432757, 400A MCCB
Technical Specifications
- Number of Poles: 4
- Rated Current: 400A
- Trip Unit: Micrologic 0.3 NA electronic
- Breaking Capacity: Up to 50kA at 415V AC
- Mounting: Fixed
- Standards: IEC 60947-2
- Application: Circuit protection and isolation
- Dimensions (H x L x W): 255mm x 110mm x 140mm
- Weight: 7.5 kg
Key Features
- Four-pole (4P) circuit breaker for comprehensive phase protection
- Micrologic 0.3 NA electronic trip unit for advanced protection and monitoring
- Rated for up to 400A
- High breaking capacity for enhanced safety
- Suitable for isolation and protection of electrical circuits
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy management and system protection, reducing downtime and waste.
- Supports safe electrical distribution, minimizing risk of electrical fires and associated environmental hazards.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4P Micrologic 0.3 NA NSX400NA Circuit Breaker (SCHLV432757) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring advanced protection and reliability.
