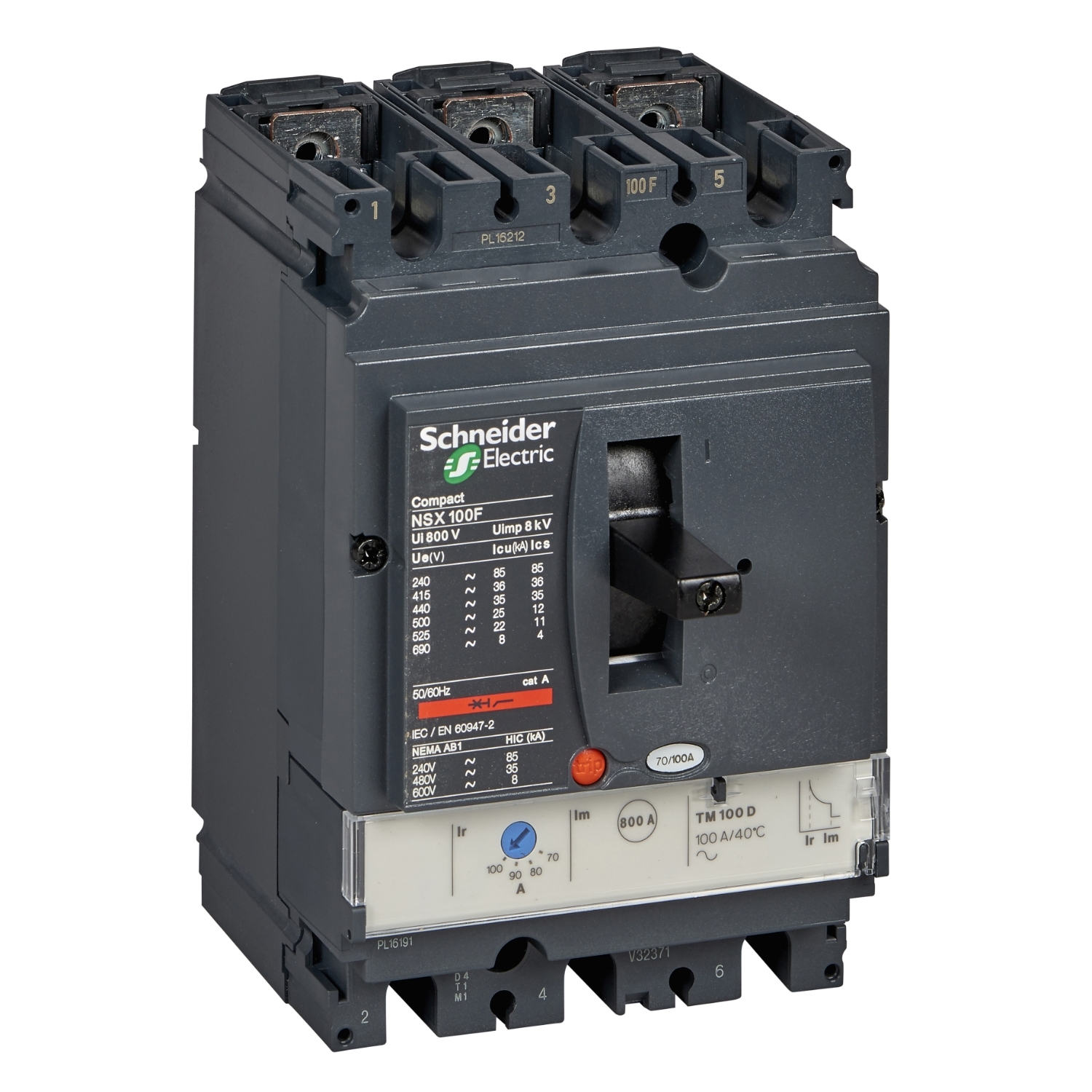

Moulded Case Circuit Breaker NSX100F 3P 100A 36kA Fixed Type Clipsal

BRAND: Clipsal
SKU: SCHBLV429630/29640
$10,559.00 List price: $13,158.20
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Moulded Case Circuit Breaker 3P 100A features 36kA breaking capacity, 240VAC rated. Suited to main switchboards and sub-mains.

Product Name/Title: Molded Case Circuit Breaker NSX100F TM100D | 3P/4P | 100A Rated | 240V AC | by Clipsal

Brand: Clipsal

SKU: SCHBLV429630/29640

Alternatively Known As: NSX100F Circuit Breaker, Schneider NSX100F, 3 Pole MCCB, 4 Pole MCCB, TM100D MCCB, NSX100F 100A Breaker

Technical Specifications
  • Type: Molded Case Circuit Breaker (MCCB)
  • Frame: NSX100F
  • Trip Unit: TM100D (Thermal Magnetic)
  • Poles: 3P/4P
  • Rated Current: 100A
  • Rated Voltage: 240V AC
  • Breaking Capacity: 36kA at 415V AC
  • Frequency: 50/60Hz
  • Mounting: Fixed
  • Standards: IEC 60947-2 compliant
  • Dimensions (H x L x W): 161mm x 86mm x 105mm
  • Weight: 2.5 kg
Key Features
  • Thermal-magnetic circuit breaker for reliable protection
  • Available in 3-pole and 4-pole configurations
  • Rated for 100A, 240V AC applications
  • Compact NSX frame for space-saving installation
  • High breaking capacity for enhanced safety
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
  • Commercial and industrial electrical distribution panels
  • Main and sub-main circuit protection
  • Switchboards in commercial buildings
  • Industrial machinery and equipment protection
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Designed for long operational life, reducing replacement frequency and waste
  • Improved energy efficiency through reliable circuit protection
Warranty Information

12 months manufacturer's warranty against defects.

Available Now

The Clipsal BTS NSX100F TM100D 3P/4P 240VA Circuit Breaker (SCHBLV429630/29640) is available for immediate purchase. Ideal for commercial and industrial electrical distribution and protection.
