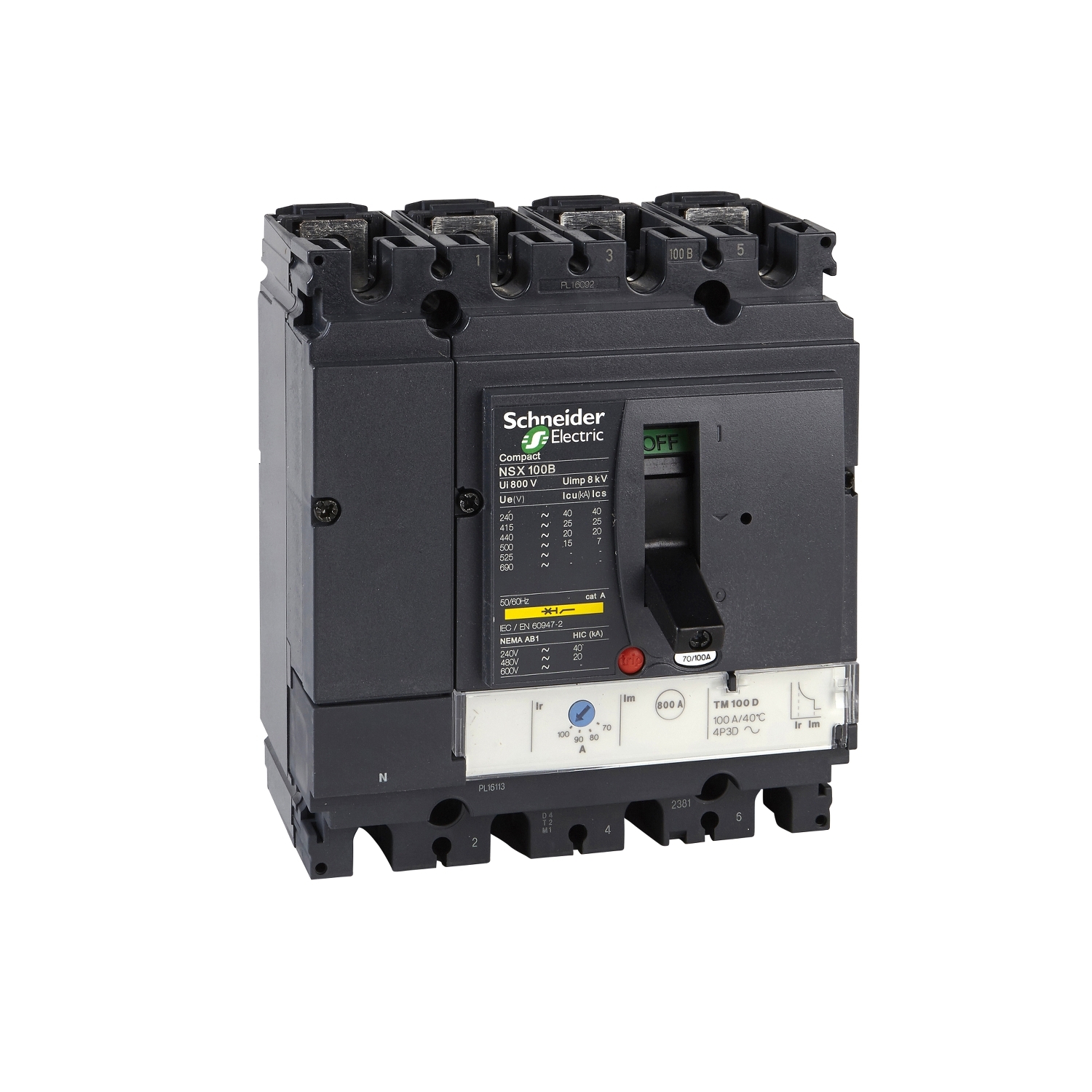

Moulded Case Circuit Breaker NSX100N 4P 100A 36kA 415VAC Clipsal

BRAND: Clipsal
SKU: SCHBLV429850/29850
$12,309.60 List price: $15,339.60
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Moulded Case Circuit Breaker 4P 100A features 36kA breaking capacity, 415VAC rated. Suited to main switchboards and sub-mains.

Product Name/Title: BTS NSX100N TM100D 4P/4P Circuit Breaker | 100A Rated Current | Thermal-Magnetic Trip | 36kA Breaking Capacity | @Each | by Clipsal

Brand: Clipsal

SKU: SCHBLV429850/29850

Alternatively Known As: NSX100N Circuit Breaker, Schneider NSX100N, 4 Pole MCCB, TM100D MCCB, 100A MCCB, NSX100N 4P/4P 240VA

Technical Specifications
  • Rated current: 100A
  • Poles: 4P/4P
  • Trip unit: TM100D (Thermal-Magnetic)
  • Breaking capacity: 36kA at 415V AC
  • Rated operational voltage: 240/415V AC
  • Frequency: 50/60Hz
  • Standards: IEC 60947-2 compliant
  • Mounting: Fixed
  • Utilization category: A
  • Dimensions (H x L x W): 161mm x 86mm x 140mm
  • Weight: 2.5 kg
Key Features
  • 100A rated current
  • 4 pole (4P/4P) configuration for comprehensive phase protection
  • Thermal-magnetic trip unit (TM100D) for reliable circuit protection
  • High breaking capacity for enhanced safety
  • Compact design for easy integration into electrical panels
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
  • Commercial and industrial electrical distribution systems
  • Panel boards and switchboards
  • Protection of electrical circuits against overloads and short circuits
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Enhances electrical safety, reducing risk of fire and equipment damage
  • Long operational life reduces replacement frequency and waste
Warranty Information

12 months manufacturer's warranty against defects.

Available Now

The Clipsal BTS NSX100N TM100D 4P/4P 240VA Circuit Breaker (SCHBLV429850/29850) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
