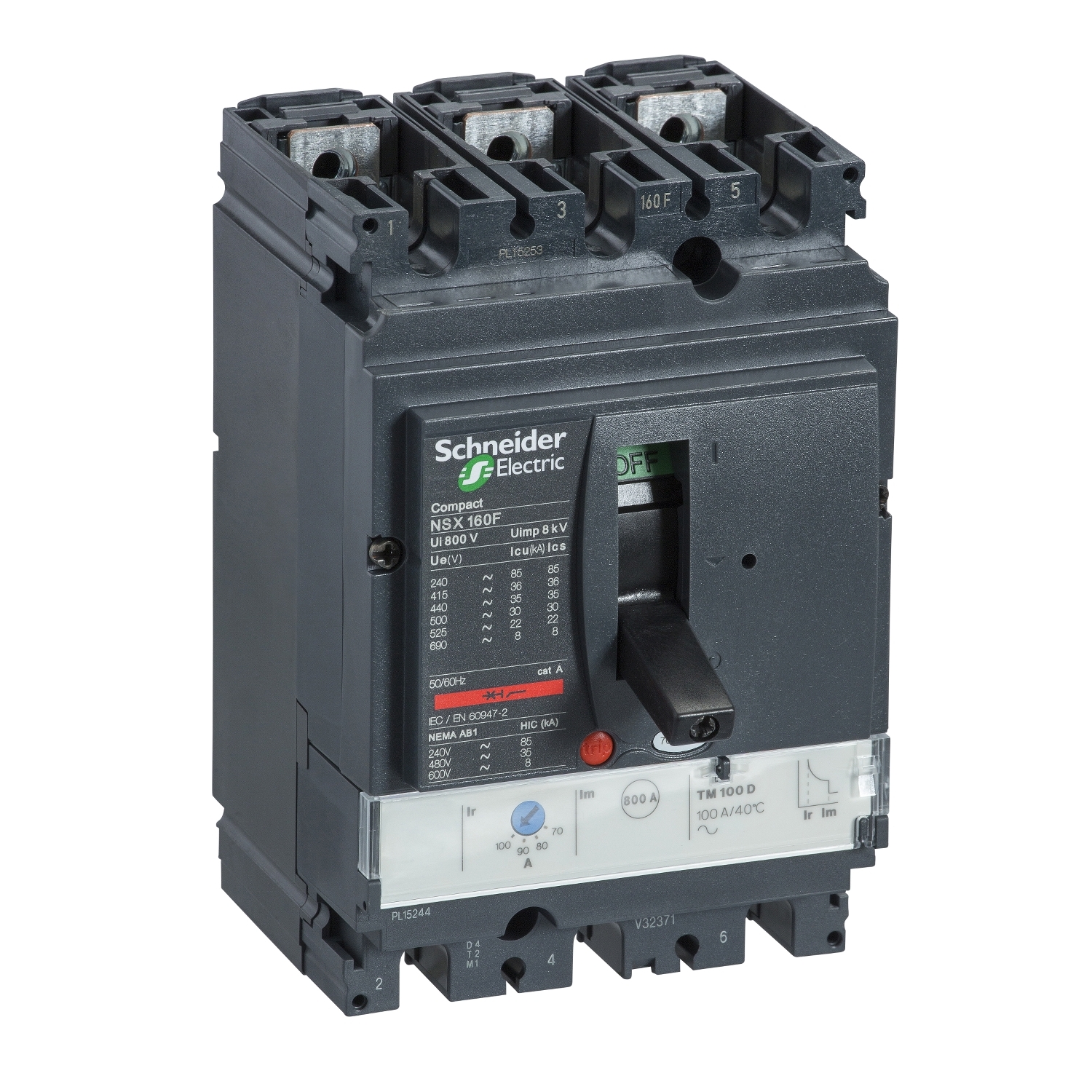

Moulded Case Circuit Breaker NSX160N 3P 160A 36kA Fixed Type Clipsal

BRAND: Clipsal
SKU: SCHBLV430840/30850
$13,334.80 List price: $16,617.20
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Moulded Case Circuit Breaker 3P 160A features 36kA breaking capacity. Suited to main switchboards and sub-mains.

Product Name/Title: Thermal Magnetic Circuit Breaker NSX160N | 3P/4P Configuration | 160A Rated Current | 36kA Breaking Capacity | @Each of 1 | by Clipsal

Brand: Clipsal

SKU: SCHBLV430840/30850

Alternatively Known As: NSX160N Circuit Breaker, Schneider NSX160N, 160A MCCB, 3P/4P MCCB, Thermal Magnetic Breaker

Technical Specifications
  • Type: Thermal-magnetic circuit breaker
  • Poles: 3P/4P
  • Rated current: 160A
  • Breaking capacity: 36kA at 415V AC
  • Rated insulation voltage: 690V
  • Rated impulse withstand voltage: 8kV
  • Trip unit: TM160D (thermal-magnetic, adjustable)
  • Frequency: 50/60Hz
  • Mounting: Fixed
  • Standards: IEC 60947-2
  • Dimensions (H x L x W): 161mm x 86mm x 105mm
  • Weight: 3.5 kg
Key Features
  • Thermal-magnetic circuit breaker for reliable circuit protection
  • 3-pole or 4-pole configuration for flexible installation
  • Rated current: 160A
  • Breaking capacity: 36kA at 415V AC
  • Adjustable thermal and magnetic trip units
  • Compact NSX design for space-saving panel integration
  • Complies with IEC 60947-2 standards
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
  • Commercial and industrial electrical distribution systems
  • Panel boards and switchboards
  • Protection of electrical circuits in buildings and infrastructure
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Enhances electrical safety, reducing risk of fire and equipment damage
  • Long operational life reduces replacement frequency and waste
Warranty Information

12 months manufacturer's warranty against defects.

Available Now

Available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring reliable circuit protection.
