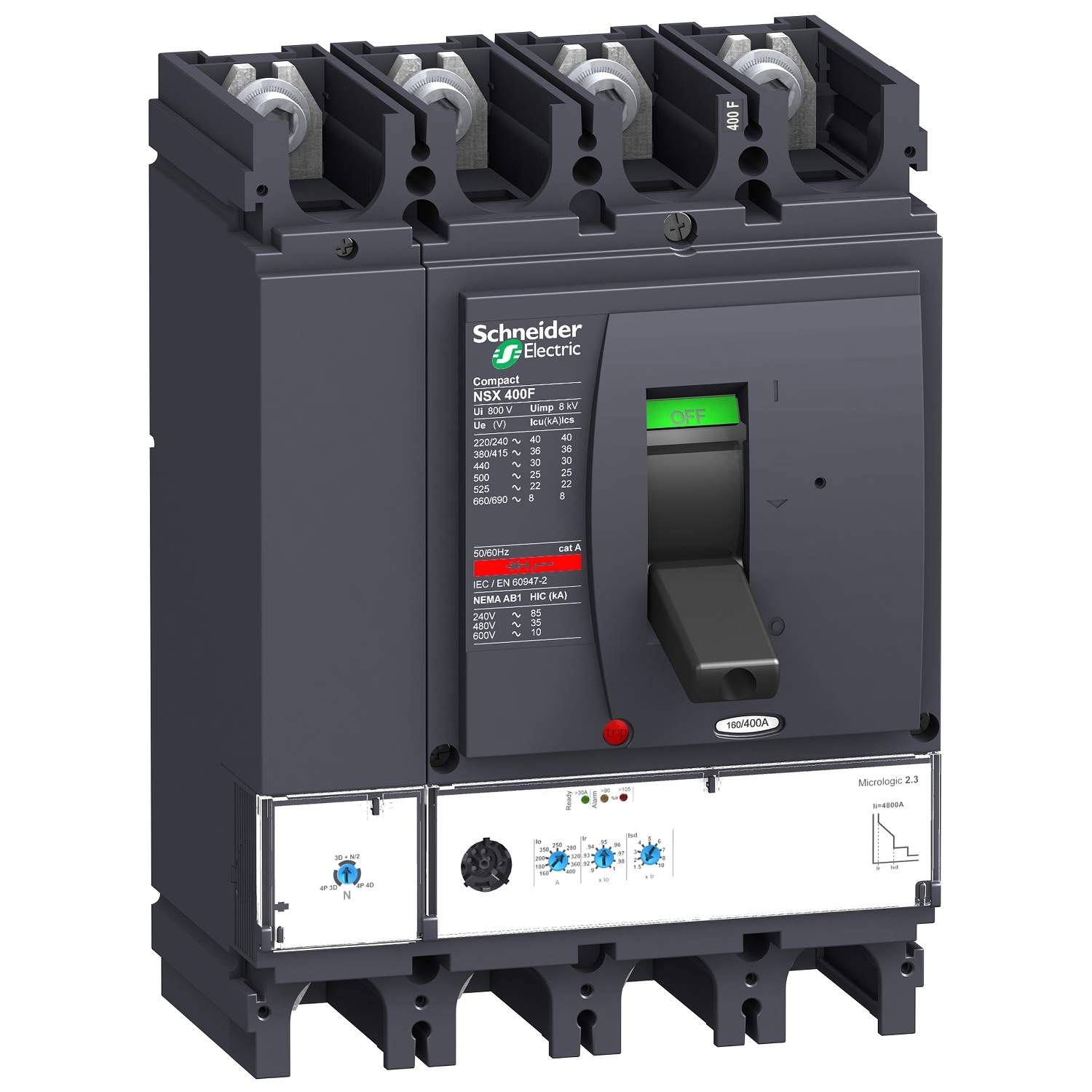

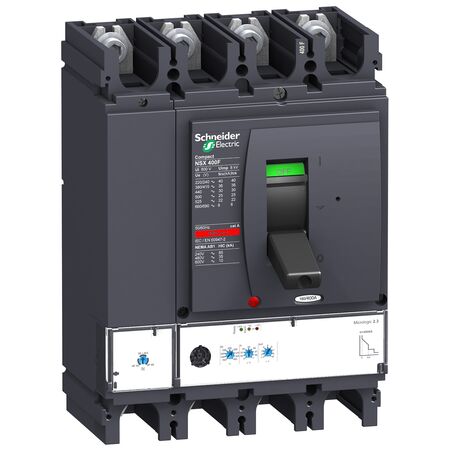

Moulded Case Circuit Breaker NSX400H 4P 400A Electronic Trip Clipsal
Clipsal Moulded Case Circuit Breaker 4P 400A features 240VAC rated. Suited to main switchboards and sub-mains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: BTS NSX400H ML2.3 4P/4P Circuit Breaker | 400A Rated Current | High Breaking Capacity | MicroLogic 2.3 Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBLV432696/32696
Alternatively Known As: NSX400H Circuit Breaker, Schneider NSX400H, 400A MCCB, 4 Pole MCCB, MicroLogic 2.3 Breaker, SCHBLV432696/32696
Technical Specifications
- Rated current: 400A
- Number of poles: 4P
- Rated operational voltage: 240VAC
- Breaking capacity: High (H)
- Trip unit: MicroLogic 2.3 electronic
- Adjustable thermal and magnetic protection
- Conforms to IEC 60947-2
- Mounting: Fixed
- Frequency: 50/60Hz
- Dimensions (H x L x W): 325mm x 140mm x 210mm
- Weight: 12 kg
Key Features
- High breaking capacity molded case circuit breaker (MCCB)
- 400A rated current with 4 pole configuration
- MicroLogic 2.3 electronic trip unit for advanced protection
- Adjustable thermal and magnetic protection settings
- Compact design for easy integration into switchboards
- Suitable for AC voltage up to 240VAC
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables safe and efficient power distribution, reducing risk of electrical fires and equipment damage.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal BTS NSX400H ML2.3 4P/4P 240VAC Circuit Breaker (SCHBLV432696/32696) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
