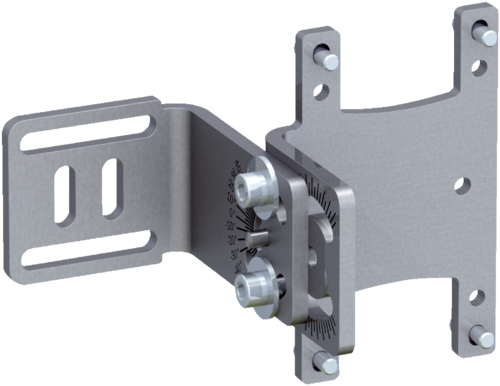

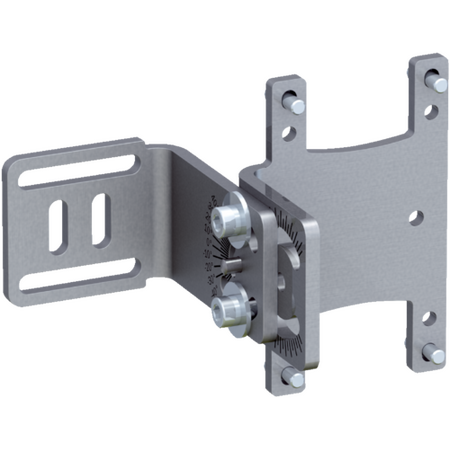

Mounting Bracket Set with Inclination Angle –40° to 40° Tilt Sick
Mounting Bracket Set with Inclination Angle, –40° to 40° Tilt, Includes Cooling Plate & Angle Display by Sick.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adjustable sensor mounting bracket, Tilt angle mounting bracket, Sensor bracket with angle display
Technical Specifications
- Mounting system type: Brackets
- Accessory group: Mounting systems
- Accessory family: Brackets
- Operating temperature range: 0 °C to +40 °C (some models up to +50 °C)
- Inclination angle range: –40° to 40°
- Includes cooling plate and angle display
- Dimensions (H x L x W): 100mm x 120mm x 150mm
- Weight: 1.2 kg
Key Features
- Includes mounting bracket and cooling plate
- Angle display for precise setting of tilt angle between –40° and 40°
- Suitable for ambient operating temperatures from 0 °C to +40 °C (up to +50 °C in some cases)
- Compatible with Lector63x, Inspector63x, Lector83x, and Inspector83x sensor models
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with sensor mounting and alignment to ensure proper function and safety.
Applications
- Mounting and positioning of Lector63x and Inspector63x sensor series
- Mounting and positioning of Lector83x and Inspector83x sensor series
- Industrial automation requiring adjustable sensor mounting with tilt angle control
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Enables precise sensor positioning to optimize system efficiency and reduce energy waste
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK warranty terms for details.
Available Now
The SICK Mounting Bracket Set with Inclination Angle –40° to 40° is available now for immediate purchase. Ideal for industrial automation and sensor mounting applications requiring precise tilt adjustment.
