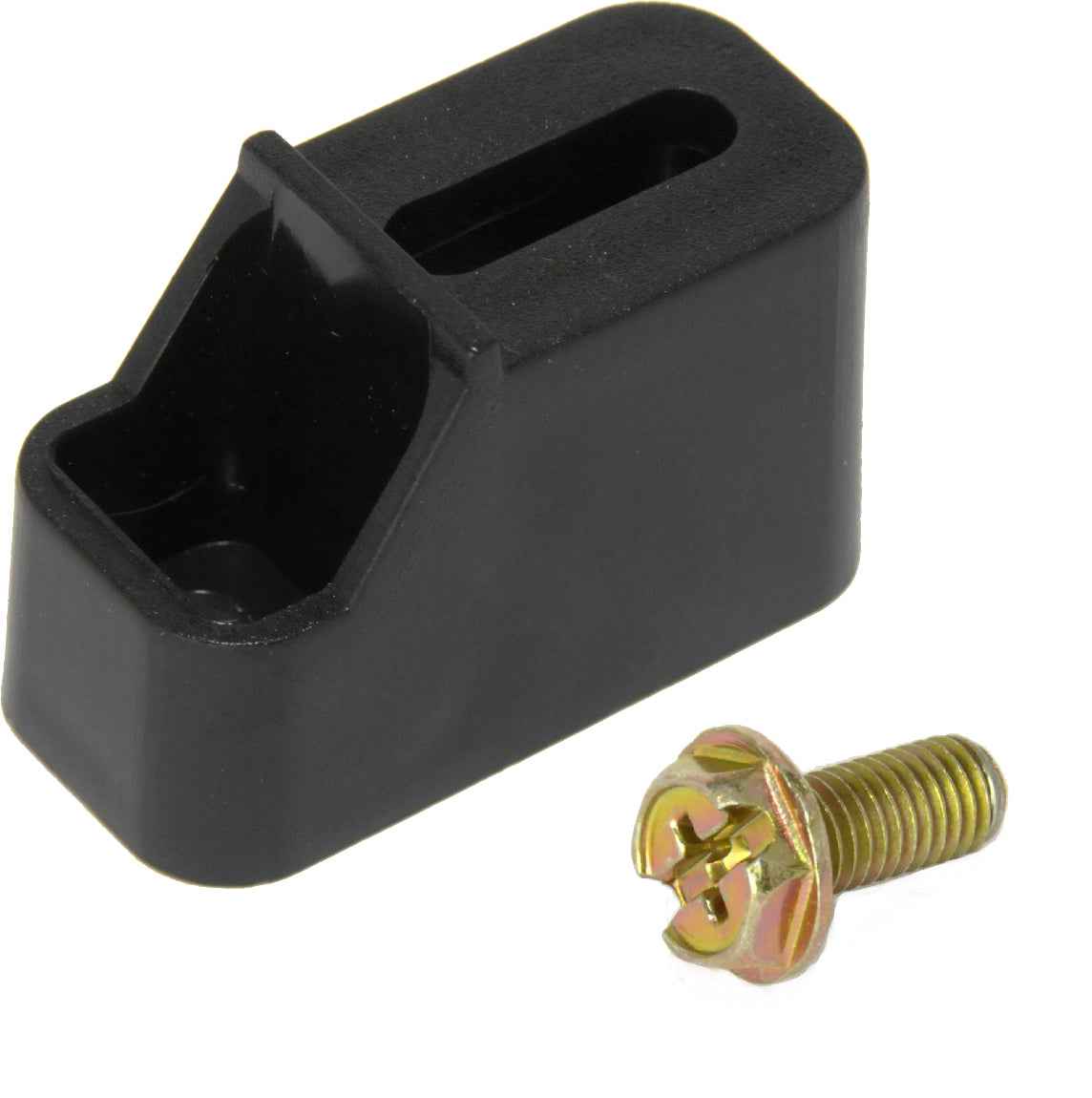

Mounting Feet to Suit 250A/400A Earth Bar 5mm Screw Tobin
Tobin mounting feet to Suit 250A & 400A switchboard earth bars, c/w 5mm screw. Minimum 2 per bar. Switchboard-building accessory.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Earth Bar Mounting Feet, Switchboard Earth Bar Insulator Feet, Tobin INSF-M5S
Technical Specifications
- Product Code: INSF-M5S
- Compatible Equipment: Tobin 250A and 400A earth bars
- Fastener: 5mm screw included
- Pack Configuration: One set of two mounting feet with screws
- Minimum Quantity: Two mounting feet per earth bar
- Product Type: Switchboard-building accessory
- Dimensions (H x L x W): 15mm x 25mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed for Tobin 250A and 400A earth bars
- Includes 5mm mounting screws
- Supplied as a set of two
- Supports secure mounting of earth bars within switchboards
- Suitable for switchboard fabrication and assembly work
Professional Installation Requirements
- Installation should be carried out by a suitably qualified electrical tradesperson or switchboard builder. The completed switchboard assembly must be designed, assembled and verified in accordance with applicable electrical installation and switchboard requirements.
Applications
- Mounting 250A earth bars in switchboards
- Mounting 400A earth bars in switchboards
- Switchboard fabrication and electrical enclosure assembly
- Replacement of damaged or missing earth bar mounting feet
Standards & Compliance
- For use as a component within switchboard assemblies designed and verified to AS/NZS 61439.1 and AS/NZS 61439.2; no separate standalone certification for the mounting-foot accessory was located.
- Installation and earthing arrangements should also comply with applicable requirements of AS/NZS 3000.
Environmental Benefits
- Small replaceable accessory that can extend the service life of an existing earth-bar assembly
- Reusable mounting hardware can reduce replacement of complete earth bars or switchboard components
- Plastic insulating components and metal screws may be separable for appropriate end-of-life recycling, subject to local facilities
Warranty Information
Tobin publishes a 24-month replacement warranty for its GEN3 industrial switchgear. Specific warranty coverage for the INSF-M5S mounting-foot accessory should be confirmed with Tobin or the supplying distributor.
Available Now
Available through Tobin Electrical Components and authorised Australian electrical distributors.
