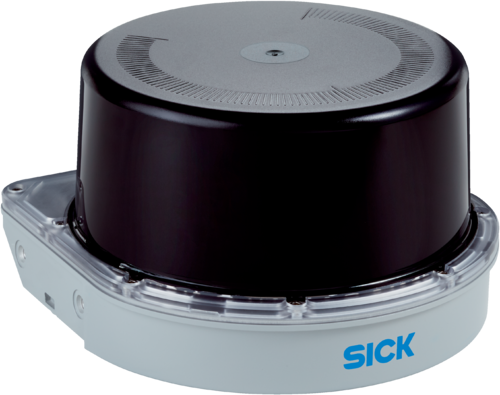

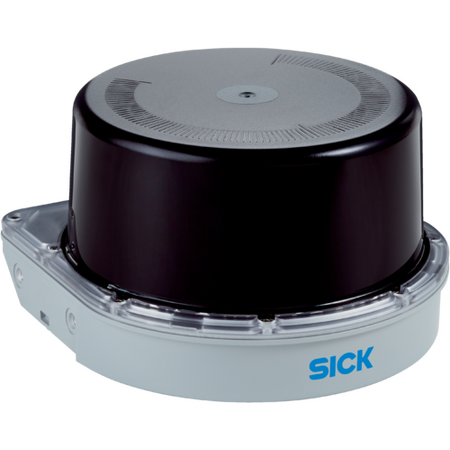

MRS1104C LiDAR Sensor HDDM+ Measurement IP65 & IP67 Rated SICK
The SICK MRS1104C LiDAR Sensor utilizes HDDM+ measurement technology with an infrared light source for precise distance measurement and object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- Horizontal angular resolution: 0.0625°, interlaced
- Vertical angular resolution: 2.5°
- Scanning frequency: 50 Hz, 4 x 12.5 Hz
- Working range: 0.2 m to 64 m
- Scanning range at 10% remission factor: 16 m
- Scanning range at 90% remission factor: 30 m
- Spot size: 10.4 mrad x 8.7 mrad
- Amount of evaluated echoes: 3
- Connection type: M12 round connectors with swivel connector
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 13 W, max 37 W, start-up max 30 W for 1 s
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- MTBF: 50 years
- MTTFD: > 100 years
- Output data: Contamination indication, IMU (secondary sensor data)
- Scan/frame rate: 55,000 to 165,000 measurement points per second
- Response time: 4 layers typical 20 ms, 1 layer typical 80 ms
- Systematic error: ± 60 mm
- Statistical error: ≤ 30 mm
- Number of field sets: Up to 64
- Simultaneous evaluation cases: Up to 16
- Filters: Fog, particle, average, median, ground reference, edge, echo
- Ethernet: TCP/IP, UDP/IP, 10/100 MBit/s
- Digital inputs/outputs: 8 multiport I/O
- Optical indicators: 2 LEDs
- Configuration software: SOPAS ET, web server display
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: 80 klx
- Vibration resistance: 10 Hz to 150 Hz, 5 g, 20 frequency cycles
- Shock resistance: 15 g, 11 ms, 6 single shocks per axis; 10 g, 16 ms, 1000 continuous shocks per axis
- Dimensions (H x L x W): 92.5mm x 152mm x 150mm
- Weight: 1.2 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- Wide aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- High scanning frequency: 50 Hz with 4 x 12.5 Hz layers
- Self-heating for stable operation
- Working range from 0.2 m up to 64 m
- Multiple echo evaluation with up to 3 echoes
- Robust housing with IP65 and IP67 protection ratings
- Supply voltage range: 10 V DC to 30 V DC
- Low power consumption with typical 13 W
- Advanced filtering options including fog, particle, average, median, ground reference, edge, and echo filters
- Ethernet interface with TCP/IP and UDP/IP support
- Configuration via SOPAS ET software and web server display
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Outdoor and indoor distance measurement and object detection
- Industrial automation and safety monitoring
- Environmental scanning and mapping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable housing extends product lifespan, reducing waste
- Advanced filtering improves measurement accuracy in adverse environmental conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MRS1104C-111011 LiDAR sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
