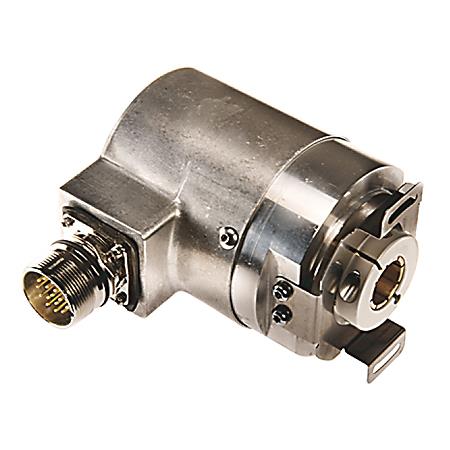

Product Name/Title: Allen-Bradley 842HR Multi-Turn Sine Cosine Serial Encoder
Brand: Allen-Bradley
SKU: 842HRMJDN115FWYD
Alternatively Known As: 842HR Encoder, Multi-Turn Serial Encoder, Sine Cosine Encoder
Technical Specifications
- Multi-turn capability: 4096 turns
- Connector type: M23 17-pin
- Power supply: 5-12 VDC
- Output: Sine cosine and serial signals
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Multi-turn encoder with 4096 turns capability
- Sine cosine output with serial communication
- M23 17-pin connector for robust connectivity
- Operates on 5-12 VDC power supply
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems to ensure proper integration and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Position sensing in manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by providing accurate position feedback to optimize machine operation
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 842HR Multi-Turn Sine Cosine Serial Encoder is available now for immediate purchase, ideal for industrial automation and precise position sensing applications.
