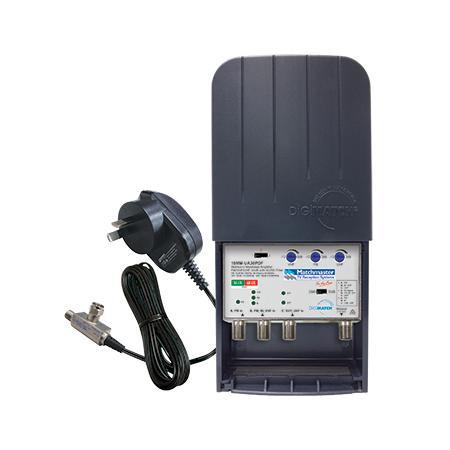

Masthead Amplifier 30dB-Gain UA30PDF-Variant Matchmaster
Multiband masthead amplifier with 30dB gain and FM BI VHF UHF frequency range—ideal for enhancing TV reception in homes and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Amplifier gain: 30dB with selectable max gain of 20dB or 30dB
- Individual 12dB attenuation adjustment per band (FM, BI, VHF, UHF)
- Frequency ranges: FM 88-108 MHz, BI 44-68 MHz, VHF 174-230 MHz, UHF 470-694 MHz
- 4G/5G LTE filter attenuation >50dB at 750MHz
- Return loss: VHF >13dB, UHF >11dB, Output >12dB typical
- Noise figure: ≤5 dB (overall), <2.9 dB for UHF
- Output level: >102 dBuV
- Impedance: 75 Ohm
- Power consumption: 120 mA
- Connectors: All 'F' female connectors, antenna port 'F' male, TV port 'F' female
- Housing: Nickel plated alloy diecast and waterproof ABS plastic
- Power supply: 190-240V AC/50-60 Hz input, 14V DC/300 mA output
- DC cable length: 1.8m
- Dimensions (H x L x W): 108mm x 50mm x 123mm
- Weight: 0.3 kg
Key Features
- 30dB multiband individually filtered FM/VHF/UHF amplifier
- Built-in 4G/5G LTE filter from 694MHz with >50dB attenuation at 750MHz
- Maximum gain selectable between 20dB and 30dB with individual 12dB attenuation per band
- Heavy-duty UV stable outdoor weatherproof casing
- Includes 14V DC power supply and mounting cable ties
- VHF input return loss >13dB, UHF return loss >11dB
- Noise figure <2.9dB for UHF
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal signal performance and compliance with electrical safety standards.
Applications
- Suitable for FM, BI, VHF, and UHF antenna systems
- Ideal for regions requiring multiband amplification with 4G/5G interference filtering
- Outdoor use with weatherproof casing for residential and commercial TV antenna setups
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces signal loss and interference, improving energy efficiency of TV reception systems
- Durable weatherproof design extends product lifespan, reducing waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Matchmaster Multiband Masthead Amplifier FM/BI/VHF/UHF 30dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for enhancing TV signal reception in residential and commercial outdoor antenna systems.
