Multiband Masthead Amplifier 30dB | FM/BI/VHF/UHF | 4G/5G Filter | Power Supply by Matchmaster
Multiband masthead amplifier with 30dB gain and FM/BI/VHF/UHF frequency range—ideal for enhancing TV reception in homes and commercial settings. Built for signal clarity, with a 4G/5G filter and included power supply for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

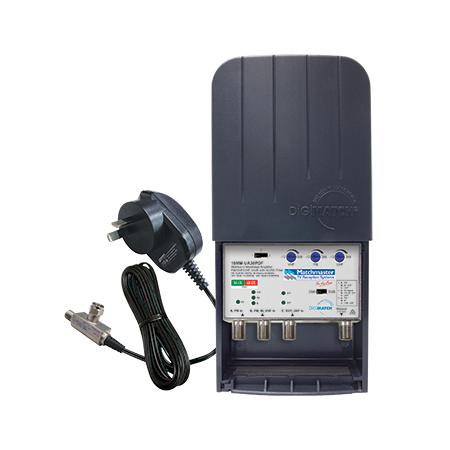

Product Name/Title: Multiband Masthead Amplifier FM/BI/VHF/UHF 30dB with 4G/5G Filter and Power Supply
Brand: Matchmaster
SKU: 10MM-UA30PDF
Alternatively Known As: Multiband TV Amplifier, Masthead TV Amplifier, FM VHF UHF Amplifier with 4G/5G Filter, Outdoor TV Signal Booster
Technical Specifications
- Amplifier gain: 30dB with selectable max gain of 20dB or 30dB
- Individual 12dB attenuation adjustment per band (FM, BI, VHF, UHF)
- Frequency ranges: FM 88-108 MHz, BI 44-68 MHz, VHF 174-230 MHz, UHF 470-694 MHz
- 4G/5G LTE filter attenuation >50dB at 750MHz
- Return loss: VHF >13dB, UHF >11dB, Output >12dB typical
- Noise figure: ≤5 dB (overall), <2.9 dB for UHF
- Output level: >102 dBuV
- Impedance: 75 Ohm
- Power consumption: 120 mA
- Connectors: All 'F' female connectors, antenna port 'F' male, TV port 'F' female
- Housing: Nickel plated alloy diecast and waterproof ABS plastic
- Power supply: 190-240V AC/50-60 Hz input, 14V DC/300 mA output
- DC cable length: 1.8m
- Dimensions (H x L x W): 108mm x 50mm x 123mm
- Weight: 0.3 kg
Key Features
- 30dB multiband individually filtered FM/VHF/UHF amplifier
- Built-in 4G/5G LTE filter from 694MHz with >50dB attenuation at 750MHz
- Maximum gain selectable between 20dB and 30dB with individual 12dB attenuation per band
- Heavy-duty UV stable outdoor weatherproof casing
- Includes 14V DC power supply and mounting cable ties
- VHF input return loss >13dB, UHF return loss >11dB
- Noise figure <2.9dB for UHF
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal signal performance and compliance with electrical safety standards.
Applications
- Suitable for FM, BI, VHF, and UHF antenna systems
- Ideal for regions requiring multiband amplification with 4G/5G interference filtering
- Outdoor use with weatherproof casing for residential and commercial TV antenna setups
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces signal loss and interference, improving energy efficiency of TV reception systems
- Durable weatherproof design extends product lifespan, reducing waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Matchmaster Multiband Masthead Amplifier FM/BI/VHF/UHF 30dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for enhancing TV signal reception in residential and commercial outdoor antenna systems.
