Multiband Masthead Amplifier UHF 34dB | 4G/5G Filter | 12V DC Power by Matchmaster
Multiband masthead amplifier with 34dB UHF gain and built-in 4G/5G filter—ideal for enhancing TV signal reception. Built for residential and commercial use, with 12V DC power supply for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

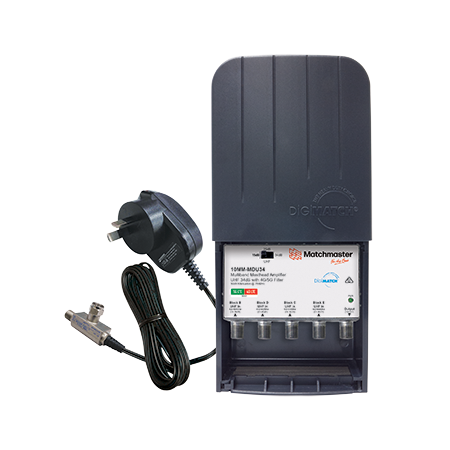

Product Name/Title: Multiband Masthead Amplifier UHF 34dB with 4G/5G Filter and Power Supply
Brand: Matchmaster
SKU: 10MM-MDU34P
Alternatively Known As: UHF Masthead Amplifier, Multiband TV Signal Amplifier, 4G/5G Filtered Masthead Amp, Outdoor TV Antenna Amplifier
Technical Specifications
- Amplifier with 4 UHF band inputs: Block B (526-568 MHz, CH 28-33), Block C (568-610 MHz, CH 34-39), Block D (610-652 MHz, CH 40-45), Block E (652-694 MHz, CH 46-51)
- Selectable UHF Gain: 15/25/34dB
- Output to system with 14VDC input
- Return loss: >12dB typical
- Output level: >102dBuV
- Noise figure: <=5 dB
- Impedance: 75 Ohm
- Power consumption: 90 mA
- All 'F' female connectors
- Alloy diecast housing dimension: 93 x 66 x 21.5 mm
- Waterproof ABS plastic housing dimension: 123 x 108 x 50 mm
- Power supply: 190-240V AC/50-60 Hz input, DC 14V/300 mA output
- Antenna port: 'F' male, TV port: 'F' female
- Nickel plated alloy housing
- DC cable length: 1.8m
- Dimensions (H x L x W): 108mm x 50mm x 123mm
- Weight: 0.3 kg
Key Features
- Individual UHF block filters B, C, D & E with inbuilt 4G/5G LTE filter
- 34dB maximum gain with selectable adjustment switch (15, 25, 34dB)
- Filtering at 700MHz >50dB at max gain for blocks B, C & D and >50dB at 750MHz for block E

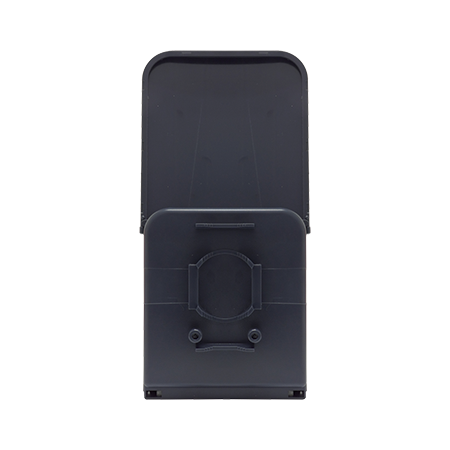

- Heavy-duty UV stable outdoor weatherproof casing
- Includes 14VDC power supply and cable ties for mounting
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Residential: Enhance TV signal reception in homes
- Commercial: Improve broadcast signal quality in offices and commercial buildings
- Outdoor: Suitable for outdoor antenna installations requiring UHF amplification
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces signal loss and interference, improving energy efficiency of TV reception systems
- Durable weatherproof casing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster Multiband Masthead Amplifier UHF 34dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for residential and commercial outdoor antenna installations requiring enhanced UHF signal reception.
