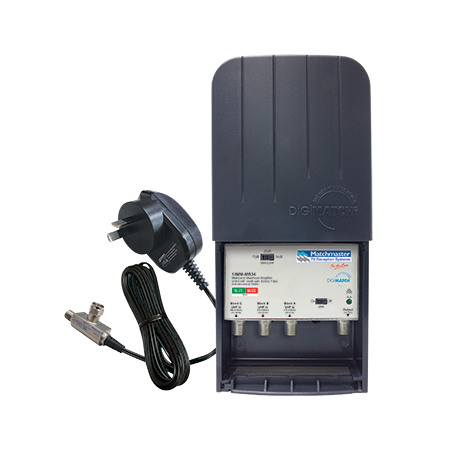

Multiband Masthead Amplifier VHF/UHF 34dB | 4G/5G Filter | Power Supply Included by Matchmaster
Multiband masthead amplifier with 34dB gain and integrated 4G/5G filter—ideal for boosting TV signals in homes and commercial spaces. Built for VHF/UHF frequencies, with included power supply for enhanced reception.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multiband Masthead Amplifier VHF/UHF 34dB with 4G/5G Filter and Power Supply
Brand: Matchmaster
SKU: 10MM-MB34P
Alternatively Known As: VHF/UHF Masthead Amplifier, Multiband TV Signal Amplifier, 4G/5G Filtered Masthead Amp, Outdoor TV Antenna Amplifier
Technical Specifications
- Amplifier with 1 VHF input Block A (170-240 MHz, CH 6-13)
- 1 UHF input Block B (526-568 MHz, CH 28-33)
- 1 UHF input Block C (568-610 MHz, CH 34-39)
- Gain switchable between 15, 25, and 34 dB
- VHF input with ON-OFF switch
- Output level >102 dBuV
- Noise figure ≤5 dB
- Impedance 75 Ohm
- Power consumption 90 mA
- All 'F' female connectors
- Nickel plated alloy housing
- DC cable length 1.8m
- Power supply: 190-240V AC/50-60 Hz input, DC 14V/300 mA output
- Dimensions (H x L x W): 108mm x 50mm x 123mm
- Weight: 0.3 kg
Key Features
- Independent Block A, B & C inputs compatible with VHF or UHF antennas or both
- Built-in 4G and 5G LTE filter from 610MHz with >50dB attenuation at 700MHz
- Gain adjustment switch selectable between 15, 25, and 34dB

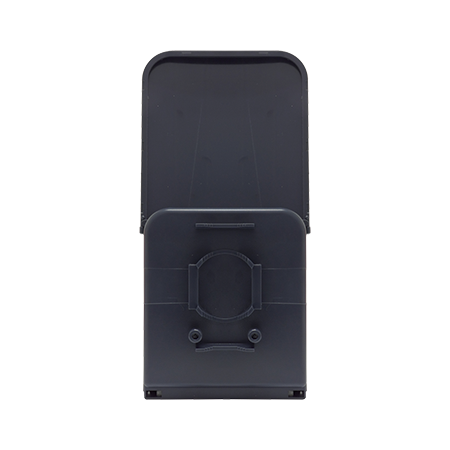

- Heavy-duty UV stable outdoor weatherproof casing
- Includes 14V DC power supply and cable ties for mounting
- VHF input return loss >13dB and UHF return loss >11dB
- Noise figure <2.9dB for UHF
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal signal performance and compliance with electrical safety standards.
Applications
- Residential: Enhance TV signal reception in homes
- Commercial: Improve broadcast signal quality in offices and retail spaces
- Outdoor: Suitable for outdoor antenna installations requiring robust amplification
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves signal quality reducing the need for multiple repeaters and additional equipment
- Energy-efficient power consumption at 90 mA
- Durable weatherproof casing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty terms for details.
Available Now
The Matchmaster Multiband Masthead Amplifier VHF/UHF 34dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for residential and commercial antenna signal enhancement applications.
