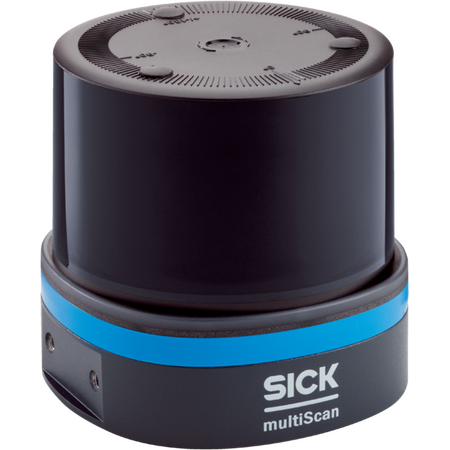

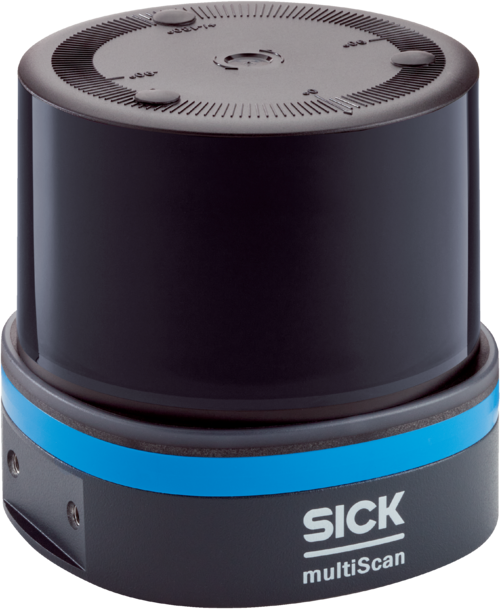

multiScan136 Laser Scanner 360° Horizontal Aperture IP65 IP67 IP69K Rated Variant-1 SICK
The multiScan136 Laser Scanner is designed for precise measurement in various applications, featuring a 360° horizontal aperture angle and a robust IP65 IP67 IP69K
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Statistical measurement procedure
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 360°, Vertical 65°
- Scanning frequency: 20 Hz
- Angular resolution: Horizontal 0.125°, 1°, 0.5°; Vertical approx. 2.5° to 5°
- Working range: 0.05 m to 60 m
- Spot size: 5.3 mrad (0.3°) to 7.5 mrad
- Amount of evaluated echoes: 3
- Connection type: 2 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 10 W, max 35 W for 5 s
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65, IP67, IP69, IPX9K
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- Scan/frame rate: 216,000 to 648,000 measurement points per second
- Response time: ≤ 50 ms
- Systematic error: ± 50 mm
- Statistical error: ≤ 15 mm
- Interfaces: Ethernet TCP/IP, UDP/IP, 100 Mbit/s
- Digital inputs/outputs: 8 I/O depending on system plug
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Permissible relative humidity: ≤ 90% non-condensing
- Dimensions (H x L x W): 99mm x 100mm x 100mm
- Weight: 0.7 kg
Key Features
- 360° horizontal aperture angle with 65° vertical aperture
- Infrared light source (850 nm) with laser class 1 safety
- High scanning frequency of 20 Hz
- Multiple angular resolution options including 0.125° and 1°
- Working range from 0.05 m up to 60 m
- Robust housing with IP65, IP67, IP69, and IPX9K ratings
- Supports multi-echo technology and reflector detection
- Ethernet interface with 100 Mbit/s data transmission
- Shock and vibration resistant for harsh environments
- Operating temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical standards to ensure compliance and optimal performance.
Applications
- Indoor and outdoor environments
- Automotive applications
- Agricultural and forestry machinery
- Earthmoving and construction machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption
- Durable housing minimizes waste through extended product life
- Supports precise measurement reducing resource waste in applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MULS1AA-112211 multiScan136 laser scanner is available for immediate purchase, ideal for industrial, automotive, agricultural, and construction applications requiring precise and reliable scanning.
