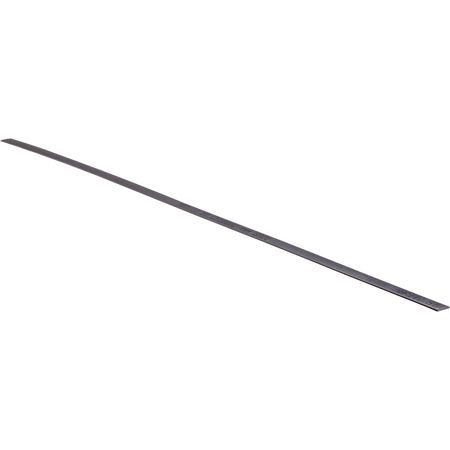

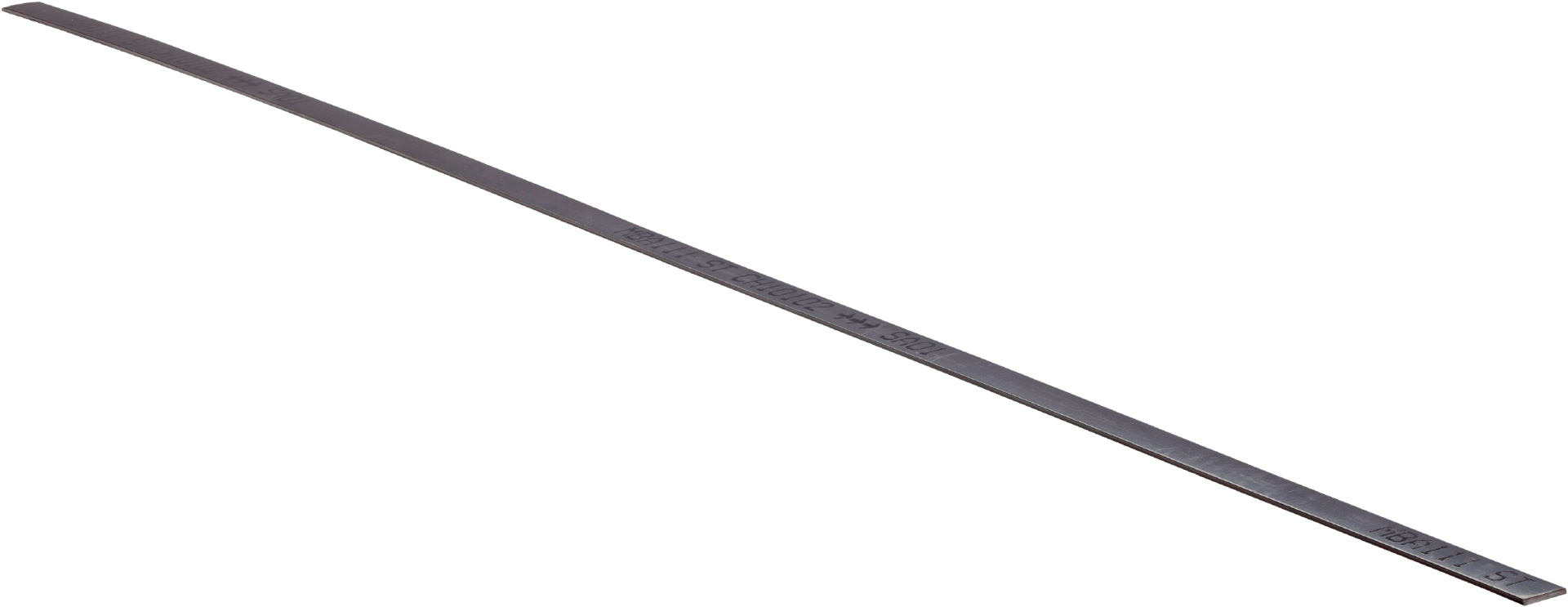

MVM-2M5-2MC-MKLB Magnets
The SICK MVM-2M5-2MC-MKLB is a 2.5 meter long magnetic tape made from hard ferrite material, designed for industrial magnetic sensing applications with high
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MVM-2M5-2MC-MKLB | Magnets
Brand: SICK
SKU: 6037420
Alternatively Known As: Magnetic tape, Magnetic strip, Magnetic encoder tape, Industrial magnetic tape
Technical Specifications
- Magnetic tape length: 2.5 m
- Magnetic tape width: 10 mm
- Weight: 0.18 kg/m
- Magnetic tape material: 17410 hard ferrite 9/28 P
- Substrate tape material: steel
- Period length: 1 mm
- Operating temperature range: -20°C to 100°C
- Storage temperature range: -30°C to 100°C
- Temperature coefficient: (11 ± 1) μm/K/m
- Dimensions (H x L x W): 1mm x 2500mm x 10mm
- Weight: 0.45 kg
Key Features
- Magnetic tape length of 2.5 meters
- Magnetic tape width of 10 mm
- Made from 17410 hard ferrite 9/28 P material
- Steel substrate tape for durability
- Operating temperature range from -20°C to 100°C
- Temperature coefficient of (11 ± 1) μm/K/m
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with magnetic sensor systems to ensure proper alignment and secure mounting.
Applications
- Industrial automation and sensor systems
- Position sensing and measurement
- Magnetic encoding and detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Compliant with China RoHS, ensuring reduced hazardous substances.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK MVM-2M5-2MC-MKLB magnetic tape is available for immediate purchase, ideal for industrial automation and sensor applications.
