MX Shunt Trip Release | 220-415VAC DC | DIN Rail Mount | Clipsal
MX shunt trip release with 220-415VAC DC control voltage and DIN rail mount—ideal for small commercial and residential circuit protection. Built for compatibility with Acti9 products, featuring local signalling and OC contact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

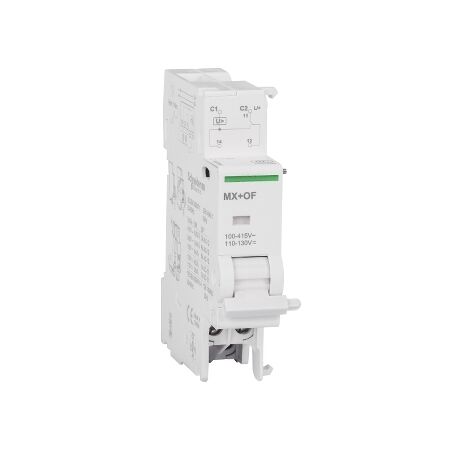

Product Name/Title: Acti9, MX Shunt Trip, MX plus 1 OF 220-415VAC DC
Brand: Clipsal
SKU: A9N26946
Alternatively Known As: MX Shunt Trip, Acti9 Shunt Trip Release
Technical Specifications
- Rated current: 3 A at 415 V, 6 A at <= 240 V AC.
- Control circuit voltage: 100...415 V AC 50/60 Hz, 110...130 V DC.
- Tropicalisation: 2 conforming to EN/IEC 60947-5-1.
- Relative humidity: 95 % at 55 °C.
- Ambient air temperature for operation: -25...50 °C.
- Ambient air temperature for storage: -40...85 °C.
- Signal contacts composition: 1 C/O.
- Mounting support: 35 mm symmetrical DIN rail.
- Dimensions (H x L x W): 82.5mm x 73.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Shunt trip release with OC contact.
- Compatible with various Acti9 products.
- Fixed mounting mode on 35 mm symmetrical DIN rail.
- Local signalling with action indicator.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential applications requiring circuit protection.
Standards & Compliance
- Complies with EN/IEC 60947-1 for safety and performance standards.
Environmental Benefits
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 MX Shunt Trip Release is available now for immediate purchase. Ideal for small commercial and residential applications.
