MX Shunt Trip Release 24V AC/DC | OC Contact | DIN Rail Mount | Clipsal
MX shunt trip release with OC contact and 24V AC/DC compatibility—ideal for residential and small commercial applications. Built for safety and reliability, with fixed DIN rail mounting and local signalling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

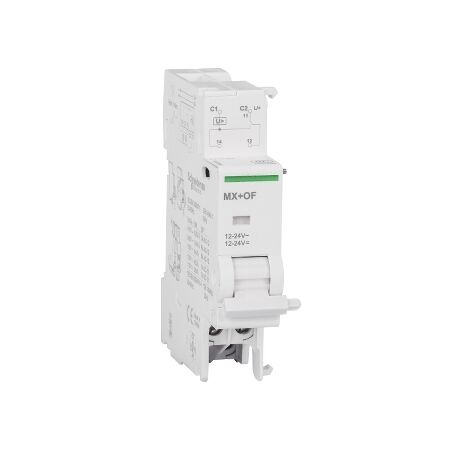

Product Name/Title: Acti9, MX Shunt Trip, MX plus 1 OF 24VAc DC
Brand: Clipsal
SKU: A9N26948
Alternatively Known As: MX Shunt Trip, Acti9 Shunt Trip Release, MX + OF
Technical Specifications
- Control circuit voltage: 12...24 V AC 50/60 Hz, 12...24 V DC
- Signal contacts composition: 1 C/O
- Tropicalisation: 2 conforming to EN/IEC 60947-5-1
- Relative humidity: 95% at 55 °C
- Ambient air temperature for operation: -25...50 °C
- Ambient air temperature for storage: -40...85 °C
- Standards: EN/IEC 60947-1
- Dimensions (H x L x W): 82.5mm x 73.5mm x 18mm
- Weight: 0.065 kg
Key Features
- Shunt trip release with OC contact
- Compatible with various Acti9 products
- Fixed mounting mode on 35 mm symmetrical DIN rail
- Local signalling with action indicator
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and small commercial buildings
Standards & Compliance
- Complies with EN/IEC 60947 for safety and performance standards.
Environmental Benefits
- Green Premium product status
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 MX Shunt Trip Release 24V AC/DC is available now for immediate purchase. Ideal for residential and small commercial applications.
