MZ2Q-FTZPS-KP0 | Cylinder sensors

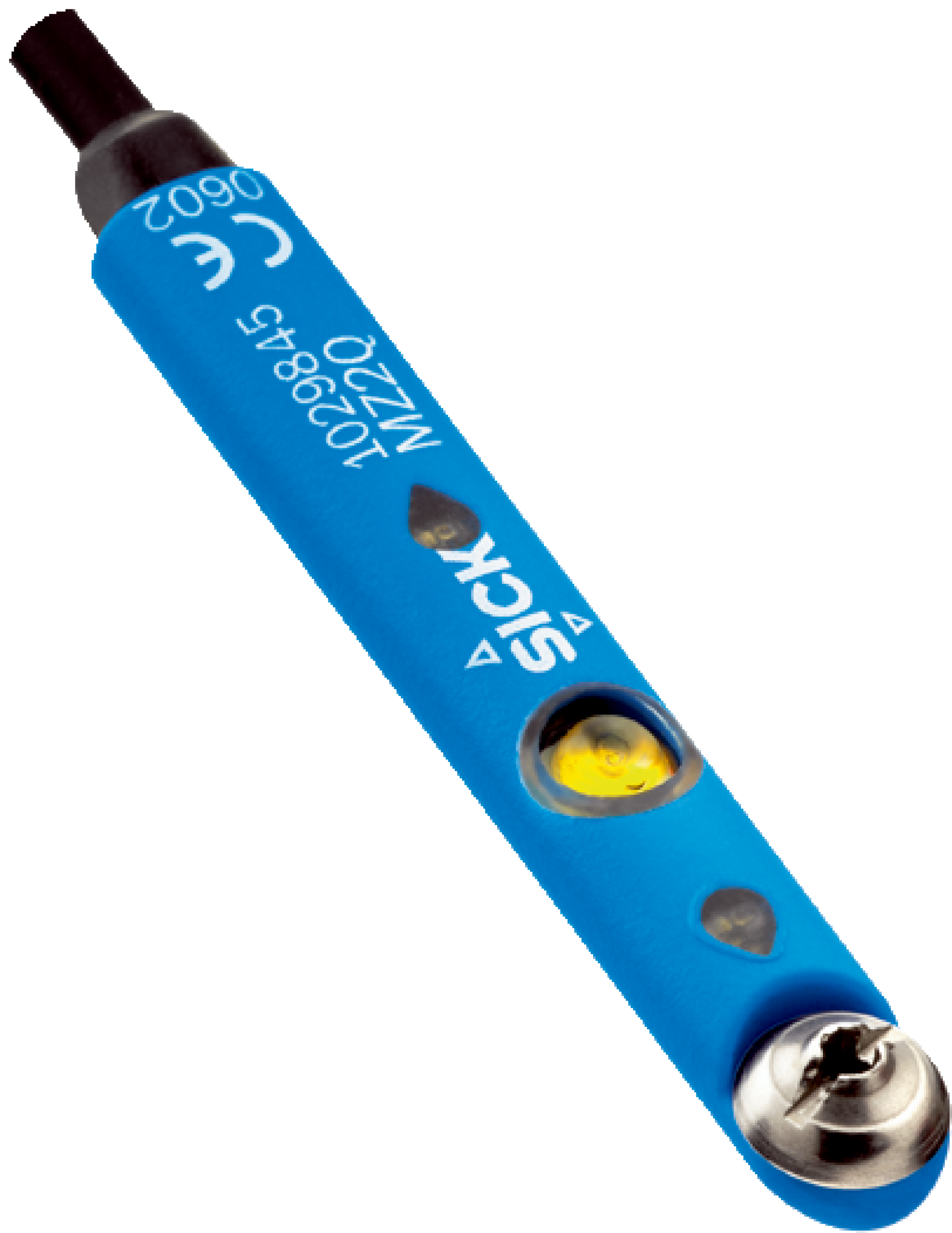

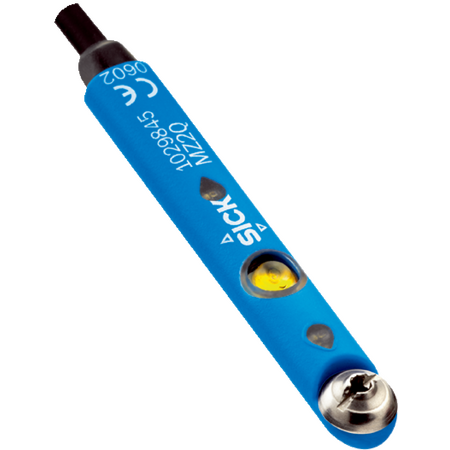

The SICK MZ2Q-FTZPS-KP0 Cylinder Sensor is a robust T-slot sensor designed for precise detection within 0 to 50 mm range, featuring IP67 protection and versatile compatibility with various cylinder types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MZ2Q-FTZPS-KP0 | Cylinder sensors
Brand: SICK
SKU: 1029846
Alternatively Known As: Cylinder position sensor, T-slot cylinder sensor, Proximity sensor for cylinders, PNP output cylinder sensor
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 25 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typically 1 mT
- Reproducibility: ≤ 0.1 mT
- Operating temperature range: -20 °C to +75 °C
- Connection type: Cable with M8 male connector, 4-pin, 0.3 m
- Cable diameter: Ø 2.6 mm
- Material: Plastic housing, PUR cable
- EMC compliance: According to EN 60947-5-2
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with 2 x N/O contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable with M8 male connector, 4-pin, 0.3 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for position detection
- Use with profile, tie rod, round body, dovetail groove cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low power consumption (typ. 25 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MZ2Q-FTZPS-KP0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
