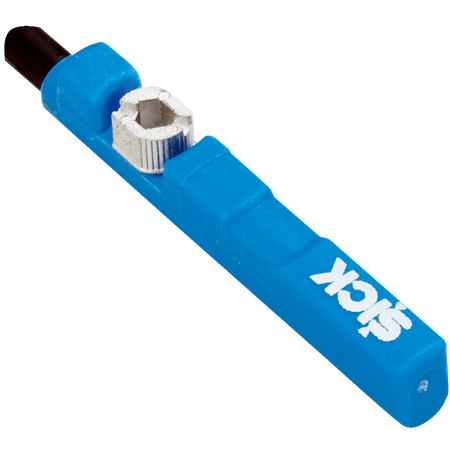

MZC1-2V2PS-KRDS02 Cylinder sensors

BRAND: SICK
SKU: 1068563
$162.20 List price: $203.80
+ −
30 Days Return Electricians Unlock Trade Access

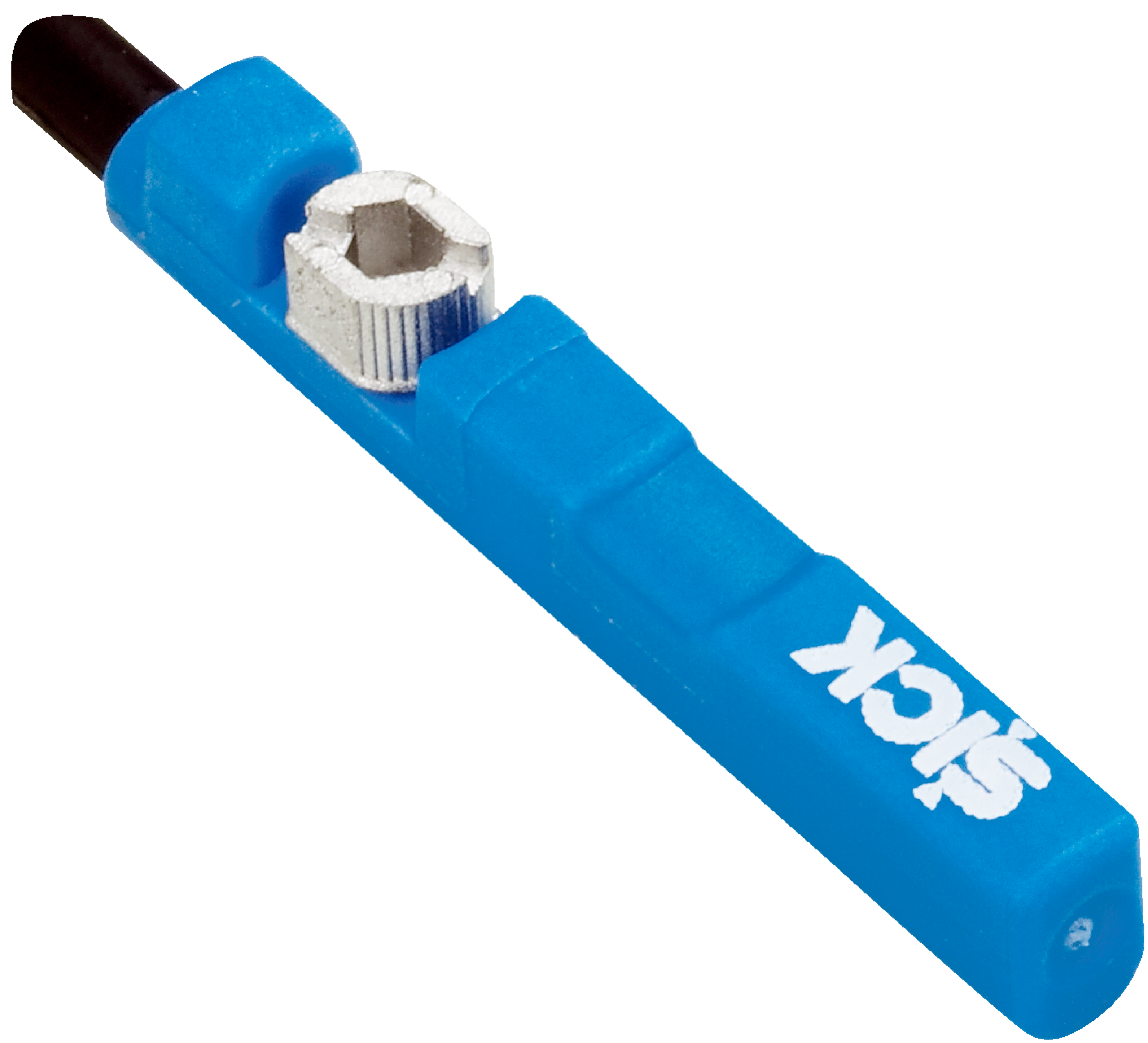

The SICK MZC1-2V2PS-KRDS02 is a robust C-slot cylinder sensor with PNP output, designed for reliable position detection in pneumatic cylinders with IP68 protection

Product Name/Title: MZC1-2V2PS-KRDS02 | Cylinder sensors

Brand: SICK

SKU: 1068563

Alternatively Known As: Cylinder position sensor, C-slot sensor, pneumatic cylinder sensor, SICK cylinder sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Power consumption: 8 mA without load
  • Voltage drop: ≤ 2.5 V
  • Continuous current Ia: ≤ 100 mA
  • Response sensitivity: 2.2 mT typical
  • Overrun distance: 4 mm typical
  • Hysteresis: ≤ 0.8 mT typical
  • Reproducibility: ≤ 0.1 mT
  • Protection class: III
  • Operating temperature range: -30 °C to +80 °C
  • Connection: Cable with M8 3-pin plug, 1 m length
  • Material: Plastic housing, PUR cable
  • EMC compliant according to EN 60947-5-2
  • Dimensions (H x L x W): 10mm x 24mm x 10mm
  • Weight: 0.1 kg
Key Features
  • C-slot cylinder type compatible with SMC rail CDQ2, ECDQ2, round body, profile, and tie-rod cylinders
  • PNP switching output with normally open (NO) function
  • High switching frequency of 1,000 Hz
  • Enclosure rating IP68 for dust and water protection
  • Status indicator LED for operational feedback
  • Reverse polarity, short-circuit, and power-up pulse protection
  • Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
  • Cable with M8 3-pin plug, 1 m length, suitable for drag chain use
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
  • Industrial automation for cylinder position sensing
  • Pneumatic cylinder monitoring
  • Manufacturing process control
  • Robotics and assembly lines
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Low power consumption of 8 mA without load
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK MZC1-2V2PS-KRDS02 cylinder sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder applications.
