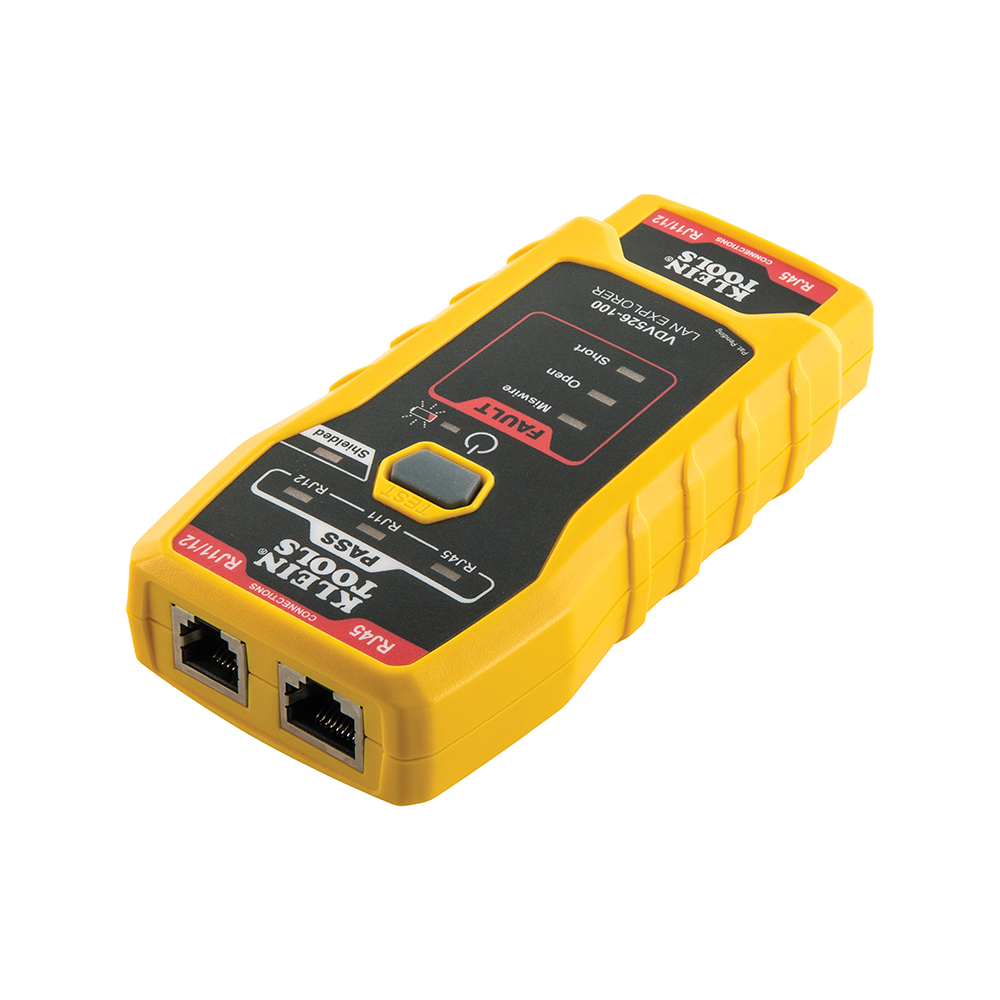

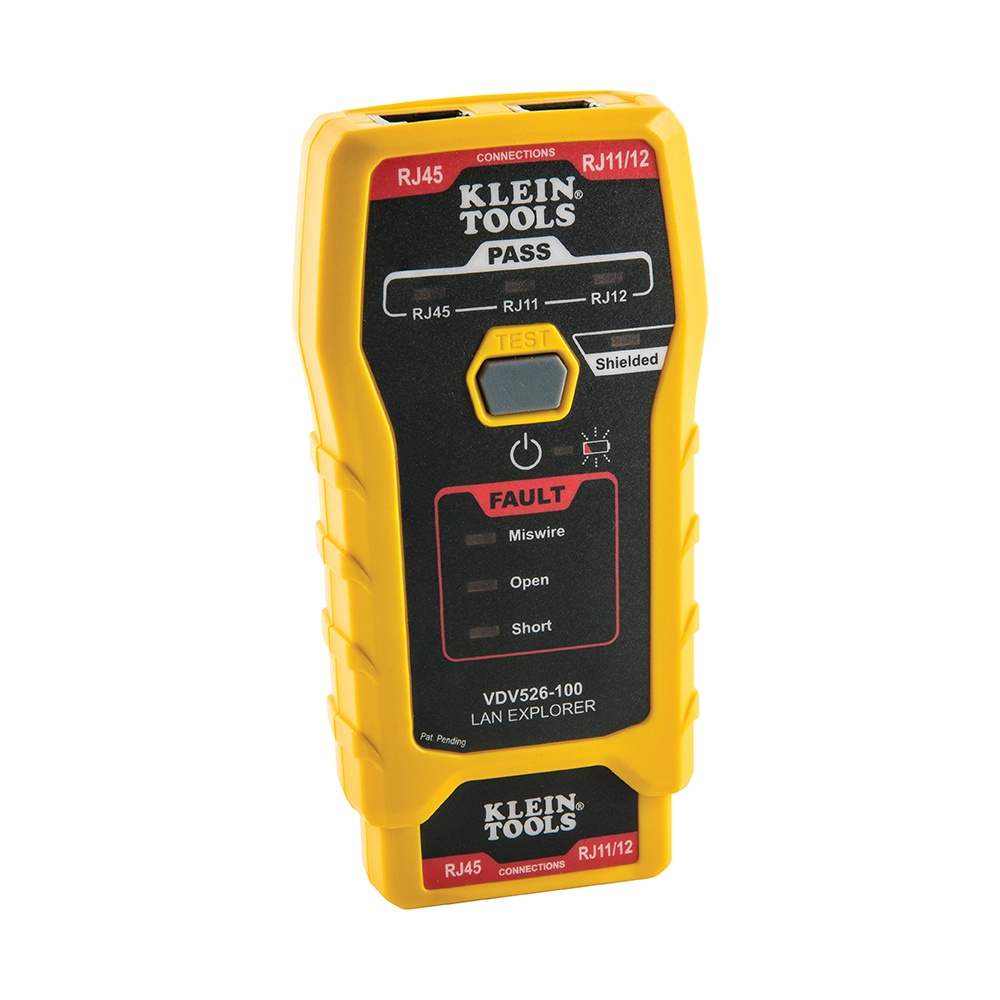

Network Cable Tester | LAN Explorer™ with Remote | Tests CAT3, CAT5e, CAT6/6A | Up to 1000' Distance | by Wattmaster
The Network Cable Tester is designed for testing RJ11, RJ12, and RJ45 terminated voice and data cables, making it ideal for network installation and maintenance professionals. With the ability to test CAT3, CAT5e, and CAT6/6A cables up to 1000' (305 m), this compact device features fast LED indicators for cable status and a remote tester that stores securely in the main unit. Its auto power-off feature conserves battery life, ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Network Cable Tester | LAN Explorer™ with Remote | Tests CAT3, CAT5e, CAT6/6A | Up to 1000' Distance | by Wattmaster
Brand: Wattmaster
SKU: A-VDV526-100
Alternatively Known As: LAN Cable Tester, Network Cable Tester with Remote, RJ45 Cable Tester, Data Cable Tester, Voice Cable Tester
Technical Specifications
- Cable Types: CAT3, CAT5e, CAT6/6A
- Test Distance: Up to 1000' (305 m)

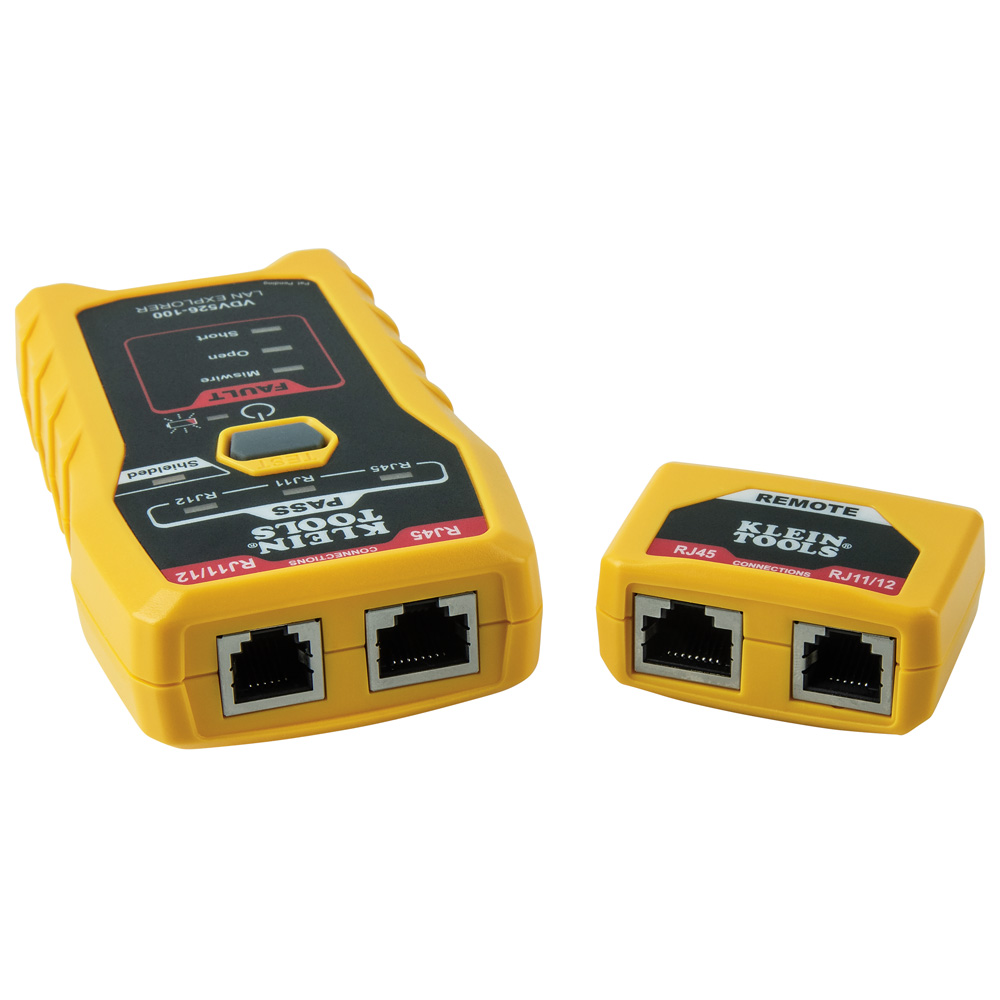

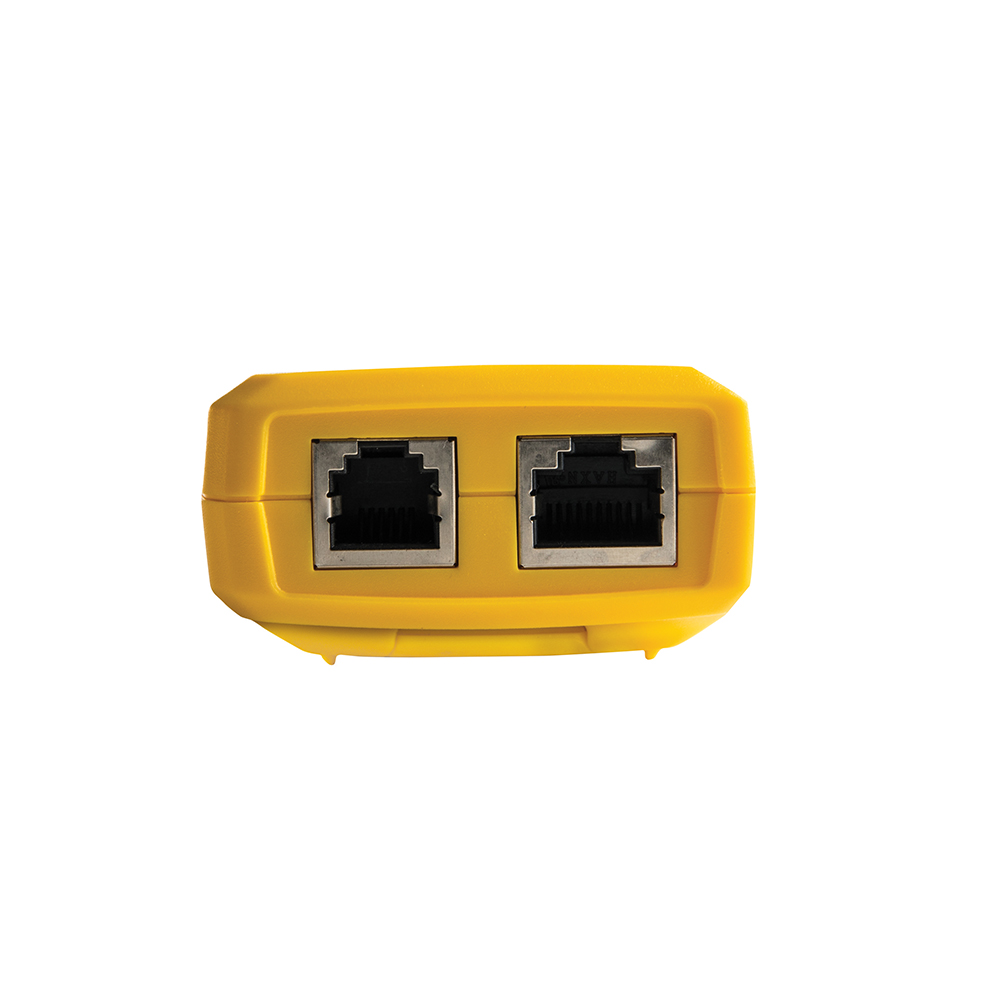

- Connection Types: RJ11, RJ12, RJ45
- Display: LED indicators
- Battery: 1 x 9V (included)
- Battery Life: 80 hours active, 3.5 years standby
- Material: Plastic and stamped metal
- Drop Protection: 2' (0.6 m)
- Faults Detected: Pass, Mis-Wire, Open-Fault, Short-Fault, Shield
- Dimensions (H x L x W): 32mm x 127mm x 64mm
- Weight: 0.116 kg

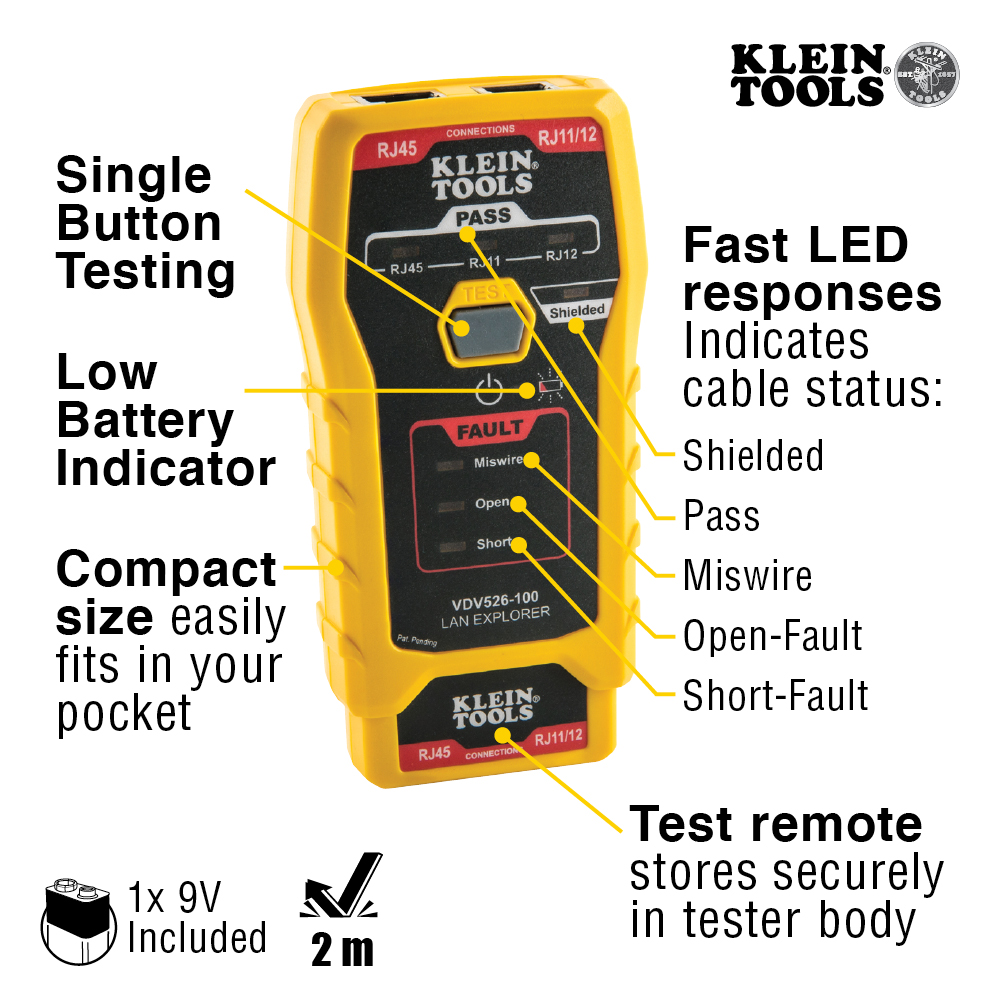

Key Features
- Single button testing for RJ11, RJ12, and RJ45 cables
- Tests CAT3, CAT5e, and CAT6/6A cables up to 1000' (305 m)
- Fast LED indicators for cable status: Pass, Mis-Wire, Open-Fault, Short-Fault, and Shield

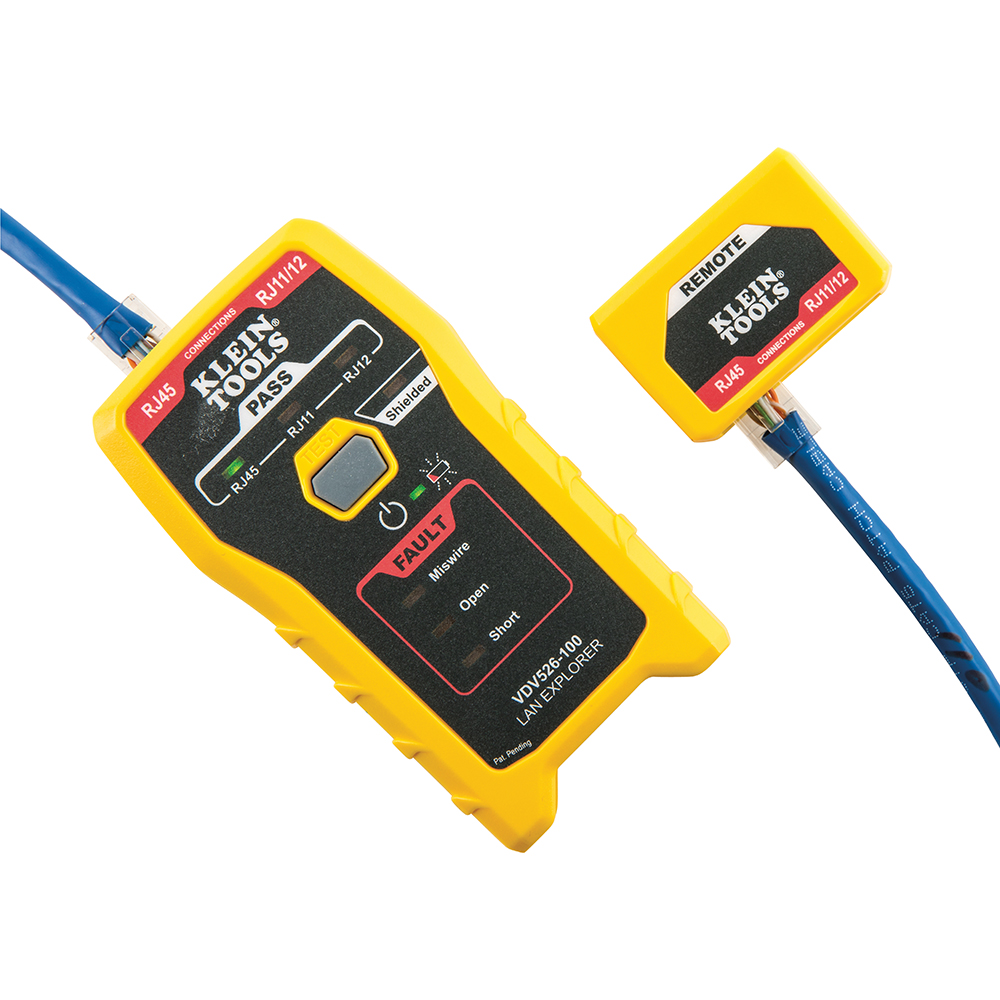

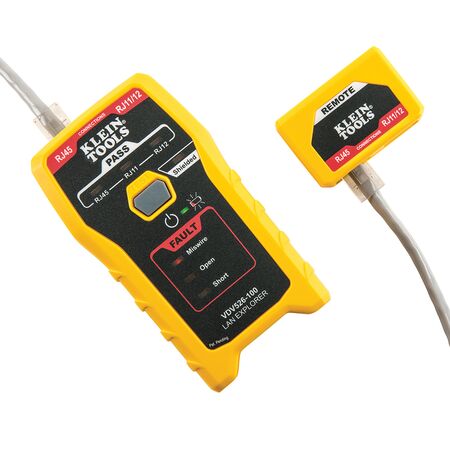

- Compact design with remote tester that stores securely in the main unit
- Auto Power-Off feature to conserve battery life
- Low-battery indicator included
- Includes 9V battery
- Drop protection up to 2' (0.6 m)
Professional Installation Requirements
- No professional installation required. Designed for use on unpowered cable systems only. Users should follow safety instructions and wear approved eye protection.
Applications

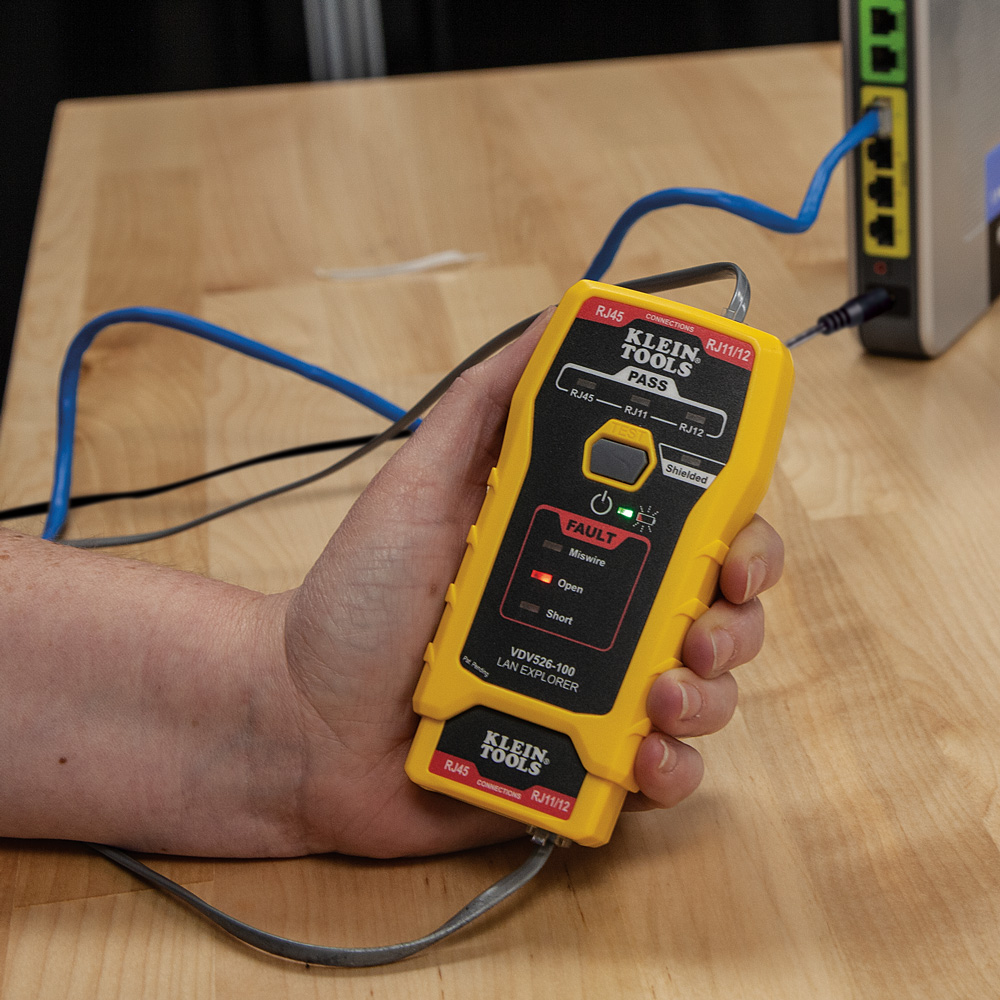

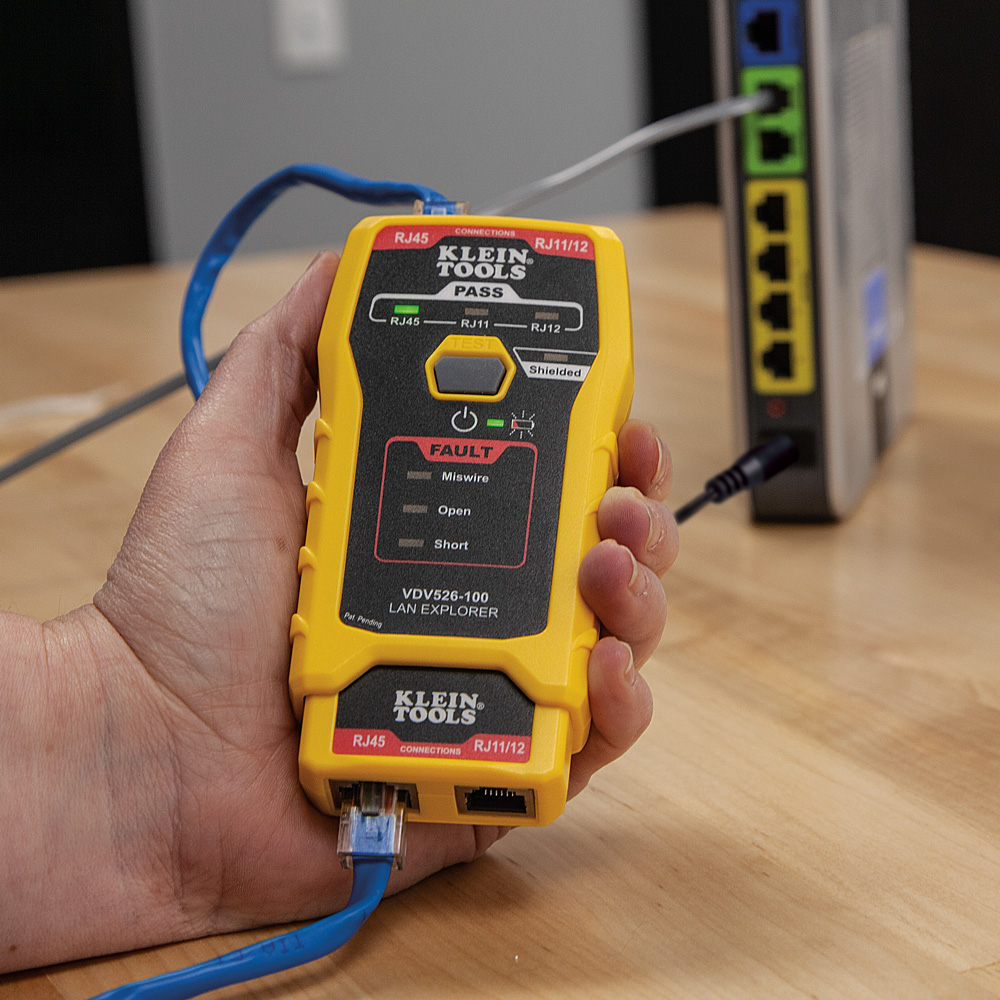

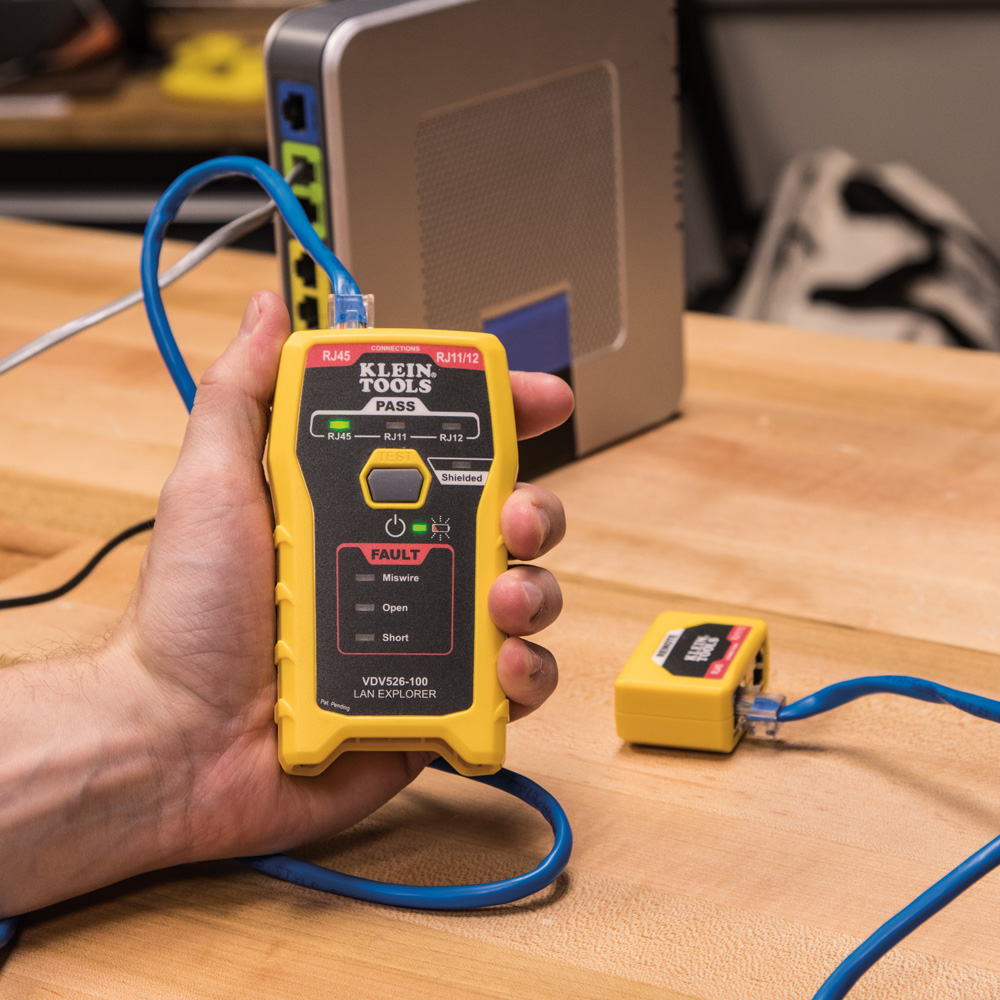

- Testing RJ11, RJ12, and RJ45 terminated voice and data cables
- Suitable for CAT3, CAT5e, CAT6/6A cable testing
- Ideal for network installation and maintenance professionals
- Testing cable faults such as miswires, open faults, short faults, and shield faults
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Auto Power-Off feature conserves battery life reducing waste
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster LAN Explorer™ Network Cable Tester with Remote is available for immediate purchase. Ideal for telecommunications, network installation, and maintenance professionals.
