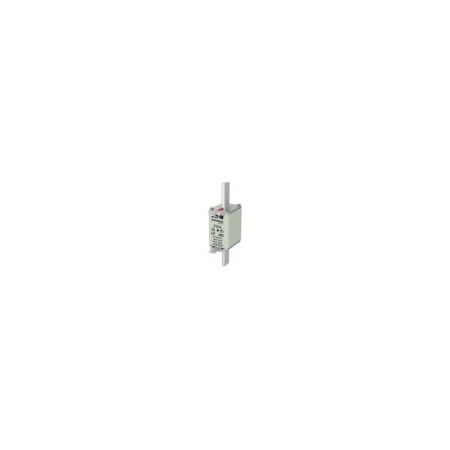

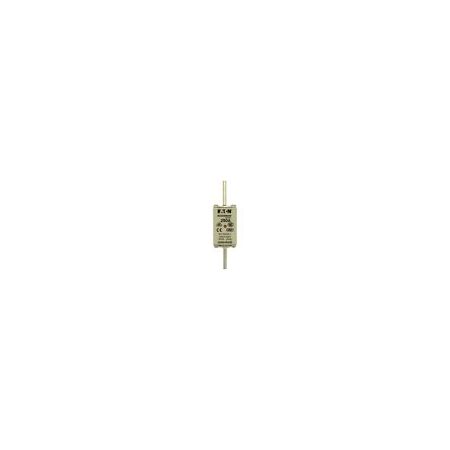

NH Fuse 250A 500V | 120 kA Breaking Capacity | Class gG/gL | Size 02 by Eaton
NH Fuse 250A 500V with a high breaking capacity of 120 kA and Class gG/gL rating—ideal for low voltage electrical protection in industrial and commercial systems. Built for reliable overload and short circuit protection, ensuring safety in switchboards and distribution panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 250A 500V | 120 kA Breaking Capacity | Class gG/gL | Size 02 by Eaton
Brand: Eaton
SKU: 250NHG02B
Alternatively Known As: NH Fuse 250 Amp 500 Volt, NH Size 2 Fuse, Low Voltage NH Fuse, Bussmann NH Fuse
Technical Specifications
- Amperage Rating: 250 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: Class gG/gL
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH02
- Insulated Metal Gripping Lugs: No
- Suitable for Microswitch BVL50
- Dimensions (H x L x W): 63mm x 150mm x 40mm
- Weight: 0.395 kg
Key Features
- Live gripping lug for secure connection
- Combination fuse status indicator for easy fuse condition monitoring
- Blade end connection with square-body and knife blade contact
- Class C gL/gG fuse providing general purpose protection
- High breaking capacity of 120 kA at 500 V AC
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Protection of transformers, motors, and cables from overload and short circuit
- Use in switchboards and distribution panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty against manufacturing defects applies.
Available Now
The Eaton NH Fuse 250A 500V GG/GL Size 02 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
