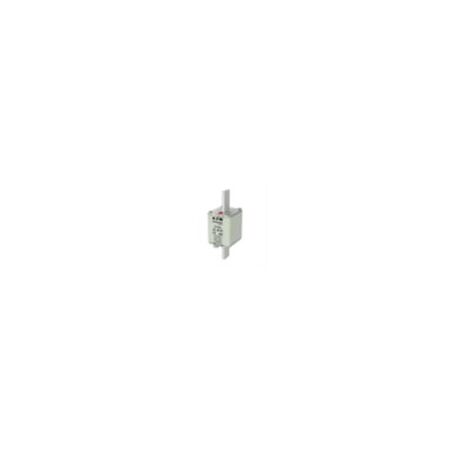

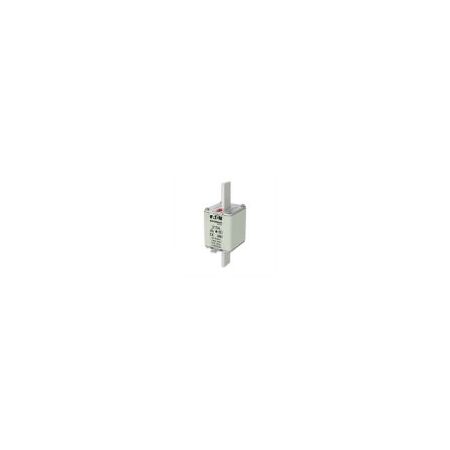

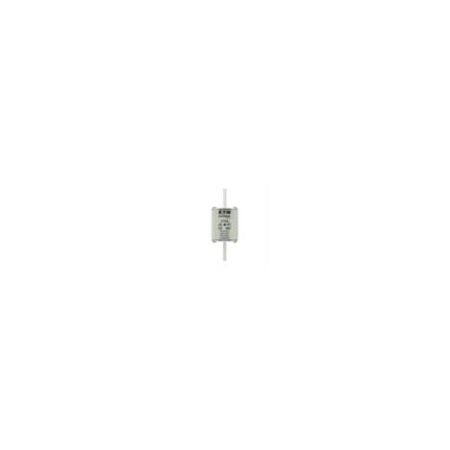

NH Fuse 315A 500V gG/gL Size 2 | 120 kA Breaking Capacity | Dual Indicator by Eaton

BRAND: Eaton
SKU: 315NHG2B
$25.00 List price: $31.20
+ −
30 Days Return Delivery Options
NH Fuse 315A with 500V rating and gG/gL class—ideal for low voltage electrical protection in industrial and commercial systems. Built for safety compliance, featuring a 120 kA breaking capacity and dual indicator for fuse status.

Product Name/Title: NH Fuse 315A 500V gG/gL Size 2 | 120 kA Breaking Capacity | Dual Indicator by Eaton

Brand: Eaton

SKU: 315NHG2B

Alternatively Known As: NH Fuse 315 Amp 500 Volt gG gL Size 2, Low Voltage NH Fuse 315A, Eaton Bussmann NH Fuse 315A

Technical Specifications
  • Amperage Rating: 315 A
  • Voltage Rating: 500 V AC
  • Fuse Size: NH2
  • Class: gG/gL
  • Breaking Capacity: 120 kA
  • Frequency Rating: 45 Hz to 62 Hz
  • Dual Indicator for fuse status
  • Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
  • Compliances: CE Marked, RoHS Compliant
  • Dimensions (H x L x W): 71mm x 150mm x 54mm
  • Weight: 0.659 kg
Key Features
  • Low voltage fuse-link with 315 A amperage rating
  • Voltage rating of 500 V AC
  • Class gG/gL fuse for general purpose protection
  • Breaking capacity of 120 kA
  • Dual indicator for fuse status
  • Complies with IEC 60269-1, IEC 60269-2, and DIN 43620 standards
  • CE Marked and RoHS Compliant
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse operation.
Applications
  • Low voltage electrical protection in industrial and commercial electrical systems
  • Use with SD2-D Single pole NH Fuse base
  • Compatible with Microswitch 170H0235 and 170H0236
  • Suitable for EBH Size 00 to 4 Horizontal fuse switch-disconnectors
  • Use with TD2-D Triple pole NH Fuse base
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS compliant, ensuring reduced hazardous substances
  • Durable design reduces waste through long service life
Warranty Information

Standard Eaton warranty against manufacturing defects applies.

Available Now

The Eaton NH Fuse 315A 500V GG/GL Size 2 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.

Product specifications (skuPage.315NHG2B.pdf, 53 Kb) [Download]
