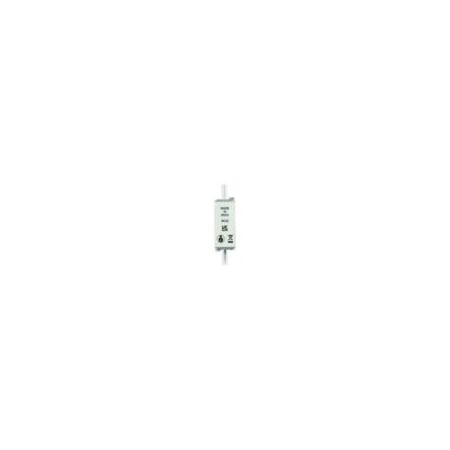

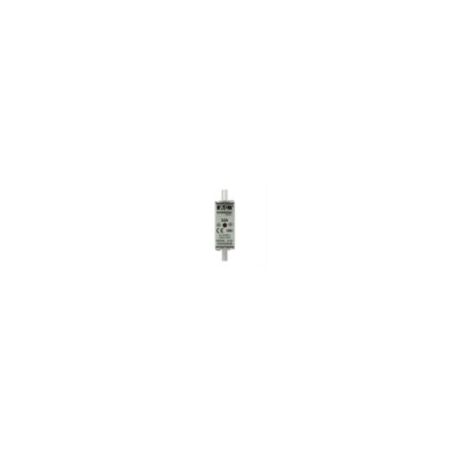

NH Fuse 32A 500V | 120 kA Breaking Capacity | Class gG/gL | Size 000 by Eaton
NH Fuse 32A 500V with a 120 kA breaking capacity and class gG/gL rating—ideal for low voltage electrical protection in industrial and commercial applications. Built for safety compliance, with a live gripping lug and combination fuse status indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 32A 500V | 120 kA Breaking Capacity | Class gG/gL | Size 000 by Eaton
Brand: Eaton
SKU: 32NHG000B
Alternatively Known As: NH Fuse 32A 500V, NH000 Fuse, Low Voltage NH Fuse, Eaton Bussmann NH Fuse
Technical Specifications
- Amperage Rating: 32 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: gG/gL
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH000
- Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
- Compliances: CE Marked, RoHS Compliant
- Product Weight: 119.333 g
- Product Dimensions: 79 mm length, 51 mm height, 21 mm width
- Dimensions (H x L x W): 51mm x 79mm x 21mm
- Weight: 0.12 kg
Key Features
- Live gripping lug
- Combination fuse status indicator
- Blade end connection
- Class gG/gL fuse
- Square-body with knife blade contact
- Breaking capacity of 120 kA
- Voltage rating of 500 V AC
- Amperage rating of 32 A
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse operation.
Applications
- Suitable for Microswitch 170H0236
- EBF Vertical fuse rail
- EBV Vertical fuse switch-disconnectors
- EBH Size 000 Horizontal fuse switch-disconnectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Eaton NH Fuse 32AMP 500V Size 000 GG MGL is available for immediate purchase, ideal for low voltage electrical protection in industrial and commercial applications.
