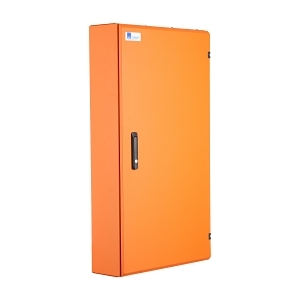

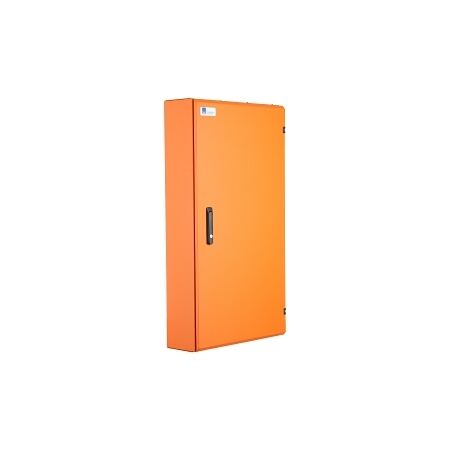

NHP Panelboard 84 Way | 250A Main Switch | IP42 Rated | Orange by NHP
NHP panelboard with 84 outgoing ways and a 250A main switch—ideal for industrial and commercial applications. Built for robust electrical distribution, with IP42 protection and durable steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard 1296mm IP42 DIN-T 84 Way 250A NC Chassis 250A Main Switch Orange
Brand: NHP
SKU: CPL84M250O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept Plus Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 1296mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- 84 outgoing ways for extensive circuit management.
- 250A main switch for high current applications.
- IP42 rating for protection against solid objects and limited water ingress.
- IK10 impact strength for durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any application requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard is available now for immediate purchase, ideal for commercial and industrial applications.
Non-Returnable & Non-Cancellable
